Proxim Stratum SX3-2020A-WD Point-to-Point Radio
- Throughput up to 1Gbps
- Wide Band Radio - 5.925 – 7.125 GHz
- Triple 1Gbps Ethernet with POE in and out
- AES 128-bit encryption is upgradeable to 256-bit
- 20, 40 and 80 MHz channels.
- Full tilt and swivel mounting kit included
- Two RP-SMA Connectors
.png)
Description

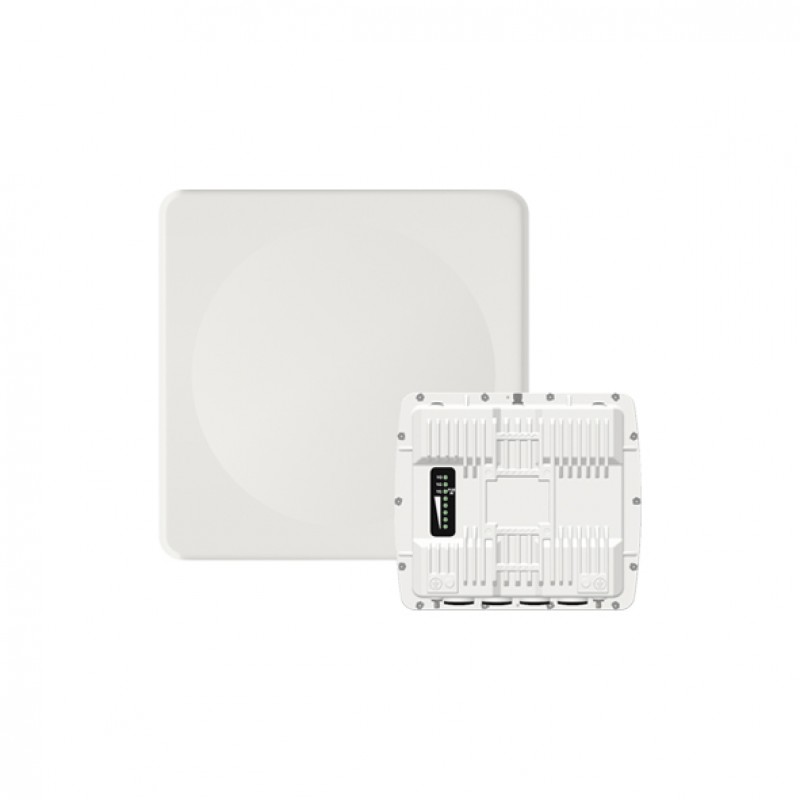

The Stratum X3 - 6GHz is a high-performance MIMO 2x2 point-to-point solution capable of throughput up to 1Gbps. It is an excellent long-range backhaul solution. Both integrated and external antenna options enable long-range, high-capacity secure over-the-air Ethernet transmission. Stratum X3 uses an IP67-rated metal enclosure to ensure
years of reliable service in harsh environments, including high winds, high
salt, and temperature extremes.
Model SX3-2020A is a connectorized unit designed for external dual-polarity antennas where specific antenna patterns or gain
adjustments are needed.
You can also find the Stratum SX3-2021A model in the Stratum™ X3.
Experience the convenient way to purchase the Proxim Stratum SX3-2020A-WD Point-to-Point Radio in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interfaces | |
|---|---|
| Wired Ethernet | One auto MDI-X RJ45 1 Gbps Ethernet with PoE in, One auto MDI-X RJ45 1 Gbps Ethernet with PoE out, One auto MDI-X RJ45 1 Gbps Ethernet |
| Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
| Radio Specifications | |
| MIMO | 2x2:2 |
| Modulation | OFDM BPSK-QAM1024 |
| Frequency | 5.925 - 7.125 GHz (Subject to Country Regulations) |
| Channel Size | 20, 40 and 80 MHz (80+80 and 160 MHz via future upgrade) |
| TX Power | Up to 25 dBm (dual chain) |
| TX Power Control | 0 - 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
| Other | Dynamic Channel Selection (DCS) based on interference detection, Automatic Transmit Power Control (ATPC) with EIRP limit support |
| Antenna | |
| Antenna Type | Two RP-SMA Connectors |
| Management | |
| Remote | Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3 |
| Bluetooth Low Energy | Proxim BlueConnect™ |
| Multi-Language Support | Web Interface available in English, French, Spanish and Chinese |
| Other | Syslog, SNTP and local time, Spectrum analyzer |
| Security | |
| Encryption | AES 128 (AES 256 via license upgrade) |
| Authentication | Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning) |
| Network | |
| Modes | Bridging, (Routing to be added by future firmware update) |
| IP Stack | IPv4 and IPv6 simultaneously |
| VLAN | 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging |
| Power Requirement | |
| Power Consumption | 14 to 17 W max in MIMO 2x2 mode |
| Power Supply | 802.3at compliant |
| Physical Characteristics | |
| Temperature | OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit) |
| Humidity | 100% relative humidity |
| IP Rating | IP67 |
| Dimensions Packaged | 15.27 x 13.62 x 16.85 in (388 x 346 x 428 mm) |
| Dimensions Unpackaged | 9.84 x 8.66 x 2.44 in (250 x 220 x 62 mm) |
| Weight (PACKAGED) | 22.04 lbs (10.0 Kg) |
| Weight (UNPACKAGED) | 3.53 lbs (1.6 Kg) |
| Standards and Certifications | USA: EMC/EMI: CFR47, FCC part 15, Subpart B (class A) (Pending), Bluetooth: FCC Part 15 Subpart C 15.247,15.205, 15.207 & 15.209 (Pending); CANADA: EMC/EMI: ICES-003 issue 7:2020 (class A) (Pending), Bluetooth: RSS-247 issue 3 & RSS Gen Issue 5 (Pending); EUROPE: EMC/EMI: EN 55032:2015+A1:2020, EN 55035:2017+A11:2020 (Pending); UK: EMC/EMI: BS EN 55032:2015+A1:2020, BS EN 55035:2017+A11:2020 (Pending) |
| Safety | IEC 62368-1:2018 (Pending), EN IEC 62368-1:2020+A11:2020 (Pending), BS EN IEC 62368-1:2020+A11:2020 (Pending), 68-1:2019, CSA C22.2 No. 62368-1:19 (Pending) |
| Wind Loading | 180 km/h (112.5 mph) |
| General | |
| MTBF | 450000 hours, 2-year warranty, ServPak Extended Support available |
| Package Checklist | |
| Package Contents | One Stratum SX3-2020A unit with two RP-SMA connectors, One RP-SMA weatherproofing caps, Two M25 weatherproofing cable glands, One power injector and country-specific power cord, One full axis mounting kit, One Grounding kit, One Quick Installation Guide |
