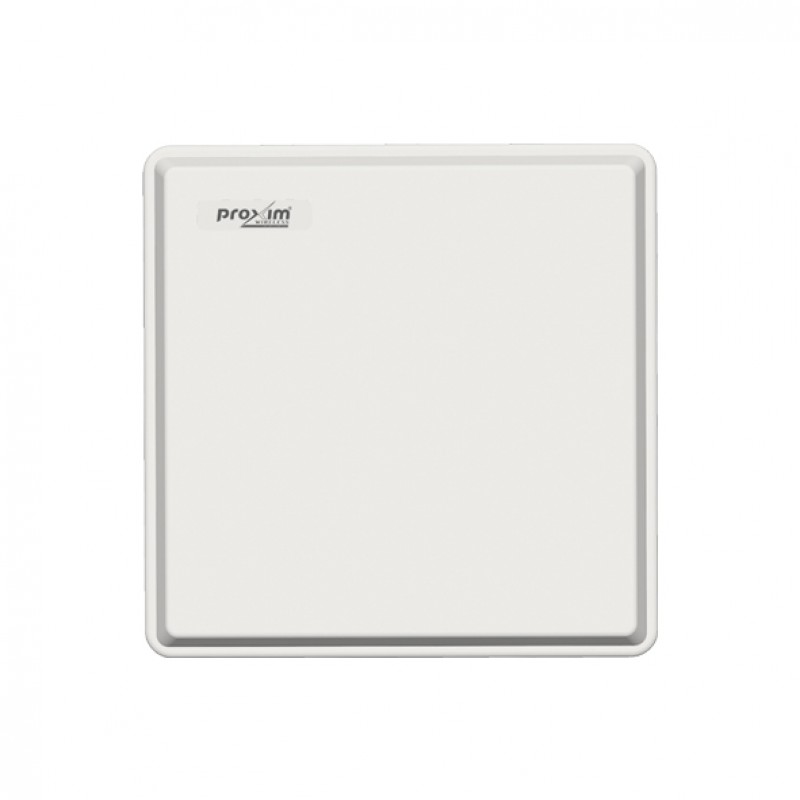

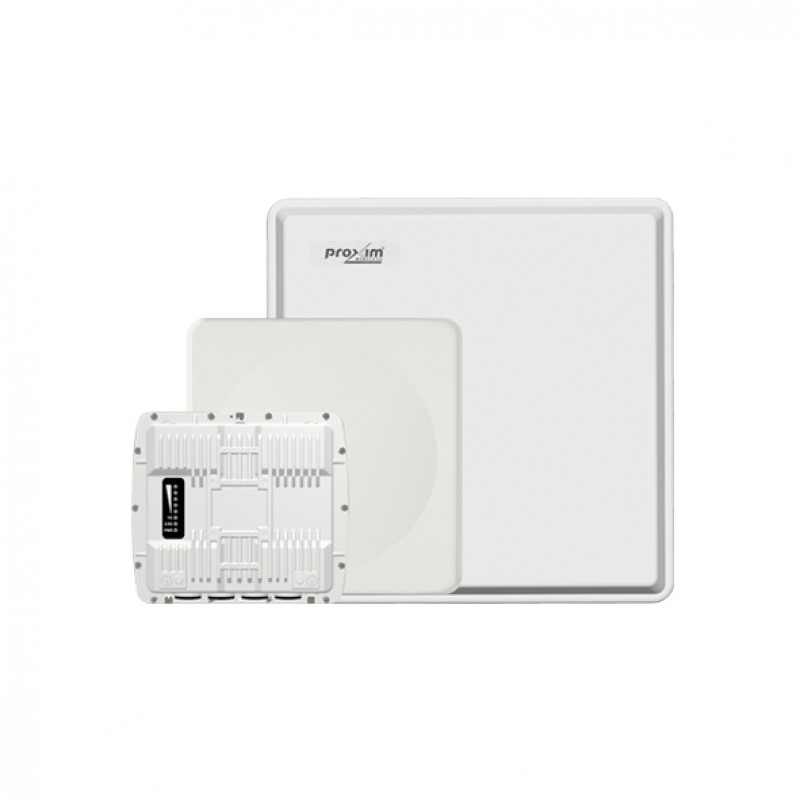

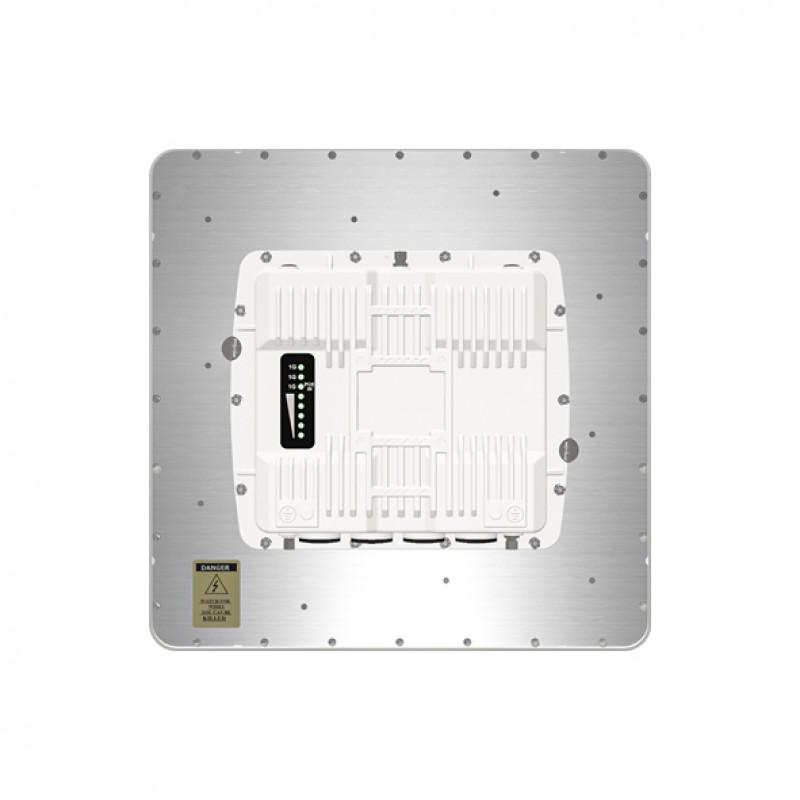

Proxim Stratum SX3-1029B-WD Point-to-Point Radio

Proxim Stratum SX3-1029B-WD Point-to-Point Radio
Proxim Stratum SX3-1029B-WD Point-to-Point Radio
Proxim Stratum SX3-1029B-WD Point-to-Point Radio
Proxim Stratum SX3-1029B-WD Point-to-Point Radio
Proxim Stratum SX3-1029B-WD Point-to-Point Radio
Proxim Stratum SX3-1029B-WD Point-to-Point Radio
Proxim Stratum SX3-1029B-WD Point-to-Point Radio

  • 5 GHz Base Station with 64 client licenses, PN: 906-00032
  • Capable of throughput up to 1 Gbps
  • Wide Band Radio - 5.150 – 5.850 GHz
  • Triple 1Gbps Ethernet with POE in and out (RJ45 connector)
  • AES 128-bit encryption is upgradeable to 256-bit
  • Full tilt and swivel mounting kit included
  • Integrated 2x2 MIMO 16 dBi dual-polarized 90-degree Sector Antenna
  • IP67-rated metal enclosures and operate from -40º to + 60º

  • Brand: PROXIM
  • Model: Stratum SX3-1029B-WD
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 60°C)
  • Relative Humidity (100% relative humidity)
  • IP protection (IP67)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Proxim Tsunami QB-10100-LNK-100-WD Point-to-Point Radio
Quickview
Proxim Tsunami QB-10100-LNK-100-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Tsunami QB-10150L-LNK-WD Point-to-Point Radio
Quickview
Proxim Tsunami QB-10150L-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Tsunami QB-10150S-LNK-US Point-to-Point Radio
Quickview
Proxim Tsunami QB-10150S-LNK-US Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1025-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1025-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1066-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1066-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Stratum SX1-1023C-WD Point-to-Point Radio
Quickview
Proxim Stratum SX1-1023C-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Point-to-Point Radios , Stratum X3 – 5GHz Series , Stratum X3 Series , Wireless Communications , Wireless Radios , Radios

The Stratum X3 - 5GHz is a highly efficient and secure MIMO 2x2 outdoor wireless solution capable of throughput up to 1 Gbps.

Advanced Interference Management

To achieve peak performance in challenging RF environments characterized by dense unlicensed radio usage and significant interference, the Stratum X3–5GHz utilizes our highly efficient WORP® (Wireless Outdoor Router Protocol). Proxim ClearConnect®, a crucial component of WORP®, provides effective interference management.

Security

Over-the-air transmission is secured via 128-bit AES encryption, with an option to upgrade to 256-bit when ultra-high security is desired.

Rugged Reliability

Stratum X3 features a robust IP67-rated metal enclosure designed to provide dependable performance over many years, even in severe conditions including strong winds, high salt exposure, and extreme temperatures.

Proxim WORP®

WORP® is a dynamic, asynchronous protocol designed to optimize the performance of outdoor wireless point-to-point and point-to-multipoint wireless links. WORP’s asynchronous nature allows the uplink and downlink to adapt to network traffic demands dynamically.



You can also find the Stratum SX3-1021A-WD and Stratum SX3-1020A-WD models in the Stratum™ X3.



Experience the convenient way to purchase the Proxim Stratum SX3-1029B-WD Point-to-Point Radio in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

Wireless Radio : Interfaces
Ethernet-
Wired EthernetOne auto MDI-X RJ45 1 Gbps Ethernet with PoE in, One auto MDI-X RJ45 1 Gbps Ethernet with PoE out, One auto MDI-X RJ45 1 Gbps Ethernet
Wireless ProtocolWORP® (Wireless Outdoor Router Protocol)
Extension-
Management-
Wireless Radio : Radio Specifications
Radio TypePoint-to-Point
MIMO2x2:2
ModulationOFDM BPSK-QAM1024
Frequency5.150 - 5.850 GHz (Subject to Country Regulations)
Channel Size20, 40 and 80 MHz (160 MHz via future upgrade)
Data Rate-
TX PowerUp to 27 dBm (dual chain)
TX Power Control0 - 24 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Throughput20 MHz: 223 Mbps, 40 MHz: 435 Mbps; 80 MHz: 755 Mbps
OtherDynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Wireless Radio : Antenna
Antenna TypeIntegrated 2x2 MIMO 16 dBi dual Polarized 90 degree Sector Antenna
Beam Width-
Receive Gain-
Transmit Gain-
Wireless Radio : Network
ModesBridging, Routing
IP StackIPv4 and IPv6 simultaneously
Latency-
VLAN802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Gateway FeaturesDHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
Wireless Radio : Management
RemoteTelnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3
SNMP-
Bluetooth Low EnergyProxim BlueConnect™
Multi-Language SupportWeb Interface available in English, French, Spanish and Chinese
OtherSyslog, SNTP and local time, Spectrum analyzer
Wireless Radio : Security
EncryptionAES 128 (AES 256 via license upgrade)
AuthenticationInternal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
802.1X Support-
Wireless Radio : Wireless
AP-AP Communications-
RF EnvironmentSupported
Other-
Wireless Radio : General
MTBF>450 000 hours, 2-year warranty, ServPak Extended Support available.
Wireless Radio : Power Requirement
Input Power-
Output Power-
Power Consumption14 to 17 W max in MIMO 2x2 mode
Power Standards802.3at compliant
Wireless Radio : Physical Characteristics
TemperatureOPERATING: -40º to 60ºC, -40º to 140º Fahrenheit; STORAGE: -50º to 70ºC, -58º to 158º Fahrenheit
Humidity100% relative humidity
IP RatingIP67
Dimensions Packaged415 x 415 x 485 mm (16.34 x 16.34 x 16.85 in)
Dimensions Unpackaged371 x 371 x 97 mm (14.60 x 14.60 x 3.82 in)
Weight (PACKAGED)13.8 kg (30.42 lbs)
Weight (UNPACKAGED)3.0 kg (6.61 lbs)
Standards and CertificationsUSA: EMC/EMI: CFR47, FCC part 15, Subpart B (class A), Bluetooth: FCC Part 15 Subpart C 15.247,15.205, 15.207 & 15.209, UNII 1 and 3: FCC part 15, Subpart C 15.247, 15.205, 15.207 & 15.209, Subpart E 15.407, UNII 2A and 2C: FCC part 15, subpart E 15.407, 15.247, 15.205, 15.207 & 15.209 (Pending); CANADA: EMC/EMI: ICES-003 issue 7:2020 (class A), Bluetooth: RSS-247 issue 3 & RSS Gen Issue 5, UNII 3: RSS-247 issue 3 & RSS Gen Issue 5, UNII 2A and 2C: RSS-247 issue 3 & RSS Gen Issue 5 (Pending); EUROPE: EMC/EMI: EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, RED: EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 300 328, EN 301 893, EN 302 502, EN 303 413; UK: EMC/EMI: BS EN 55032:2015+A1:2020, BS EN 55035:2017+A11:2020, UKCA: EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 300 328, EN 301 893, EN 302 502, EN 303 413
SafetyIEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, BS EN IEC 62368-1:2020+A11:2020, UL 62368-1:2019, CSA C22.2 No. 62368-1:19
Wind Loading180 km/h (112.5 mph)
Wireless Radio : Standards and Protocols
Synchronization-
Wireless Radio : Package Checklist
Package ContentsOne Stratum SX3-1020A unit with two RP-SMA connectors or One Stratum SX3-1021A with integrated antenna plus two RP-SMA connectors or One Stratum SX3-1029B with integrated antenna, One (SX3-1020A, SX3-1029B) or Three (SX3-1021A) RP-SMA weather proofing caps, Two M25 weather proofing cable glands, One power injector and country specific power cord, One full axis mounting kit, One Grounding kit, One Quick Installation Guide
