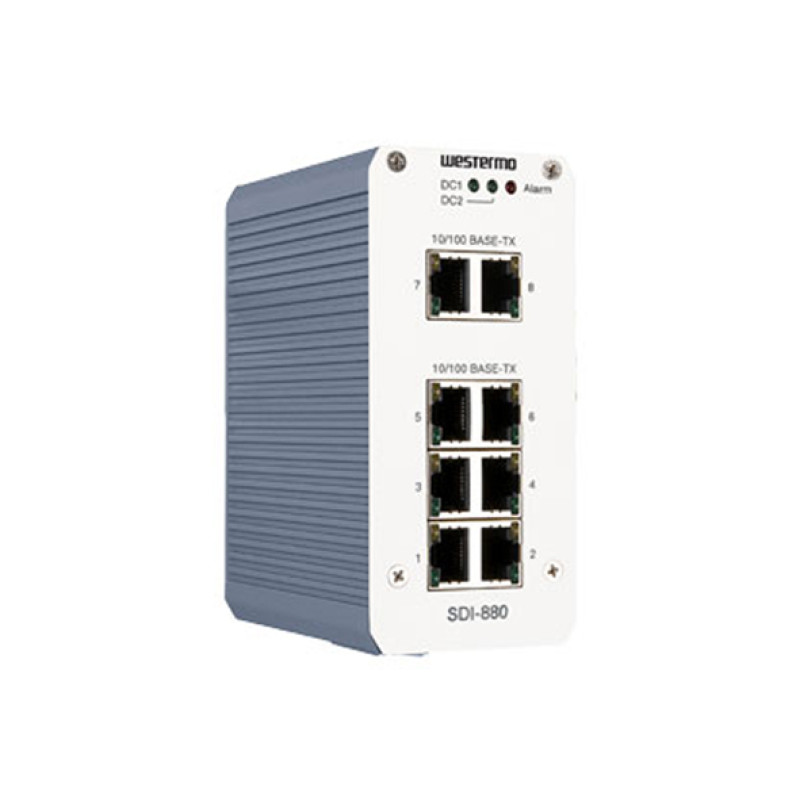

Westermo SDI-880 Unmanaged Ethernet Switch
- 8x 10/100 Base T ports
- Unmanaged 8-port Ethernet Switch
- Brand: WESTERMO
- Product Code: SDI-880
.png)
Description
The SDI-880 is a simple and cost-effective unmanaged switch suitable for use in a wide range of factory and building automation applications. A high-speed switch core ensures full speed on all ports and transparency to any Ethernet protocol.
The unit is designed for DIN rail mounting into industrial cabinets allowing simple Ethernet connections to be established between PLCs, I/O units, drives, inverters, and HMIs.
The highly industrial design with robust aluminum housing, strong EMC, and wide temperature range, combined with features like redundant power supply, Quality of Service, and fault relay, make the SDI-880 an ideal component in automation solutions.
The SDI-880 is easy to use, simply connect power to the screw terminals and plug in your RJ-45 cables. If you plan to use the fault contacts a DIP switch allows configuration whilst LEDs provide simple diagnostics. A broadcast storm filter helps out if a loop is created by mistake.
Enjoy the ease of online inquiries for
the Westermo SDI-880 Unmanaged Ethernet Switch. You can submit your inquiry on our website and get the most friendly
communication with our experts to choose high-quality industrial automation
products at a reasonable price from our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24V DC, 0.125A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | - |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | Unmanaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 55x120x108mm |
| Housing | Aluminum |
| Installation | Din-rail |
| Operating Temperature | -25 ° C to 70 ° C |
| Operation Humidity | - |
| Standards and Certifications | IP-31, FCC Part 15 Class A, EN55022, EN50121-4, EN 61000-6-2, EN 61000-6-4 |
| Storage Humidity | - |
| Storage Temperature | -40 ° C to 85 ° C |
| Weight | 0.5Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
