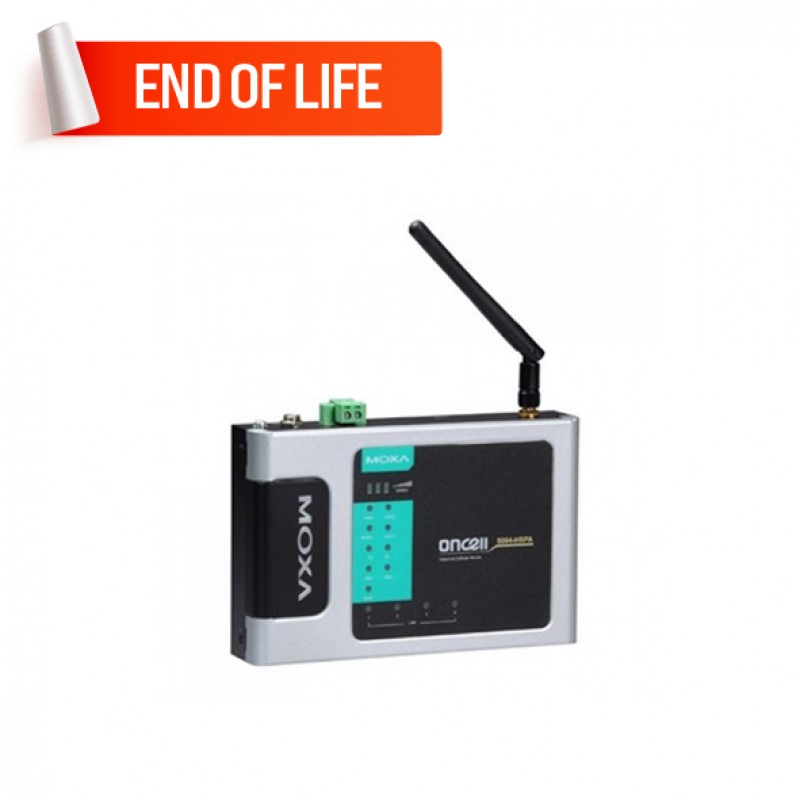

MOXA OnCell 5004-HSPA Industrial Cellular Router
- Supports GSM/GPRS/EDGE/UMTS/HSPA Standards
- 5 x 10/100 Mbps ports (RJ45 connector)
- IP30-rated Aluminum body design
- 12 to 48 VDC Redundant dual power inputs
- DIN rail and wall-mountable
- -30 to 55°C operating temperature
- Brand: MOXA
- Product Code: OnCell 5004-HSPA
.png)
Description
The OnCell 5004/5104-HSPA series are high-performance
industrial-grade cellular routers that allow up to 4 Ethernet-based devices to
simultaneously use a single cellular data account for primary or backup network
connectivity to remote sites and devices. Both products provide the
functionality of a cellular router, firewall, and switch in one device, and to
ensure zero data loss and on-demand cellular communication, the OnCell
5004/5104-HSPA is integrated with the GuaranLink function. The difference between
the OnCell 5004- HSPA and OnCell 5104-HSPA is that the OnCell 5104-HSPA comes
with a built-in relay output that can be configured to indicate the priority of
events when notifying or warning engineers in the field, and the two digital
inputs allow you to connect basic I/O devices, such as sensors, to the cellular
network. The OnCell 5004-HSPA can be placed on a desktop or wall-mounted,
whereas the OnCell 5104-HSPA has an IA design and can be attached to a DIN
rail. Both products use 12 to 48 VDC power inputs with a screw-on design for
greater reliability, and the Ethernet ports come with 1.5 kV magnetic isolation
protection to keep your system safe from unexpected electrical discharges.
End of Life Product - Replacement Available
Please note that the OnCell 5004/5104-HSPA Series has been phased out and replaced by the OnCell G4302-LTE4 Series.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA OnCell 5004-HSPA Industrial Cellular Router through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 slots (3 V) |
| Ethernet Ports | : 5 x 10/100 Mbps ports (RJ45 connector) |
| USB | |
| Digital Input and Output | : 2 electrically isolated inputs (+13 to +30 V for state “1” (On), +3 to -30 V for state “0” (Off)) |
| Serial port | |
| Alert Output | : 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Band Options | Five-band UMTS/HSPA 800/850/AWS/1900/2100 MHz, Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz |
| Cellular Standards | GSM/GPRS/EDGE/UMTS/HSPA |
| Cellular Antenna Connectors | Rubber SMA |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | GuaranLink |
| Maximum data transfer speed of 2G | EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6 kbps |
| Maximum data transfer speed of 3G | 14.4 Mbps download speed, 5.76 Mbps upload speed |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | IPsec VPN |
| Firewall | NAT, port forwarding, WAN IP filtering, static route |
| Time Management | |
| Management | Utilities: OnCell Search Utility; Configuration and Management Options: SNMP v1/v2c/v3, Web/ Telnet/Serial Console, SSH, Remote SMS Control, Auto IP Report; Private IP Solution: OnCell Central Manager |
| General | |
| LED Indicators | - |
| MTBF | 441,000 hrs |
| Operating mode | Router, 3G Modem |
| Standards and protocols | |
| Protocols | ARP, DDNS, DHCP/BOOTP, DNS Relay, HTTP, HTTPS, ICMP, IPSec, PPP, PPPoE, SMTP, SNTP, SSL, TCP/IP, Telnet, UDP |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | HTTPS/SSL, IPsec, SSH |
| Authentication | Local user-name and password |
| Power Requirements | |
| Power Connector | 1 terminal block, 1 power jack |
| Power Consumption (Output Adapter) | 12 to 48 VDC, 400 mA (idle), 900 mA (max.) |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| POE Support | |
| Input Current | - |
| Reverse Polarity Protection | - |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN rail and wall mouniting |
| Dimensions | 158 x 103 x 34 mm (6.22 x 4.06 x 1.34 in) |
| Housing | Aluminum |
| Weight | 505±5 g |
| Operating Temperature | -30 to 55°C (-22 to 131°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety: UL 60950-1; EMC: FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 55024; Radio: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908; IP30 |
