Description
The DA-820-Ethernet expansion modules, with a choice of Fiber LAN ports and PRP/HSR communication redundancy ports, provide superior flexibility for industrial applications. The 2/4-port Fiber LAN modules are suitable for industrial communication applications with Ethernet-based devices. The DA-PHR-PTP expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) to ensure the highest system availability and data integrity for mission-critical applications that require redundancy and zero-time recovery. With dual Gigabit Ethernet port design, the DA-PRP-HSR module provides high performance for redundant network systems. In addition, the DA-PRP-HSR features built-in native PRP/HSR management middleware with an MMS server that allows SCADA systems to collect IEC62439-3 registers from multiple devices for easy network diagnosis, troubleshooting, device management, and monitoring. All modules are designed to offer the greatest flexibility for setting up applications and performing industrial tasks.
You can also find the DE-FX02-SFP-T model in the x86 Computers.

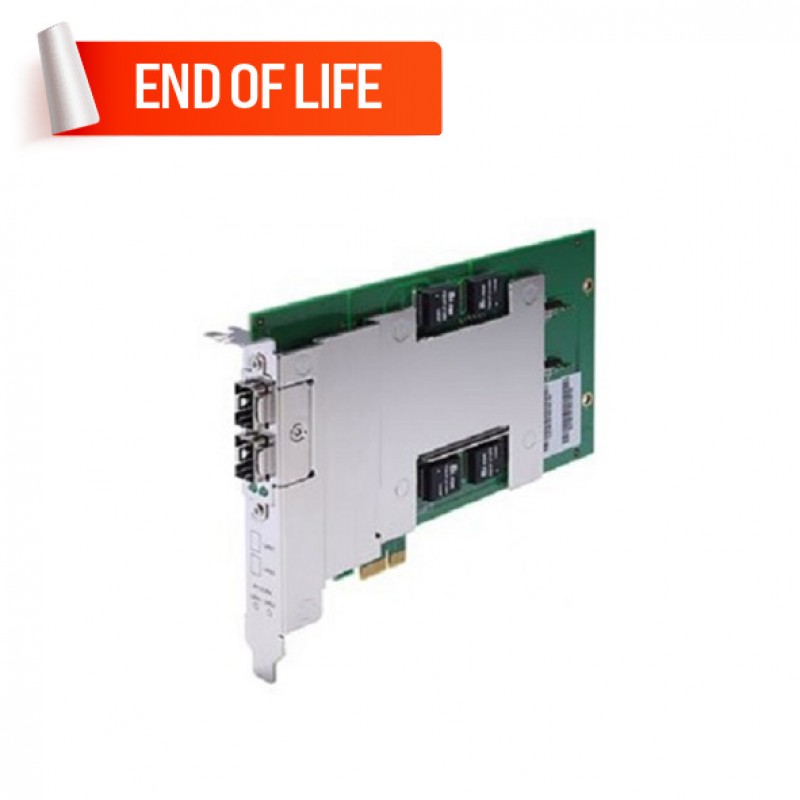

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA DE-GX02-SFP-T Fiber Ethernet Expansion Module, through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 2 x 1000 Mbps fiber |
| Connector | SFP |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 183 x 106.65 mm (7.2 x 4.19 in) |
| Weight | 220 g (0.49 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | - |
| Standards and Certifications | Green Product: RoHS, CRoHS, WEEE, Telcordia (Bellcore), GB |
| MTBF | 1,403,659 hrs |
