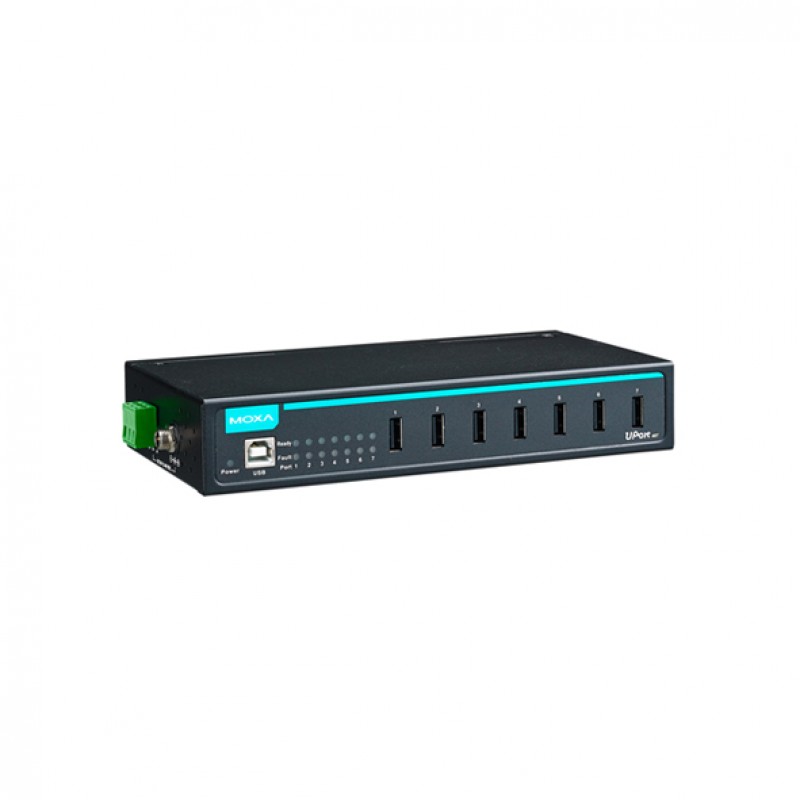

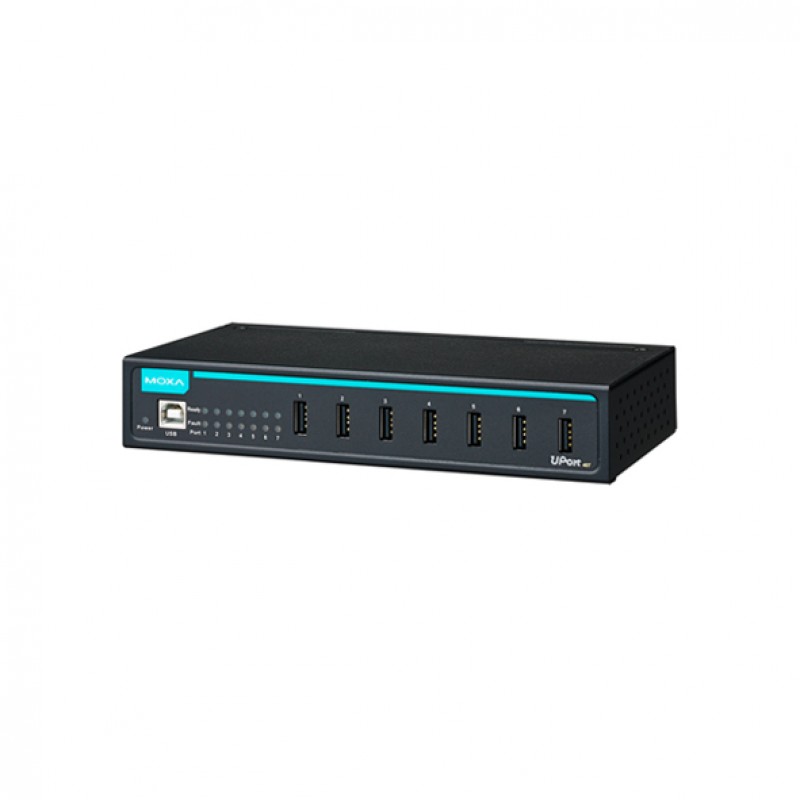

MOXA UPort 407-T w/o Adapter 7-Port Industrial USB Hub
- 7 x USB 2.0 Ports (Type A connector)
- 1 x Upstream USB Port (Type B connector)
- 12 to 40 VDC dual power inputs
- Aluminum body design
- DIN-rail and Wall mounting
- -40 to 85°C operating temperature
- Brand: MOXA
- Product Code: UPort 407-T w/o Adapter
Description
The UPort® 404 and UPort® 407 are industrial-grade USB 2.0
hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are
designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates
through each port, even for heavy-load applications. The UPort® 404/407 have
received USB-IF Hi-Speed certification, which is an indication that both
products are reliable, high-quality USB 2.0 hubs.
In addition, the hubs are fully compliant with the USB
plug-and-play spec and provide a full 500 mA of power per port, ensuring that
your USB devices function properly. The UPort® 404 and UPort® 407 hubs support
12-40 VDC power, which makes them ideal for mobile applications. Externally
powered USB hubs are the only way to guarantee the broadest compatibility with
USB devices.
You can also find the UPort 404-T w/o Adapter, UPort 404 w/o Adapter, and UPort 407 w/o Adapter models in the Industrial USB Converters.
Easy World Automation offers the easiest way to buy the MOXA UPort 407-T w/o Adapter 7-Port Industrial USB Hub in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of Ports | 8 (UFP: 1, DFP 7) |
| USB Connector | UFP: type B, DFP: type A |
| USB Standards | USB 2.0, USB 1.1 |
| Speed | 12 Mbps, 480 Mbps |
| General | |
| MTBF | 1,111,361 hrs |
| Power Requirements | |
| Output Power | For each port with a maximum flow of 0.5A |
| Input Power | 12 to 40 VDC |
| Input Current | 2.3 A @ 12 VDC |
| Power Connector | Power jack and Terminal block |
| Reverse Polarity Protection | |
| Physical Characteristics | |
| Housing | Aluminium |
| Weight | 950 g (2.1 lb) |
| Dimensions | 100 x 35 x 192 mm (3.94 x 1.38 x 7.56 in) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | Wall mounting, DIN-rail mounting (optional) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1; Safety: UL 508; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE, Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| LED Indicators | |
| Status indicator | |
| Package Checklist | |
| Power adapter | |
| USB cable | |
| Hardware installation guide | |
