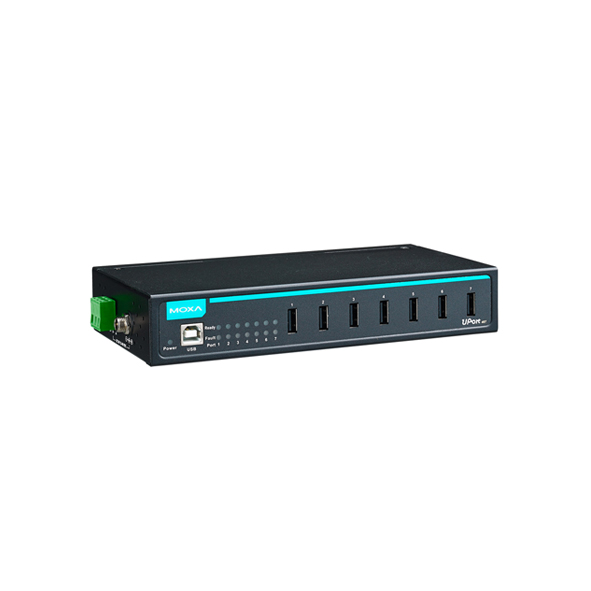

MOXA UPort 407 w/ Adapter 7-Port Industrial USB Hub

7 x USB 2.0 Ports (Type A connector)
1 x Upstream USB Port (Type B connector)
12 to 40 VDC dual power inputs
Aluminum body design
DIN-rail and Wall mounting
0 to 60°C operating temperature

Brand: MOXA
Product Code: UPort 407 w/ Adapter

Description

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs.

In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

You can also find the UPort 407-T w/o Adapter, UPort 404-T w/o Adapter, and UPort 407 w/o Adapter models in the Industrial USB Converters.

You can Buy the MOXA UPort 407 w/ Adapter 7-Port Industrial USB Hub via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interface
Number of Ports	8 (UFP: 1, DFP 7)
USB Connector	UFP: type B, DFP: type A
USB Standards	USB 2.0, USB 1.1
Speed	12 Mbps, 480 Mbps
General
MTBF	1,111,361 hrs
Power Requirements
Output Power	For each port with a maximum flow of 0.5A
Input Power	12 to 40 VDC
Input Current	2.3 A @ 12 VDC
Power Connector	Power jack and Terminal block
Reverse Polarity Protection
Physical Characteristics
Housing	Aluminium
Weight	950 g (2.1 lb)
Dimensions	100 x 35 x 192 mm (3.94 x 1.38 x 7.56 in)
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5% to %95 non-condensing
Installation	Wall mounting, DIN-rail mounting (optional)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1; Safety: UL 508; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE, Telcordia (Bellcore), GB
Storage Temperature	-20 to 75°C (-4 to 167°F)
LED Indicators
Status indicator
Package Checklist
Power adapter
USB cable
Hardware installation guide
