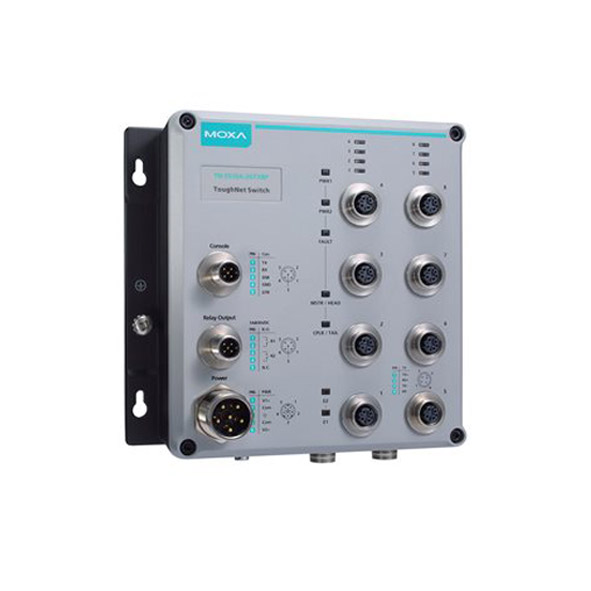

MOXA TN-5510A-2GTXBP-WV-T Managed Ethernet Switch

  • 8 x 10/100Mbps T(X) Ports (M12 D-Coded 4-Pin Female Connector) and 2 x 10/100/1000BaseT(X) Ports M12 X-Coded 8-Pin Female Connector with Bypass Relay
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature

Description

The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports and 2 ports on the downside to providing the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access points, and IP phones.

The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increase the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.


Inquire about the MOXA TN-5510A-2GTXBP-WV-T Managed Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
10/100Mb (Megabit) POE Ports
M12 port : 8 x 10/100Mbps T(X) Ports (M12 D-Coded 4-Pin Female Connector) and 2 x 10/100/ 1000BaseT(X) Ports (M12 X-Coded 8-Pin Female Connector with Bypass Relay)
Serial port : 1 x Console Port with M12 A-coded male connector
USB
Features and capabilities
Backup : ABC-01-M12 (Configuration backup and restoration tool with M12 connector)
LED Indicators
LED Per Port
Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 16.8 to 137.5 VDC
Power Input Plugin ( Redundant )
General
Fan / Fanless Fanless
MTBF 742,880 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation -
Physical Characteristics
Dimensions 185 x 175.8 x 76 mm (7.28 x 6.92 x 2.99 in)
Housing Metal
Installation DIN-rail mounting (optional), Wall mounting
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Vibration, Shock, Safety, Railway Fire Protection, Railway, Radio Frequency, Freefall, EMS, EMC
Standards and protocols
Protocols and work standards IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX,IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC, MIB
Protocols and management standards Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management
Package Checklist
Hardware installation guide
Power adapter
Power cable
