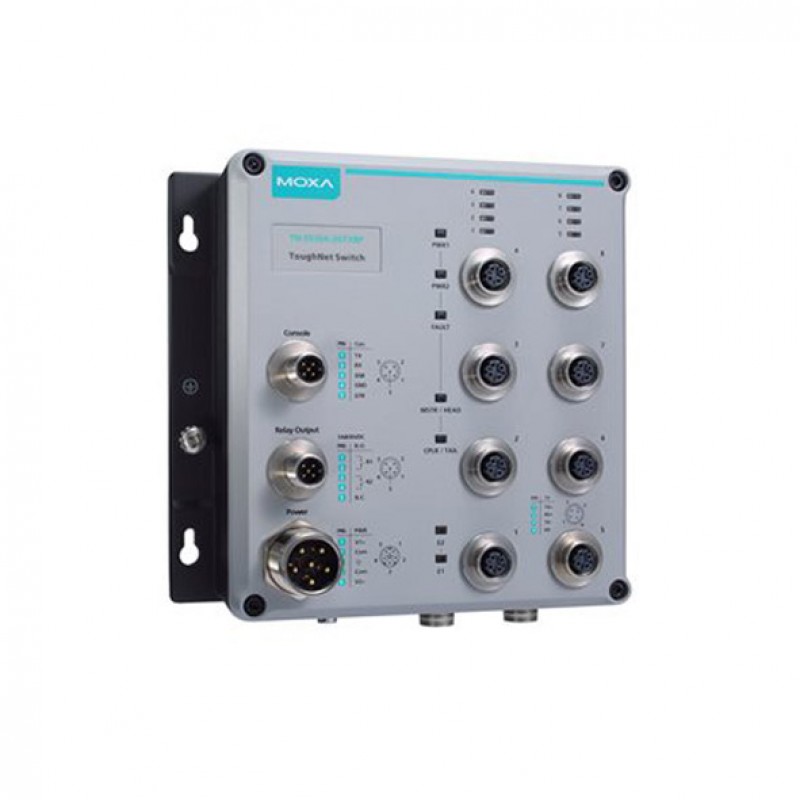

MOXA TN-5510A-2GTXBP-WV-CT-T Managed Ethernet Switch
- 8 x 10/100BaseT(X) Ports (M12 connector)
- 2 x 10/100/1000BaseT(X) Ports (M12 connector with bypass relay)
- 24 to 110 VDC Redundant dual power inputs
- IP54-rated Metal body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature
-01.png)
Description
The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports and 2 ports on the downside to providing the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access points, and IP phones.
The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increase the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
You can also find the TN-5510A-8PoE-2GTXBP-WV-CT-T, TN-5510A-2GTX-WV-T, and TN-5508A-8PoE-WV-CT-T models in the EN50155 Ethernet Switches.
You can Buy the MOXA TN-5510A-2GTXBP-WV-CT-T Managed Ethernet Switch via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 8 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector), 2 x 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay), 1 x Console Port (M12 connector), 2 x Alarm Contact Channels (M12 connector) |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 24-110 VDC, 0.5A max. |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24/36/48/72/96/110 VDC |
| Operating Voltage | 16.8 to 137.5 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 742,880 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 185 x 175.8 x 76 mm (7.28 x 6.92 x 2.99 in) |
| Installation | DIN-rail mounting (optional), Wall mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 , IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Radio Frequency: FCC; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 62368-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; EMC: EN 55032/35; IP54; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1,805 g (3.97 lb) |
| Standards and protocols | |
| Protocols and work standards | LACP, MSTP, RSTP, Static Port Trunk, STP, Turbo Chain, Turbo Ring v2, Turbo Ring with DRC |
| Protocols and management standards | Account Management, Back Pressure Flow Control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP option 82 (relay agent), DHCP Server (options 1/3/12/15/42/50/55), Flow control, HTTP, ICMP, IPv4/IPv6, LLDP, Loop Protection, Port-based DHCP Server, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Talent, 802.1Q, GMRP, GVRP, IGMP Snooping v1/v2/v3, IGMP Querier, Port-based VLAN, Static Multicast |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
