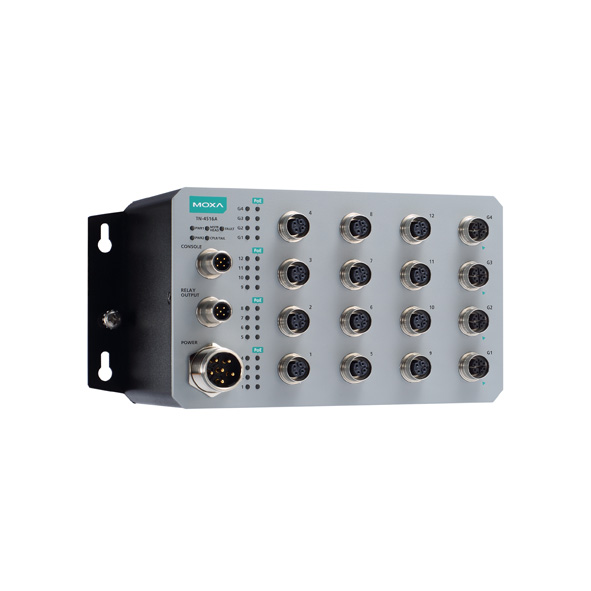

MOXA TN-4516A-12PoE-4GPoE-WV-CT-T Managed Ethernet Switch
- 12 x PoE 10/100BaseT(X) ports with M12 connector, 4 x PoE 10/100/1000BaseT(X) ports with M12 connector
- 1 (dual input) 24 to 110 VDC power supply
- conformal coating
- DIN-rail mounting (optional), Wall mounting
- Metal body
- -40 to 70°C operating temperature
- Conformal Coating
.png)
Description
The ToughNet TN-4500A Series M12 managed Ethernet switches
are designed for railway applications, including rolling stock and wayside
installations. The switches use M12 and other circular connectors to ensure
tight, robust connections, and guarantee reliable operation in industrial
environments where vibration and shock are commonplace. The TN-4500A Series
Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE
802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit
Ethernet interfaces with PoE and optional bypass relay functionality. In
addition, the fiber models provide 2 Gigabit fiber interface ports with an
embedded 2 km multimode fiber transceiver. The PoE switches are classified as
power source equipment (PSE).
The switches provide up to 30 watts of power per port and
can be used to power IEEE 802.3at/af-compliant powered devices (PDs), such as
IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power
input range and isolated dual power inputs not only allow you to use the same
type of power source at different sites around the globe but also increase the
reliability of your communications system. Furthermore, the -40 to 70°C
operating temperature range of the switches ensures they can withstand
deployment in harsh environments. TN-4500A Series Ethernet switches are
compliant with the mandatory sections of EN 50155, covering operating
temperature, power input voltage, surge, ESD, and vibration, as well as
conformal coating and power insulation, making the switches suitable for a
variety of industrial applications.
You can also find the TN-4516A-12PoE-4GPoE-WV-T model in the
EN50155 Ethernet Switches.
You can Buy the MOXA TN-4516A-12PoE-4GPoE-WV-CT-T Managed Ethernet Switch via inquiring online at a competitive
price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | 12 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | 4 Ports |
| M12 port | : 12 PoE 10/100BaseT(X) ports with M12 connector, 4 PoE 10/100/1000BaseT(X) ports with M12 connector |
| Serial port | : 1 x Console Port with M12 A-coded male connector |
| USB | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 16.8 to 137.5 VDC |
| Power Input Plugin ( Redundant ) | |
| POE Support | |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 421,432 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Rugged Ethernet switches |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 229.6 x 132 x 122.3 mm (9.04 x 5.20 x 4.81 in) |
| Housing | Metal |
| Installation | Wall mounting |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Safety | UL 62368-1, IEC 62368-1, EN 62368-1 |
| EMC | EN 55032/35 |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
| Rail Traffic | EN 50121-4, EN 50155, IEC 60571 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Freefall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| Protocols and management standards | Back Pressure Flow Control, Flow control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP Server (options 1/3/12/15/42/50/55), DHCP option 82 (relay agent), Port-based DHCP Server, HTTP, IPv4/IPv6, LLDP, Port Mirror QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, Account Management, DNS Server, Loop Protection |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
