Description

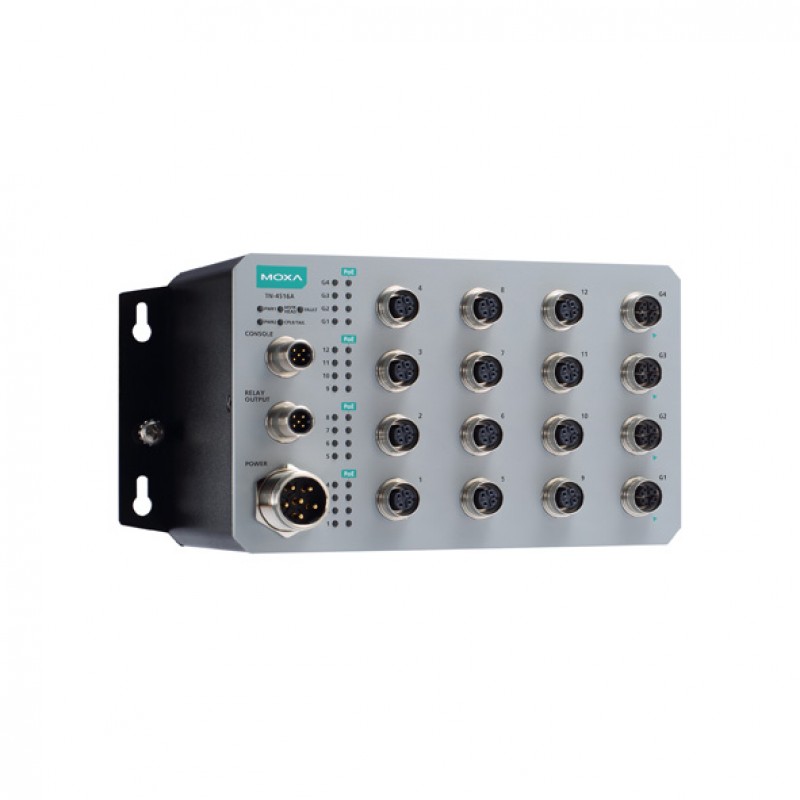

The ToughNet TN-4500A Series M12 managed Ethernet switches
are designed for railway applications, including rolling stock and wayside
installations. The switches use M12 and other circular connectors to ensure
tight, robust connections, and guarantee reliable operation in industrial
environments where vibration and shock are commonplace. The TN-4500A Series
Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE
802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit
Ethernet interfaces with PoE and optional bypass relay functionality. In
addition, the fiber models provide 2 Gigabit fiber interface ports with an
embedded 2 km multimode fiber transceiver. The PoE switches are classified as
power source equipment (PSE).
The switches provide up to 30 watts of power per port and
can be used to power IEEE 802.3at/af-compliant powered devices (PDs), such as
IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power
input range and isolated dual power inputs not only allow you to use the same
type of power source at different sites around the globe but also increase the
reliability of your communications system. Furthermore, the -40 to 70°C
operating temperature range of the switches ensures they can withstand
deployment in harsh environments. TN-4500A Series Ethernet switches are
compliant with the mandatory sections of EN 50155, covering operating
temperature, power input voltage, surge, ESD, and vibration, as well as
conformal coating and power insulation, making the switches suitable for a
variety of industrial applications.
You can also find the TN-4516A-WV-CT-T, TN-4516A-4GTXBP-WV-T, and TN-4516A-4GTX-WV-T models in the EN50155 Ethernet Switches.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA TN-4516A-WV-T Managed Ethernet Switch through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 16 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector), 2 x Alarm Contact Channels (M12 connector), 1 x Console Port (M12 connector) |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | Max. 0.33 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24/36/48/72/96/110 VDC (Dual power inputs) |
| Operating Voltage | 16.8 to 137.5 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 815,913 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 229.6 x 115 x 82.3 mm (9.04 x 4.53 x 3.24 in) |
| Housing | Metal |
| Installation | Wall mounting |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Radio Frequency: FCC; Railway: EN 50121-4, EN 50155, IEC 60571; Railway Fire Protection: EN 45545-2; Safety: UL 62368-1, IEC 62368-1, EN 62368-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP42; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1,248 g (2.75 lb) |
| Standards and protocols | |
| Protocols and work standards | MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC, Static Port Trunk, LACP |
| Protocols and management standards | IPv4/IPv6, Flow control, LLDP, ICMP, Port Mirror, QoS/CoS/ToS, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Account Management, Loop Protection, DNS Server, DHCP option 82 (relay agent), Port-based DHCP Server, DHCP Server (options 1/3/12/15/42/50/55), DHCP Client (options 1/3/50/51/53/54/55/57/66/67), GMRP,GVRP, 802.1Q VLAN, Port-based VLAN, Static Multicast, Multicast Filtering, IGMP Snooping v1/v2/v3, IGMP Querier, DHCP Filter |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
