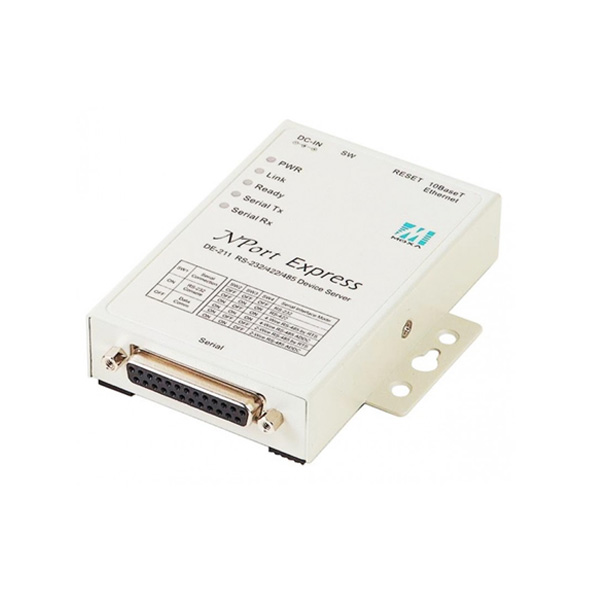

MOXA DE-211 Serial to Ethernet Device Server

MOXA DE-211 Serial to Ethernet Device Server
MOXA DE-211 Serial to Ethernet Device Server
MOXA DE-211 Serial to Ethernet Device Server
MOXA DE-211 Serial to Ethernet Device Server
MOXA DE-211 Serial to Ethernet Device Server

  • Serial to Ethernet Converter
  • 1 x 10BaseT(X) Ethernet port (RJ45)
  • 1 x RS-232/422/485 Serial port (DB25 female)
  • 12V DC to 30V DC input power range
  • Metal body design
  • 0 to 55°C operating temperature range

  • Brand: MOXA
  • Model: DE-211
0 reviews • Write a review
Datasheet
  • Operating Temperature (0 to 55°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CN2510-16 Terminal Server
Quickview
MOXA CN2510-16 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2510-16-48V Terminal Server
Quickview
MOXA CN2510-16-48V Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2510-8 Terminal Server
Quickview
MOXA CN2510-8 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2510-8-48V Terminal Server
Quickview
MOXA CN2510-8-48V Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-16 Terminal Server
Quickview
MOXA CN2610-16 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-16-2AC Terminal Server
Quickview
MOXA CN2610-16-2AC Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-8 Terminal Server
Quickview
MOXA CN2610-8 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-8-2AC Terminal Server
Quickview
MOXA CN2610-8-2AC Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Serial Device Servers , General Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Serial Connectivity , Factory Automation Products , NPort , Converters , MOXA NPort Express Series

The NPort® DE-211 and DE-311 are 1-port serial device servers that support RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485. The DE-211 supports 10 Mbps Ethernet connections and has a DB25 female connector for the serial port. The DE-311 supports 10/100 Mbps Ethernet connections and has a DB9 female connector for the serial port. Both device servers are ideal for applications that involve information display boards, PLCs, flow meters, gas meters, CNC machines, and biometric identification card readers.


You can also find the DE-311 model in the Serial-to-Ethernet Converters.


Experience the convenient way to purchase the MOXA DE-211 Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

serial-to-ethernet : Interface
10/100Mb RJ45 (Megabit) Ports No
100BaseFX Ports No
10Mbps RJ-45 Ports Yes : 1 Port
Digital Input Channels No
Digital Output Channels No
Alarm Contact Channels No
Magnetic Isolation Protection 1.5 kV (built-in)
Protocols -
serial-to-ethernet : Serial Interface
Number of Ports 1 Port
Serial Standards RS-232, RS-422, RS-485
Connector DB25 female
Console Port No
serial-to-ethernet : Serial Communication Parameters
Baudrate Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
Isolation No
serial-to-ethernet : Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-485-4w -
RS-485-2w Data+, Data-, GND
serial-to-ethernet : Communication details
Wireless Standards No
Maximum data transfer speed No
Maximum direct range No
serial-to-ethernet : General
Management ARP, BOOTP, DHCP Client, IPv4, TCP/IP, Telnet, UDP, ICMP
Compatible operating systems Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
MTBF 347,822 hrs
Automatic Reboot Trigger No
serial-to-ethernet : Power Requirements
Connection -
Input Voltage 12 to 30 VDC
Input Current 180 mA @ 12 VDC, 100 mA @ 24 VDC
serial-to-ethernet : Security
Security No
Encryption No
Authentication No
serial-to-ethernet : Features and capabilities
Display No
serial-to-ethernet : Physical Characteristics
Dimensions with ears: 90.2 x 100.4 x 22 mm (3.55 x 3.95 x 0.87 in), without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
Installation -
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-11; Safety: UL 60950-1; Medical: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant; Green Product: RoHS, CRoHS, WEEE; MIL-HDBK-217F
Housing Metal
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Weight 480 g (1.06 lb)
