Description

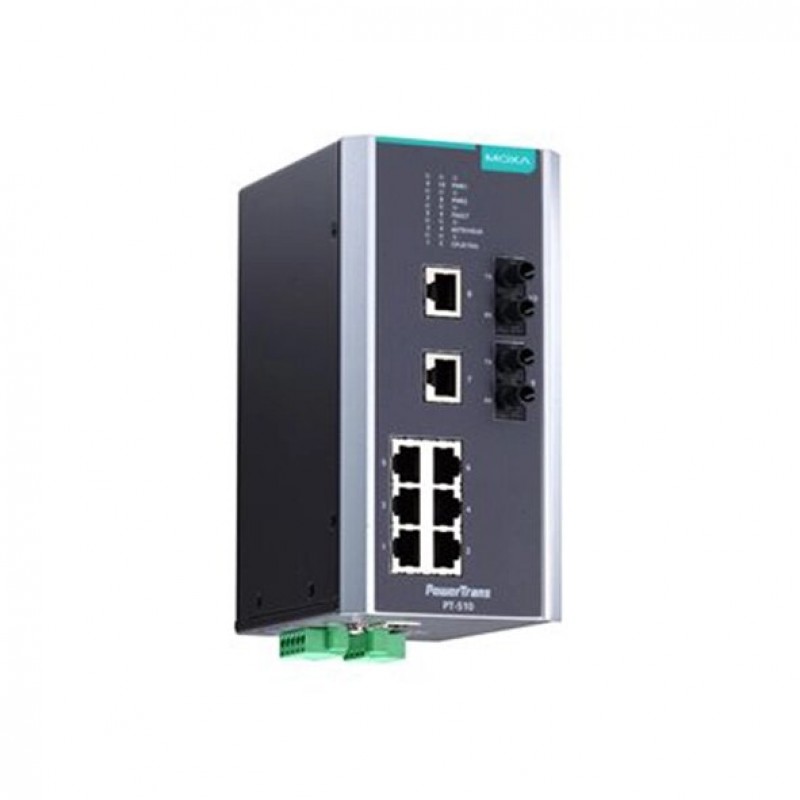

The PowerTrans PT-510 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-510 makes network planning easy and allows greater flexibility by letting you install up to 10 Fast Ethernet ports for power distribution applications.
You can also find the PT-510-SS-SC-48, PT-510-SS-SC-24, and PT-510-SS-LC-HV models in the IEC 61850-3 Ethernet Switches.
You can Buy the MOXA PT-510-MM-ST-48 Managed Ethernet Switches via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 ST Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 10/100Mb (Megabit) POE Ports | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Maximum power consumption | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 372,276 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | - |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Housing | 80x160x110mm |
| Installation | Metal |
| Operation Humidity | Din-rail, Wall mount |
| Standards and Certifications | Safety: UL 508, EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A, Power Automation: IEC 61850-3, IEEE 1613, IP40 protection |
| Storage Humidity | - |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.1s for Multiple Spanning, Tree Protocol |
| Protocols and management standards | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/ Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client |
