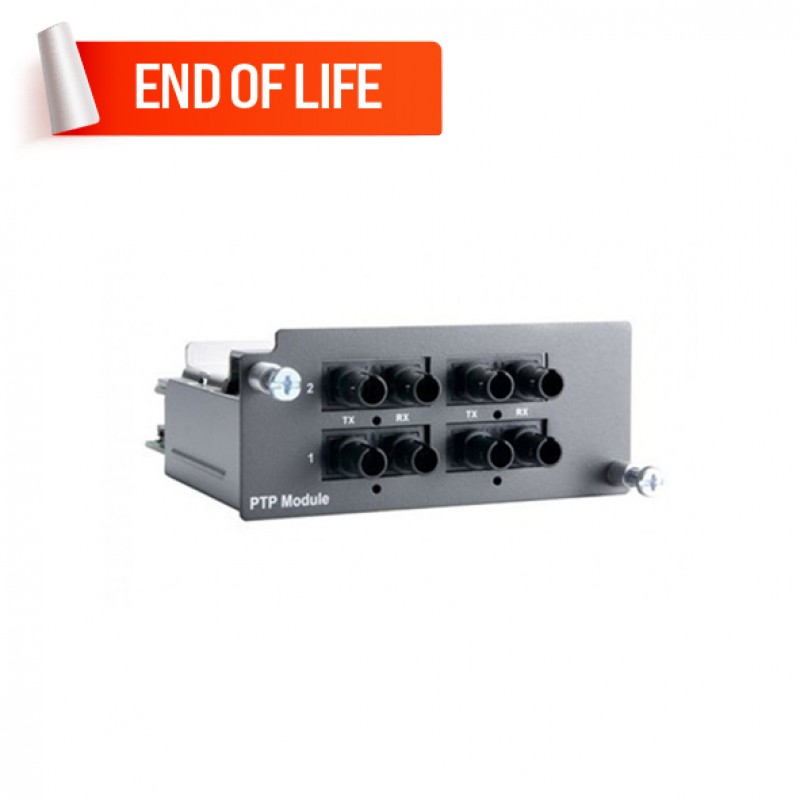

MOXA PM-7200-4MST-PTP Fiber Module
- 4 x 100BaseFX Ports (multi-mode ST connector)
- 5 KM Data transmission typical distance on fiber
- Hardware-Based IEEE 1588 PTP V2
- IEC 61850-3 and IEEE 1613 compliant
- Compatible with PT Series Managed Ethernet Switches
- -45 to 85°C operating temperature
Description
The PM-7200 Module Series includes Gigabit and Fast Ethernet modules for the PT Series rackmount Ethernet switches. IEEE 1588 interface modules provide hardware-based PTP functions for precise time synchronization across the network.
End of Life Product - Replacement Available
Please note that the PM-7200 Series has been phased out and replaced by the RM-G4000 Series.
Explore our extensive range of industrial automation
products such as MOXA PM-7200-4MST-PTP Fiber Module in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| INTERFACE | |
|---|---|
| Ports | 4 x 100BaseFX Ports (multi-mode) |
| Connector | ST |
| Typical Distance | 5 KM on fiber |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | - |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | CE, FCC, IEC 61850-3 , IEEE 1613, IEEE 1588 PTP v1/v2 (hardware-based) |
| MTBF | - |
