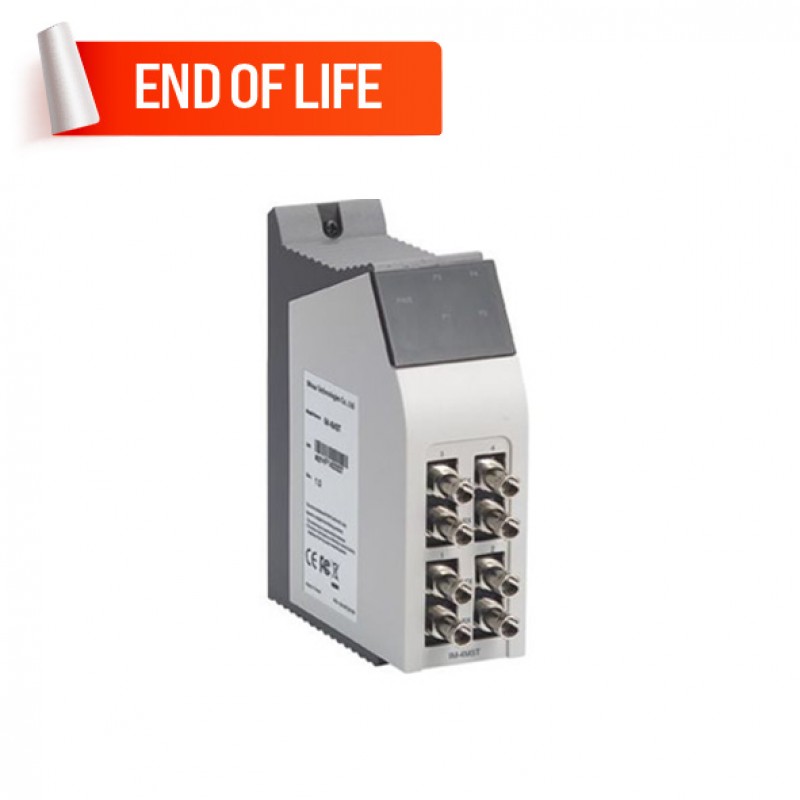

MOXA IM-4MST Fast Ethernet Module

  • 4 x 100BaseFX Ports (multi-mode ST connector)
  • 5 KM Data transmission typical distance on fiber
  • IP30 Housing protection
  • Compatible with EDS-728/828 Series Managed Ethernet Switches

Description

The IM Module Series has been designed for Moxa's EDS-728 Series and EDS-828 Series modular switches. The IM Module Series includes 6 Fast Ethernet modules, each with 4 ports supporting the TX, MSC, SSC, and MST media types. In addition, the IM Module Series includes 2 Gigabit Ethernet modules, one with 2 copper ports, and one with 2 fiber ports. Multiple modules can be used with the EDS-728 and EDS-828 switches, allowing each switch to support up to 24 Fast Ethernet ports and 4 Gigabit Ethernet ports.


End of Life Product - Replacement Available

Please note that the IM Module Series has been phased out and replaced by the LM-7000H Series.


Easy World Automation offers the easiest way to buy the MOXA IM-4MST Fast Ethernet Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

INTERFACE
Ports 4 x 100BaseFX Ports (multi-mode)
Connector ST
Typical Distance 5 KM on fiber
POWER REQUIREMENTS
Power Information Power Consumption: 6.6 W (max.)
PHYSICAL CHARACTERISTICS
Dimensions 40 x 127.8 x 100 mm (1.57 x 5.03 x 3.94 in)
Weight 270 g (0.6 lb)
Operating Temperature -
Storage Temperature -
Ambient Relative Humidity -
Standards and Certifications Telcordia (Bellcore), GB
MTBF -
