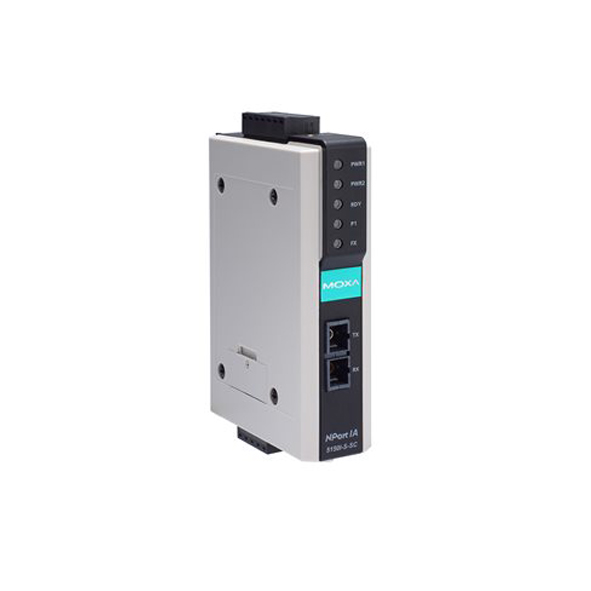

MOXA NPort IA-5150-M-SC-T Serial to Ethernet Device Server
- 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 Serial port
- Ethernet Port Connector: Multi-Mode SC
- 12 to 48 VDC dual power inputs
- Plastic body
- -40 to 75°C operating temperature
- Relay output warning and Email alerts
.png)
Description
NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.
Cascading Ethernet Ports Make Wiring Easy (10/100BaseTX models)
The NPort® IA5150 and IA5250 device servers each have two
Ethernet ports that can be used as Ethernet switch ports. One port connects
directly to the network or server, and the other port can be connected to
either another NPort® IA device server or an Ethernet device. The dual Ethernet
ports help reduce wiring costs by eliminating the need to connect each device
to a separate Ethernet switch.
You can also find the NPort IA-5150-IEX and NPort IA-5150I models in the Serial-To-Ethernet Converters.
Easy World Automation offers the easiest way to buy the MOXA NPort IA-5150-M-SC-T Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 1 Port |
| Serial port specifications | |
| Serial connection type | DB9 male for RS-232 and terminal block for RS-422/485 |
| Serial Communication Parameters | Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Data transfer speed ( Baudrate ) | Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 |
| Protection against electrostatic discharge | |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | Web Console (HTTP), Windows Utility, Telnet Console, Serial Console |
| MTBF | 1,349,710 hrs |
| Compatible operating systems | Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT, Windows Embedded CE 5.0 and 6.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS versions: 14, 13, 12, 11, and 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC, 0.238A to 48V DC |
| Security | |
| Security | |
| Encryption | |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | : Relay Output Warning and E-mail Alerts (Built-in buzzer and RTC) |
| Standards and protocols | |
| Network protocol | DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet |
| Physical Characteristics | |
| Safety | IEC 60950-1, EN 60950-1, EN 62368-1, UL 508 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 |
| Marine | DNV |
| Medical | |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Plastic |
| Altitude | - |
| Operation Humidity | 5 to 95% (non-condensing) |
