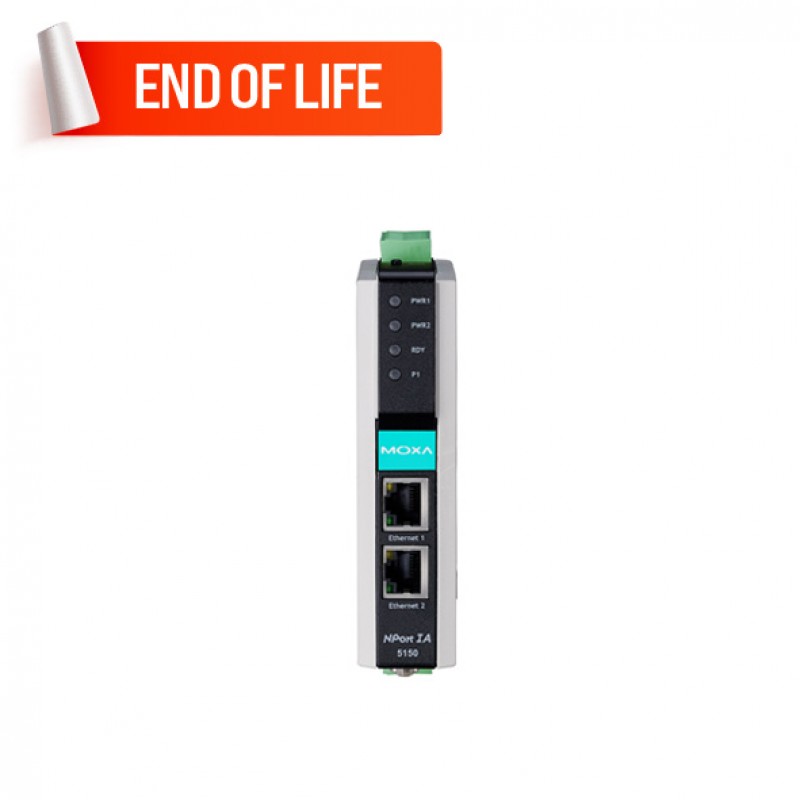

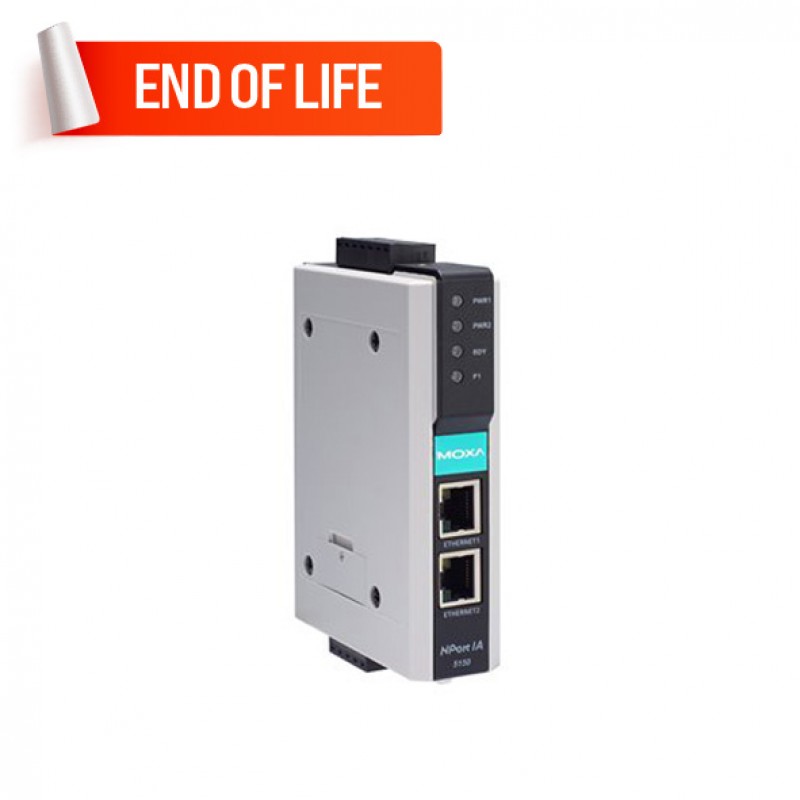

MOXA NPort IA-5150-IEX Serial to Ethernet Device Server

  • Serial to Ethernet conversion
  • 2 10 / 100Mbps Ethernet ports and 1 RS-232/422/485 serial port
  • Power Input 12V DC to 48V DC
  • Suitable for work in hazardous places

Description

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.


You can place an order for the MOXA NPort IA-5150-IEX Serial to Ethernet Device Server online via one of our Middle East branches (Dubai/Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

Interface
10Mbps RJ-45 Ports
10/100Mb RJ45 (Megabit) Ports : 2 Ports
RS-232 Ports
RS-422/485 Ports
RS-232/422/485 Ports : 1 Port
Serial port specifications
Serial connection type DB9-M for RS-232 and terminal block for RS-422/485
Serial Communication Parameters Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF and DTR/DSR (only RS-232)
Data transfer speed ( Baudrate ) 0.1Kbps to 230.4Kbps
Protection against electrostatic discharge
Electrical isolation
Communication details
Wireless Standards
Maximum data transfer speed
Maximum direct range
General
Management Web Console, Serial Console, Telnet Console, Windows Utility
MTBF 183,747 hour
Compatible operating systems Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
Power Requirements
Power Consumption (Output Adapter) 12V DC, 0.238A to 48V DC
Security
Security
Encryption
Features and capabilities
Display
Keyboard
The automatic restart (reset) : WDT
Alarm feature : Relay Output Warning and E-mail Alerts (Built-in buzzer and RTC)
Standards and protocols
Network protocol ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP
Physical Characteristics
Dimensions 29x89.2x118.5mm
Safety UL 508, UL 60950-1
EMC
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2, ESD: Contact: 6 kV; Air: 8 kV ,IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV ,IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF
Marine DNV
Medical
LAN port Protection against magnetic fields 1.5KV
Housing Plastic
Operating Temperature 0 to 55 ° C
Storage Temperature -40 to 75 ° C
Altitude -
Operation Humidity 5% to %95 RH non-condensing
Weight 0.36Kg
