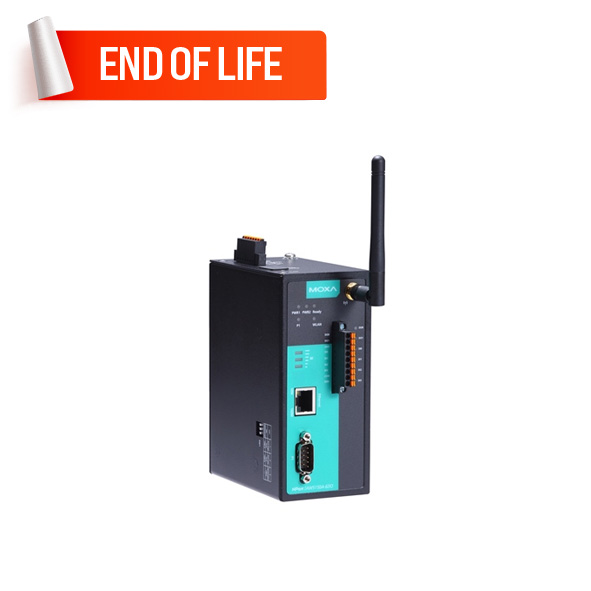

MOXA NPort IAW5150A-6I/O-EU Serial to Ethernet Device Server
- Supports EU Frequency Bands
- 4 x Digital inputs and 2 x Digital outputs
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- Metal body design
- 12 to 48 VDC Redundant dual power inputs
- DIN-rail and Wall mounting
- 0 to 55°C operating temperature
Description
The NPort IAW5000A-I/O wireless serial device servers with digital I/Os provide maximum flexibility when you need to integrate serial equipment in the field with a wireless Ethernet network. The combination of digital I/Os makes the device servers well-suited for a variety of industrial data acquisition applications.
The DI/Os on the device can be controlled over TCP/IP using the Modbus TCP protocol and can be configured from a web browser. The device can also be installed as a COM Port on a Windows/Linux PC to make it compatible with legacy applications. All models are ruggedly constructed, DIN-rail mountable, and designed with redundant power inputs to ensure uninterrupted operation for industrial applications.
End of Life Product - Replacement Available
Please note that the NPort IA5000A-I/O Series has been phased out and replaced by the NPort W2150A-W4/W2250A-W4 + ioLogik E1200 Series.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA NPort IAW5150A-6I/O-EU Serial to Ethernet Device Server through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | : 6 Channels |
| Digital Output Channels | : 2 Channels |
| Alarm Contact Channels | : Relay output with current carrying capacity of 2 A @ 30 VDC |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | Modbus TCP, MQTT, MTConnect |
| Serial Interface | |
| Number of Ports | 1 Port |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | 802.11a/b/g/n |
| Maximum data transfer speed | 150 Mbps |
| Maximum direct range | Up to 100 meters (in open areas) |
| General | |
| Management | DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| MTBF | 282,087 hours |
| Automatic Reboot Trigger | : Built-in WDT |
| Power Requirements | |
| Connection | Removable terminal block |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| Input Current | 300 mA @ 12 VDC |
| Security | |
| Security | Protocols: SNMPv3, SSHv2, HTTPS (TLS 1.2) |
| Encryption | HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384 |
| Authentication | Local database, RADIUS |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 59.6 x 101.7 x 134 mm (2.35 x 4 x 5.28 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: Ethernet: 2 kV, Serial: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: EN 300 328, EN 301 893; Safety: EN 60950-1, UL 60950-1; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 740 g (1.63 lb) |
