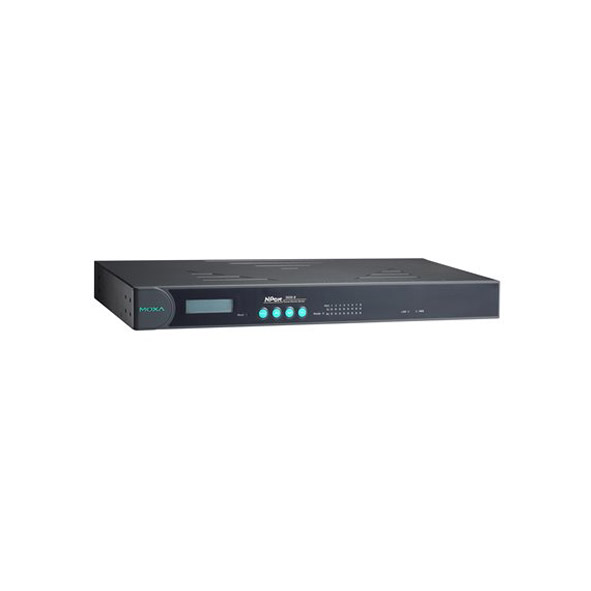

MOXA NPort 5650-8 Serial to Ethernet Rackmount Serial Device Server
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 8 x RS-232/422/485 Serial ports (8-pin RJ45 connector)
- 100 to 240 VAC input power range
- 19-inch rack mounting installation
- Metal body design
- 0 to 60°C operating temperature
Description
With the NPort® 5600 Rackmount Series, you not only protect
your current hardware investment but also allow for future network expansion by
centralizing the management of your serial devices and distributing management
hosts over the network.
19-Inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the
serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the
rear panel. This makes the NPort® 5600 device servers suitable for a standard
19-inch rackmount, allowing you to simplify operational, maintenance, and
administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports
on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports
by Linux. In addition to supporting basic data transmission and reception, the
NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
You can also find the NPort 5610-8, NPort 5610-16-48V, and NPort 5610-16 models in the Serial-to-Ethernet Converters.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA NPort 5650-8 Serial to Ethernet Rackmount Serial Device Server through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 8 Ports |
| Serial Standards | RS-232/422/485 |
| Connector | 8-pin RJ45 |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS Versions: 11.x, 10.12 to 10.15 |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| MTBF | 754,927 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | - |
| Input Voltage | 100 to 240 VAC, 47 to 63 Hz |
| Input Current | 158 mA @ 100 VAC |
| Security | |
| Security | Protocol: HTTPS (TLS 1.2), SNMPv3 |
| Encryption | HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 |
| Authentication | Local database |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in), without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) |
| Installation | 19-inch rack mounting |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS:IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8, IEC 61000-4-11; Safety: UL 62368-1; Medical: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant, EN 60601-1-2: 2007 compliant; MIL-HDBK-217F |
| Housing | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 2,310 g (5.09 lb) |
