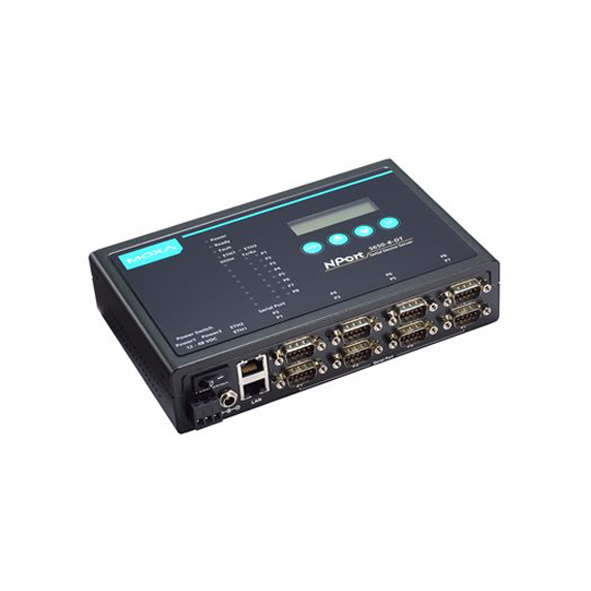

MOXA NPort 5650-8-DT w/ Adaptor Serial to Ethernet Device Server
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 8 x RS-232-422-485 Serial ports (DB9 male connector)
- 12V DC to 48V DC dual power inputs
- Desktop, DIN-rail, and Wall mounting
- Metal body design
- 0 to 55°C operating temperature
- With adapter
Description
NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize the management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
Convenient Design for RS-485 Applications
The NPort 5650-8-DT device servers support selectable
1-kilo-ohm and 150-kilo-ohm pull high/low resistors and a 120-ohm terminator.
In some critical environments, termination resistors may be needed to prevent
the reflection of serial signals. When using termination resistors, it is also
important to set the pull high/low resistors correctly so that the electrical
signal is not corrupted. Since no set of resistor values is universally
compatible with all environments, NPort 5600-8-DT device servers use DIP switches
to allow users to adjust termination and pull high/low resistor values manually
for each serial port.
You can also find the NPort 5650-8-DT-T, NPort 5650-8-DT w/o Adaptor, and NPort 5650-8-DT-J w/ Adaptor model in the Serial-to-Ethernet Converters.
Experience the convenient way to purchase the MOXA NPort 5650-8-DT w/ Adaptor Serial to Ethernet Device Server in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 8 Ports |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| Console Port | : RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1) |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS Versions: 11.x, 10.12 to 10.15, SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| MTBF | 836,374 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | TB, Power input jack |
| Input Voltage | 12 to 48 VDC (Dual power inputs) |
| Input Current | 615 mA @ 12 VDC |
| Security | |
| Security | Protocol: HTTPS (TLS 1.2), SNMPv3 |
| Encryption | HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 |
| Authentication | Local database |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in); without ears: 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in); with DIN-rail kit on bottom panel: 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1, IEC 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 1,590 g (3.51 lb) |
