Description
With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

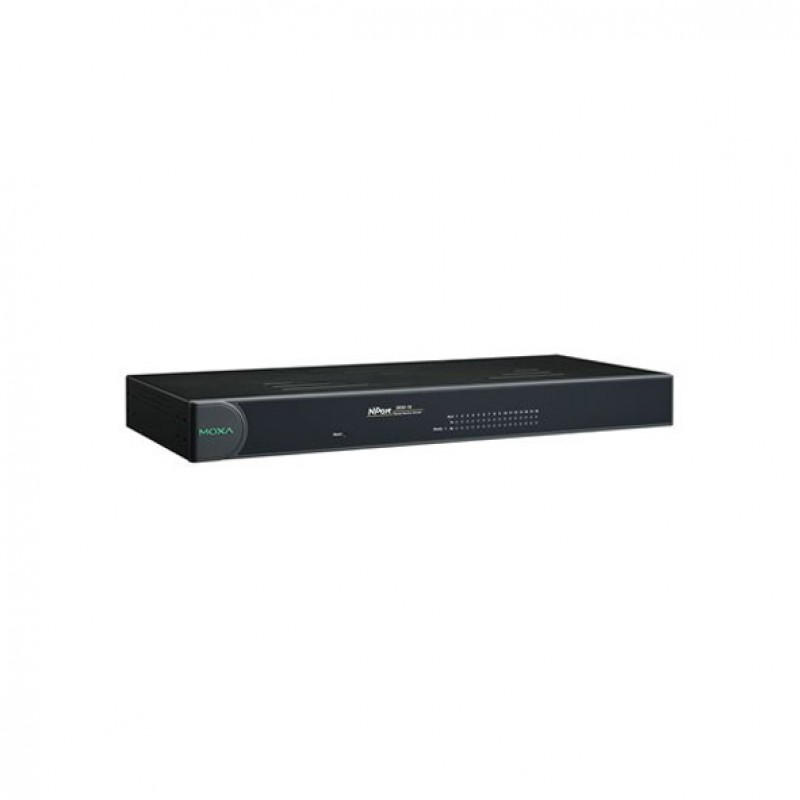

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.
You can also find the NPort 5650-8-T, NPort 5610-16-48V, and NPort 5610-8-48V models in the Serial-to-Ethernet Converters.
Easy World Automation offers the
easiest way to buy the MOXA NPort 5650-16-T Serial to Ethernet Rackmount Serial Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 16 Ports |
| Serial port specifications | |
| Serial connection type | RJ45 |
| Serial Communication Parameters | Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark |
| Flow Control | DSR/DTR, RTS/CTS (RS-232 only), XON/XOFF |
| Data transfer speed ( Baudrate ) | 0.05Kps to 921.6kbps |
| Protection against electrostatic discharge | 15KV |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | Web Console, Telnet Console, Windows Utility |
| MTBF | 104767 hour |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded, Linux 2.4.x, 2.6.x, 3.x |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 100V AC, 0.158A and 240V AC, 0.102A |
| Security | |
| Security | - |
| Encryption | - |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | |
| Standards and protocols | |
| Network protocol | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217 |
| Data transfer protocol | - |
| Physical Characteristics | |
| Dimensions | 440x45x198mm |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | 55022/24 |
| EMI | EN55022 Class A, FCC part 15 Subpart B Class A |
| EMS | EN 61000-4-2 ESD: contact 4 kV; air 8 kV; EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz); EN 61000-4-4 EFT: Power 4 kV, Signal 2 kV; EN 61000-4-5 Surge: AC 1 kV (AC models), DC 2 kV (DC/HV models), Signal 1 kV; EN 61000-4-6 CS: 3 V; EN 61000-4-8; EN 61000-4-11: A |
| Marine | |
| Medical | EN 60601-1-2 Class B, EN 55011 |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Metal |
| Operating Temperature | -40 to 75 ° C |
| Storage Temperature | -40 to 75 ° C |
| Altitude | 2000m |
| Operation Humidity | 5% to %95 RH non-condensing |
| Weight | 3.46Kg |
