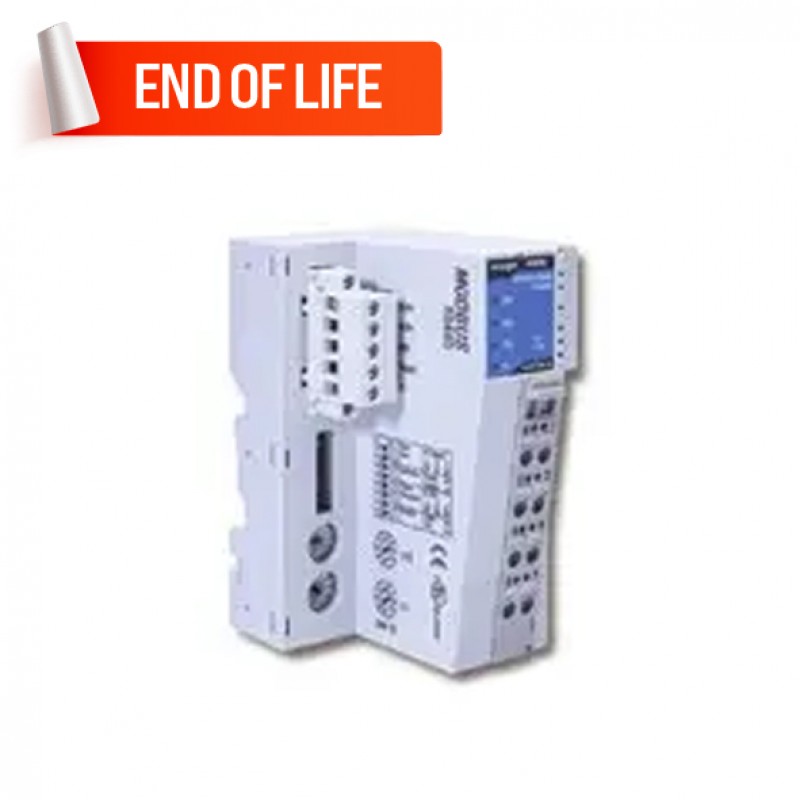

MOXA NA-4020 Ethernet Remote I/O
- Supports 32 x I/O Modules
- 1 x RS-485 Serial port (Terminal block connector)
- Supports Modbus RTU/MXIO library
- DIN-rail mounting
- 11 to 28.8 VDC input power range (System/Field)
- Plastic body design
- -10 to 60°C operating temperature range
Description
The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.
Slice Form Factor and Flexible I/O Variety
The unique modular construction of the ioLogik 4000 Series allows for the mixing and matching of modules to achieve the best combination of I/O modules to meet the needs of a wide range of remote automation applications. An industrial modular housing enables I/O modules to be added to the base unit without a backplane. The ioLogik 4000 Series is perfect for space-limited applications, and high-density I/O points are provided for greater flexibility and expandability. Modules can connect to virtually any type of sensor, including but not limited to those for temperature, pressure, flow, voltage, current, and contact closure.
Easy Maintenance
The ioLogik 4000 Series comes with removable spring-type terminal blocks (RTBs) that allow you to conserve field wiring for future use.
End of Life Product - Replacement Available
Please note that the ioLogik 4000 has been phased out and replaced by the ioThinx 4510 Series.
You can explore our wide range of
products and enquire about the MOXA NA-4020 Ethernet Remote I/O for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| INPUT/OUTPUT INTERFACE | |
|---|---|
| Buttons | Reset button |
| Expansion Slots | - |
| Isolation | - |
| ETHERNET INTERFACE | |
| 10/100BaseT(X) Ports (RJ45 connector) | |
| Magnetic Isolation Protection | - |
| SERIAL INTERFACE | |
| Connector | Terminal block |
| Serial Standards | RS-485 |
| Number of Ports | 1 Port |
| Serial Communication Parameters | Baudrate: 1200 bps to 115.2 kbps; Data Bits: 7, 8; Flow Control: ADDC® (automatic data direction control) for RS-485; Parity: None, Even, Odd; Stop Bits: 1, 2 |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-485-2w: Data+, Data-, GND |
| INDUSTRIAL PROTOCOLS | |
| Protocols | Ethernet: MXIO Library; Serial: Modbus RTU Server (Client) |
| POWER REQUIREMENTS | |
| Input Voltage | 11 to 28.8 VDC (System and Field) |
| Power Connector | Spring-type Euroblock terminal |
| Power Consumption | 70 mA @ 24 VDC |
| GENERAL | |
| Management | ioAdmin |
| MTBF | 4,721,640 hrs |
| PHYSICAL CHARACTERISTICS | |
| Housing | Plastic |
| Dimensions | 45 x 99 x 70 mm (1.77 x 3.90 x 2.76 in) |
| Weight | 150 g (0.33 lb) |
| Installation | DIN-rail mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
