Description
The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.
End of Life Product - Replacement Available
Please note that the ioLogik 4000 Series (M) Modules has been phased out and replaced by the 45MR Series.

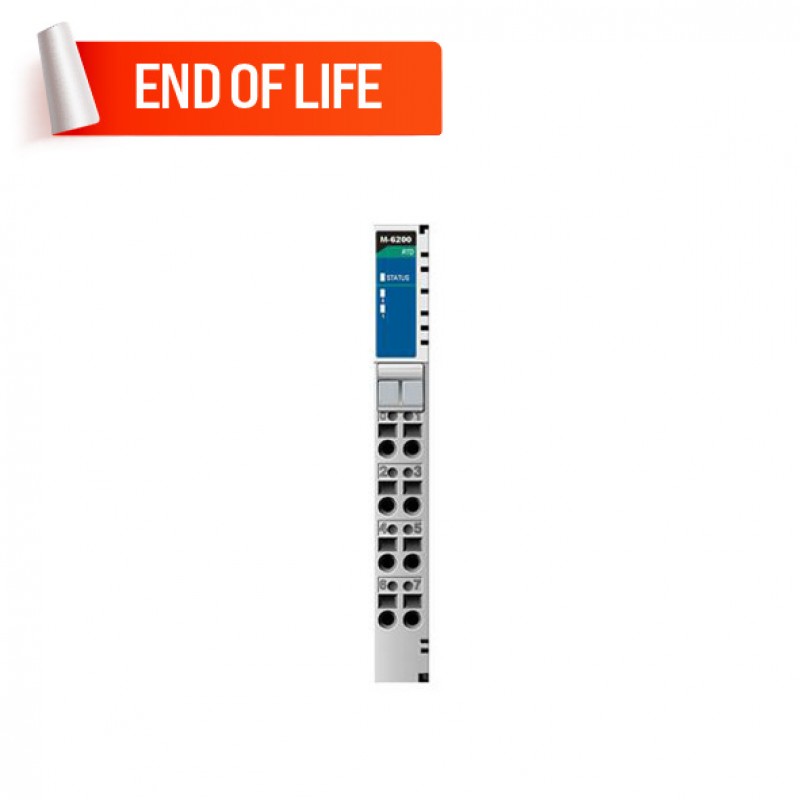

You can Buy the MOXA M-6200 Remote I/O Modules via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| INPUT/OUTPUT INTERFACE | |
|---|---|
| Digital Input and Output | |
| Analog Input and Output | |
| System Power Input Channels | |
| Thermocouple Channels | |
| Field Power Input and Output | |
| Relays | |
| RTD Channels | : 2 x Channels (RTD analog input type) |
| Ethernet Ports | |
| CAN Ports | |
| Serial Ports | |
| Isolation | : 3k VDC or 2k Vrms |
| SERIAL INTERFACE | |
| Connector | - |
| Serial Standards | - |
| Serial Communication Parameters | - |
| Serial Signals | - |
| GENERAL | |
| MTBF | 3,644,160 hrs |
| POWER REQUIREMENTS | |
| Power Connector | Spring-type Euroblock terminal |
| Input Voltage | - |
| Power Consumption | 80 mA @ 5 VDC |
| PHYSICAL CHARACTERISTICS | |
| Housing | Plastic |
| Dimensions | 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in) |
| Installation | DIN-rail mounting |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | Under 80 g |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; RoHS, CRoHS, WEEE |
| Altitude | - |
