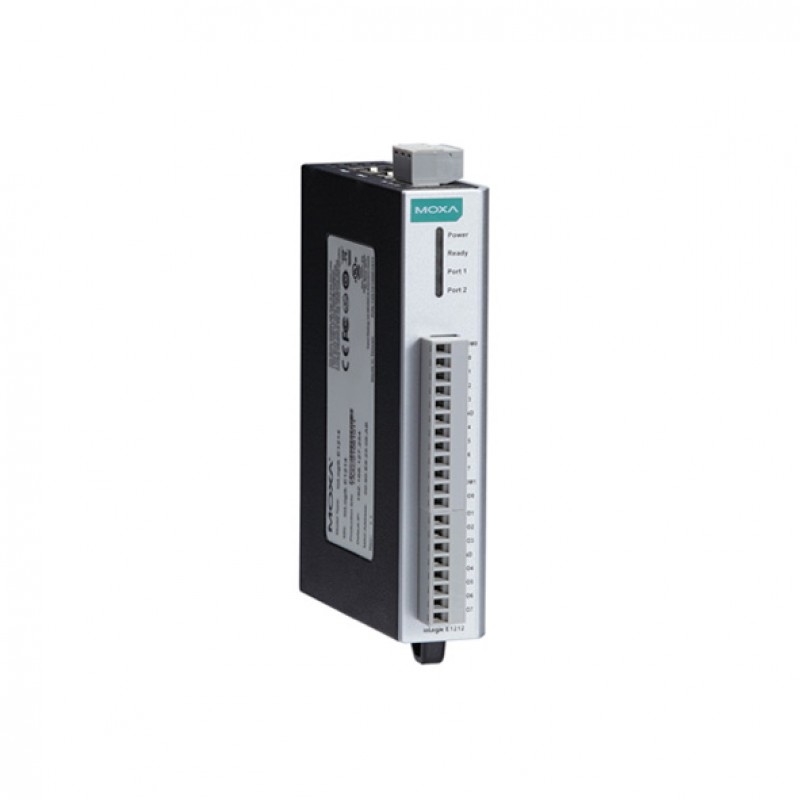

MOXA ioLogik E1211-T Ethernet Remote I/O
- Modbus / TCP protocol support
- 2 10/100 Mbps switch ports
- 16 digital outputs
- Suitable for a wide range of temperatures
- Brand: MOXA
- Product Code: ioLogik E1211-T
Description
The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.
You can also find the ioLogik E1262-T, ioLogik E1260-T,
ioLogik E1242-T, and ioLogik E1210 models in the
You can explore our wide range of
products and enquire about the MOXA ioLogik E1211-T Ethernet Remote I/O for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle
East.
Specification
Interface | |
---|---|
Digital Input and Output | : 16 digital inputs |
Adjustable digital input and output | |
Analog Input and Output | |
Relay Output | |
Thermal sensor input (RTD) | |
Thermocouple input | |
LAN | : 2 RJ-45 10/100Mbps switch ports |
Serial port | |
Standards and protocols | |
Protocols | Modbus/TCP (Slave), EtherNet/IP*, SNMPv1/v2c, RESTful, API, TCP/IP, UDP, DHCP, BOOTP, HTTP |
General | |
Compatible Softwares | MX-AOPC UA Server, ioSearch, MXIO, Peer-to-peer |
Physical Characteristics | |
Standards and Certifications | Safety: UL 508; EMC:EN 55032, EN 55024, EN 61000-3-2/3-3, EN 61000-6-2/6-4; EMI:CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8; Hazardous Location: Class 1 Division 2, ATEX Zone 2; Green Product: RoHS, CRoHS, WEEE |
Operating Temperature | -40 to 75 ° C |
Storage Temperature | -40 to 85 ° C |
Operation Humidity | 5% to %95 Non-condensing |
