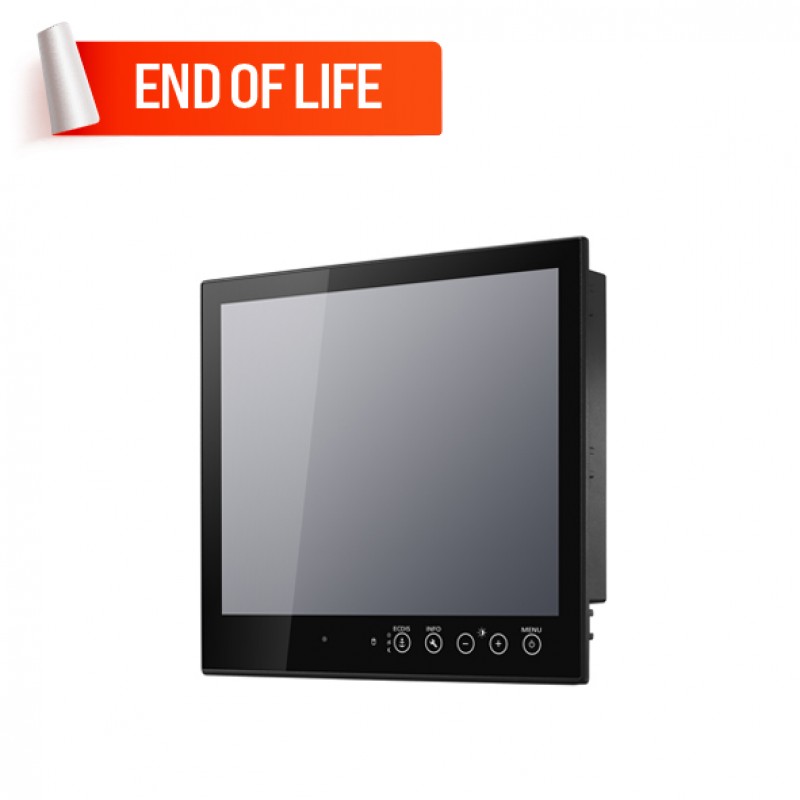

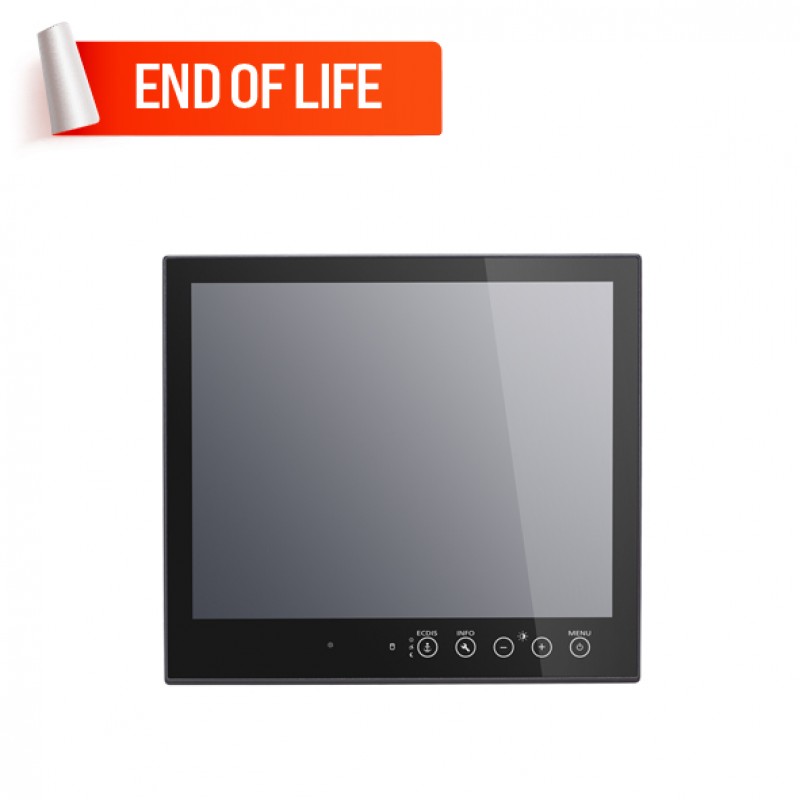

MOXA MPC-2190X Panel Computer
- 19-inch panel computer (300 nits)
- CPU Intel® Celeron® 1047UE 1.40 GHz
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
- 2 x RS/232/422/485 Serial ports (DB9 male connector)
- Metal body design (IP54 for front, IP20 for rear)
- Multiple power supplies (100 to 240 VAC, 18 to 34 VDC)
- -15 to 55°C operating temperature range
-01.png)
Description
MPC-2190 panel computers feature an Intel 3rd generation
processor matched to 4 GB of system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine
environments. With its two RS-232/422/485 serial ports, four NMEA 0183 ports,
and two Gigabit Ethernet ports, the MPC-2190 panel computer supports a wide
variety of serial and marine-specific interfaces as well as high-speed IT
communications, all with native network redundancy.
The MPC-2190 Series comes with a range of standard display
enhancements useful in industrial environments (including full range dimming,
wide viewing angles, and optional optical bonding), as well as a few
innovations especially deployed for maritime environments: user-friendly OSD
controls, called SavvyTouch, featuring a proximity sensor for convenient
adjustment in dark situations, immediate BIOS-level reports on hardware status
(useful for determining why a machine will not boot up), and a quick-switch
ECDIS button (for color-calibrated ECDIS models only) that allows instant
brightness adjustments to any of the three pre-set calibrations dictated by the
ECDIS standard. In addition to all of this, the MPC2190 Series features a
modular design that makes device integration into either new or existing
industrial systems much simpler, reducing deployment costs and overall
time-to-market.
The MPC-2190 panel computers are compliant with several industrial marine standards, including IEC 60945, IEC 61162, IEC 61174, DNV, and IACS E10, verifying their resilience for maritime operations. The IP54 (front panel) and IP22 (rear panel) rated unibody shells provide strong additional protection against the harsh conditions found in marine environments. Color-calibrated ECDIS models are available upon request, providing an ideal HMI alternative for ECDIS charting and navigation stations.
End of Life Product - No Replacement
Please note that the MPC-2190 Series has been phased out. You can explore the MPC-2070 Series, MPC-2121 Series, MPC-2120 Series, and MPC-2101 Series in the Displays and Panel Computers.
You can Buy the MOXA MPC-2190X Panel Computer via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Computer | |
|---|---|
| CPU | Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz) |
| Supported OS | Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Windows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA, Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA |
| OS (pre-installed) | - |
| System Memory | 4 GB DDR3/DDR3L |
| Graphics Controller | Intel® HD Graphics 520 |
| Storage Slot | 2.5-inch HDD/SSD slots x 2 |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Digital Input/Output Channels | - |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 4 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | - |
| Display | |
| Panel Size | 19-inch viewable image |
| Aspect Ratio | 5:4 |
| Response Time | 20 ms (gray to gray) |
| Contrast Ratio | 2000:1 |
| Viewing Angles | 178°/178° |
| Touch | - |
| Pixels | 1280 x 1024 |
| Pixel Pitch (RGB) | 0.294 (H) x 0.294 (V) mm |
| Light Intensity | 300 cd/m2 |
| Active Display Area | 376.32 (H) x 301.06 (V) mm |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 100 to 240 VAC, 18 to 34 VDC (Dual power inputs) |
| Power Consumption | - |
| Physical Characteristics | |
| Dimensions | 429 x 387 x 74.5 mm (16.89 x 15.24 x 2.93 in) |
| Housing | Metal |
| Operating temperature | -15 to 55°C (5 to 131°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, IEC 60945; Maritime: ABS, CCS, DNV; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Vibration: IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP54; IP20 |
| Weight | 8,658 g (19.09 lb) |
| Mounting | VESA, panel, and desktop |
