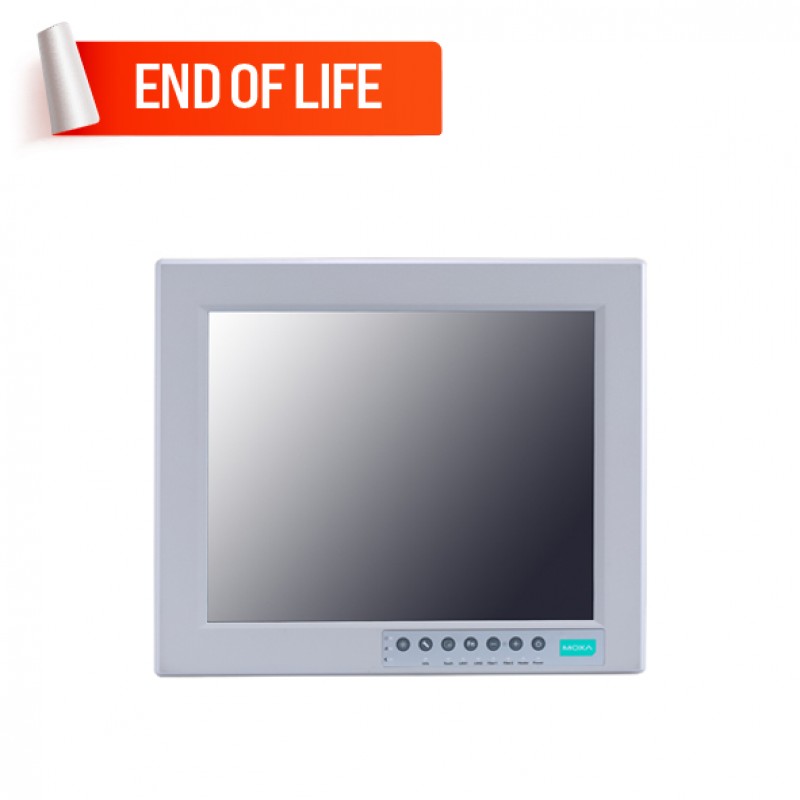

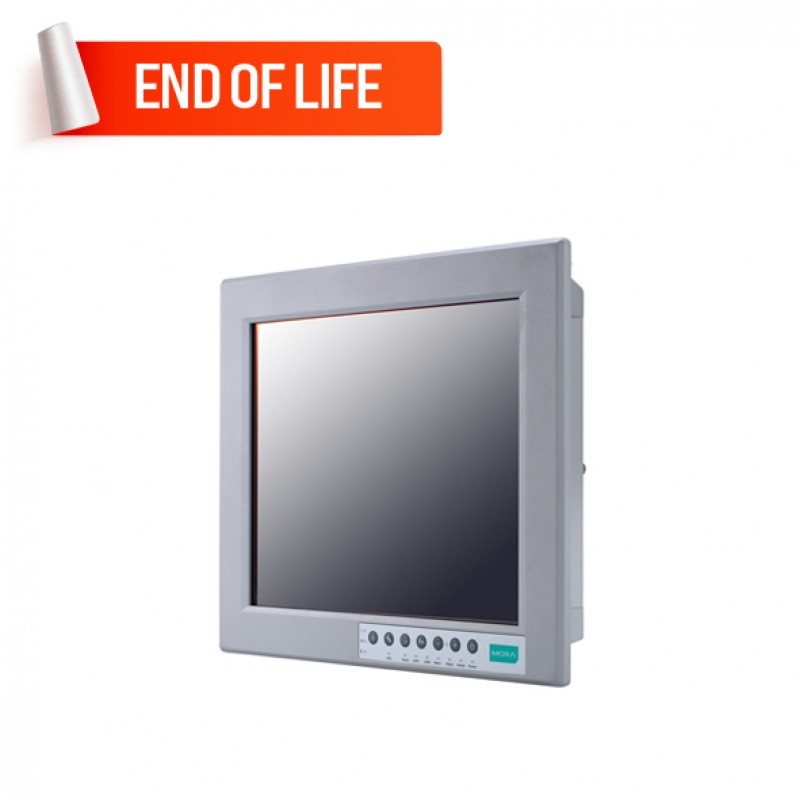

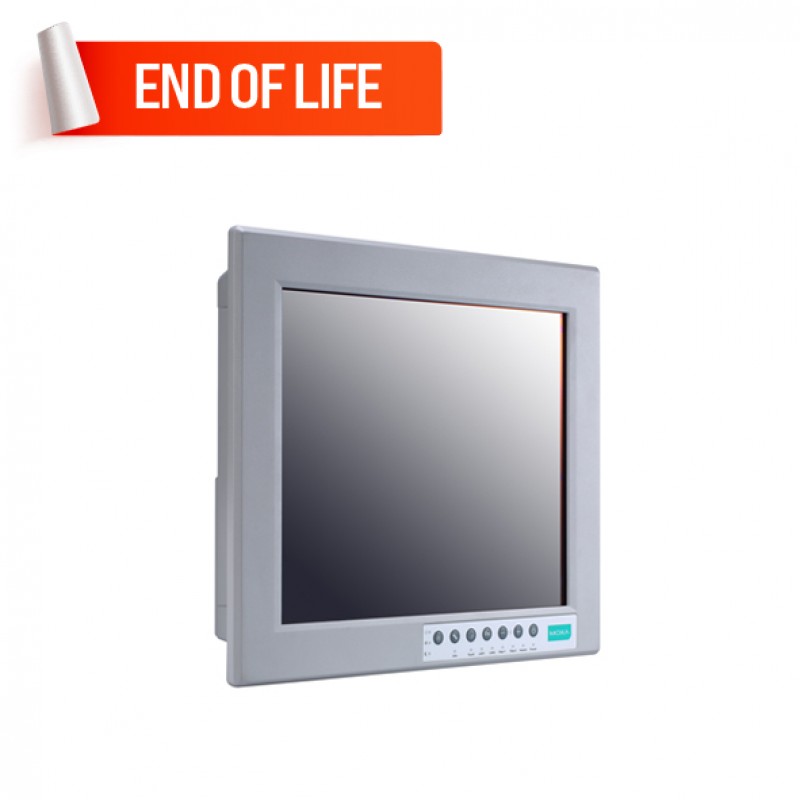

MOXA EXPC-1519-C7-S2-T Panel Computer
- 19-inch panel computer (1,000 nits)
- CPU Intel® Core™ i7-3555LE
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
- 2 x RS-232/422/485 Serial ports (Terminal block connector)
- IP66-rated Metal body design
- 100 to 240 VAC, 24 VDC dual power inputs
- Interface: Cable gland, standard I/O
- -40 to 70°C operating temperature range
.png)
Description

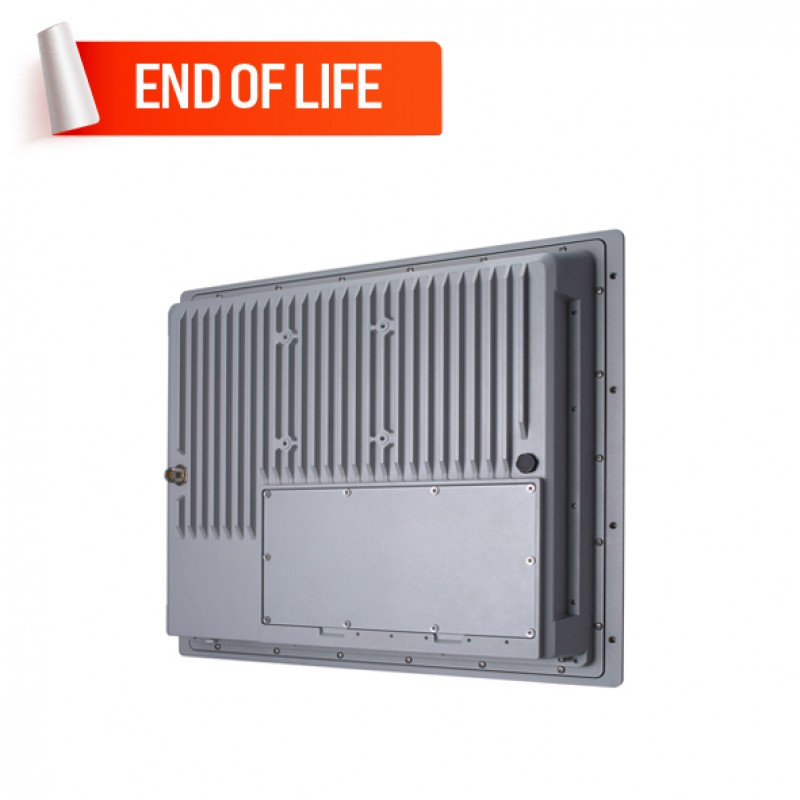

The EXPC-1519 panel computers are designed for indoor and outdoor Zone 2 applications in hazardous environments. The EXPC-1519 Series features a third-generation Intel® Core™ i7-3555LE 2.5 GHz or Celeron 1047UE 1.4 GHz processor, with up to 16 GB of memory to deliver high-performance processing. The EXPC-1519 Series offers flexible interface connectivity options to meet your application needs standard connectors with cable glands, terminal block with cable glands, and standard connectors on the bottom panel. The EXPC-1519 computers support wide-temperature (-40 to 70°C) operation and come with a patented, fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot outdoor environments like oil and gas fields and drilling platforms. In addition, the EXPC-1519 computers feature touchscreen controls with anti-reflection treatment and 1000-nit LED backlight, making them easy to read even during peak daylight hours.
End of Life Product - No Replacement
Please note that the EXPC-1519 Series has been phased out. You can explore the EXPC-F2120W Series and EXPC-F2150W Series in the Displays and Panel Computers.
Explore our extensive range of industrial automation products such as MOXA EXPC-1519-C7-S2-T Panel Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i7-3555LE Processor (4M Cache, up to 3.20 GHz) |
| Supported OS | Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Windows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA, Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA |
| OS (pre-installed) | OS is not pre-installed |
| System Memory | 4 GB DDR3/DDR3L |
| Graphics Controller | - |
| Storage Slot | 2.5-inch SSD slot x 1, CFast slot x 1 |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45) |
| Digital Input/Output Channels | - |
| Serial Ports | 2 x RS-232/422/485 ports, software-selectable (terminal block) |
| USB | 4 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | - |
| Display | |
| Panel Size | 19-inch viewable image |
| Aspect Ratio | 5:4 |
| Response Time | 5 ms (gray to gray) |
| Contrast Ratio | 1000:1 |
| Viewing Angles | 170°/160° |
| Touch | Capacitive multi-touch with glove-friendly support |
| Pixels | 1280 x 1024 |
| Pixel Pitch (RGB) | 0.294 (H) x 0.294 (V) mm |
| Light Intensity | 1000 cd/m2 |
| Active Display Area | 376.32 (H) x 301.06 (V) mm |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | - |
| Serial | - |
| Power Requirements | |
| Input Voltage | 100 to 240 VAC, 24 VDC (Dual power inputs) |
| Power Consumption | - |
| Physical Characteristics | |
| Dimensions | 483 x 408 x 99.5 mm (19.02 x 16.06 x 3.92 in) |
| Housing | Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, IEC 60945; Hazardous Locations: ATEX, Class I Division 2, IECEx; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; |
| Weight | 12,700 g (28.00 lb) |
| Mounting | Panel, Desktop and Wall Mounting |
