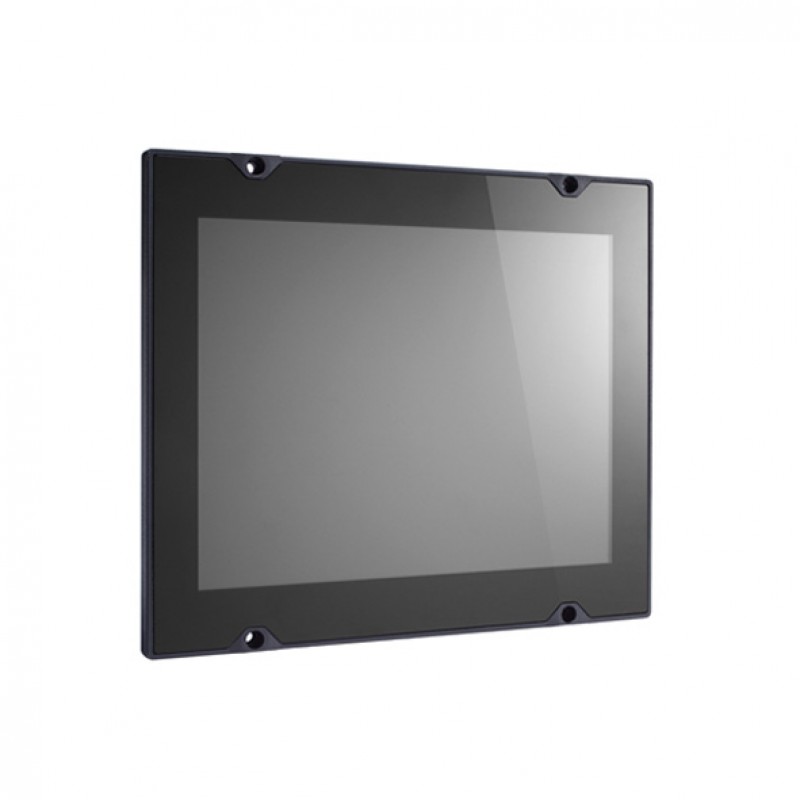

MOXA MPC-2101-E4-CT-T-W7E Panel Computer
- 10-inch Panel computer (1,000 nits)
- CPU Intel Atom® Processor E3845
- Pre-installed Windows Embedded Standard 7 (64-bit)
- 1 x RS-232/422/485 Serial port (M12 connector)
- 2 x 10/100 Mbps Ethernet ports (M12 connector)
- IP66-rated metal body design
- 24 to 110 VDC input power range
- -40 to 70°C operating temperature
.png)
Description
The MPC-2101 10-inch panel computers with E3800 Series Intel
Atom® processor deliver a reliable, durable, and versatile platform for use in
industrial environments. All interfaces come with IP66-rated M12 connectors to
provide anti-vibration and waterproof connections. With two software-selectable
RS-232/422/485 serial ports and two Ethernet LAN ports, the MPC-2101 panel
computers support a wide variety of serial interfaces as well as high-speed IT
communications, all with native network redundancy.
The MPC-2101 Series panel computers are designed with a
wide, -40 to 70°C temperature range, and come with a fanless, streamlined
enclosure designed for highly efficient heat dissipation, making this one of
the most reliable industrial platforms available for vibration-prone, harsh,
hot, outdoor environments. The MPC-2101 also features a 1000-nit LCD panel
offering a sunlight-readable, projected-capacitive, multi-touch screen,
providing an excellent user experience.
You can also find the MPC-2101-E4-CT-T-LX and MPC-2101-E4-LB-CT-T-W7E models in the Displays and Panel Computers.
You can explore our wide range of products and enquire about
the MOXA MPC-2101-E4-CT-T-W7E Panel Computer for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
| Computer | |
|---|---|
| CPU | Intel Atom® Processor E3845 (2M Cache, 1.91 GHz) |
| Supported OS | Windows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Linux Debian 9 |
| OS (pre-installed) | Windows Embedded Standard 7 (WS7P) 64-bit |
| System Memory | 4 (8GB Max.) GB DDR3L |
| Graphics Controller | Intel® HD Graphics |
| Storage Slot | CFast slot x 1, SD slots x 1, SD 3.0 (SDHC/SDXC) socket |
| Interface | |
| LAN | 2 x Auto-sensing 10/100 Mbps ports (M12 D-coded 4P) |
| Digital Input/Output Channels | 4 x Digital inputs, 2 x Digital outputs (M12 A-code) |
| Serial Ports | 1 x RS-232/422/485 port (M12 A-code 12P) |
| USB | 1 x USB 2.0 hosts (M12 A-code 5P) |
| Expansion Slot | Mini PCIe |
| Display | |
| Panel Size | 10.4-inch viewable image |
| Aspect Ratio | 4:3 |
| Response Time | 5 ms (gray to gray) |
| Contrast Ratio | 1000:1 |
| Viewing Angles | 176°/176° |
| Touch | Capacitive Touch (PCAP) |
| Pixels | 1024 x 768 |
| Pixel Pitch (RGB) | 0.240 (H) x 0.240 (V) mm |
| Light Intensity | 500/1000 cd/m2 |
| Active Display Area | 210.4 (H) x 157.8 (V) mm |
| Max. No. of Colors | 16.2M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Data+, Data-, GND |
| RS-485-2w | Tx+, Tx-, Rx+, Rx-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | - |
| Serial | - |
| Power Requirements | |
| Input Voltage | 24 to 110 VDC |
| Power Consumption | - |
| Physical Characteristics | |
| Dimensions | 256.9 x 214.4 x 58.9 mm (10.11 x 8.44 x 2.32 in) |
| Housing | Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Mechanical Protection Rating: IEC 60529, IP code; Safety: IEC 62368-1, IEC 60950-1, UL 62368-1; Shock: EN 50155 standard; EMC: EN55032/35; Vibration: EN 50155 standard; Green Product: RoHS, CRoHS, WEEE; IP66 |
| Weight | 2,080 g (4.59 lb) |
| Mounting | - |
