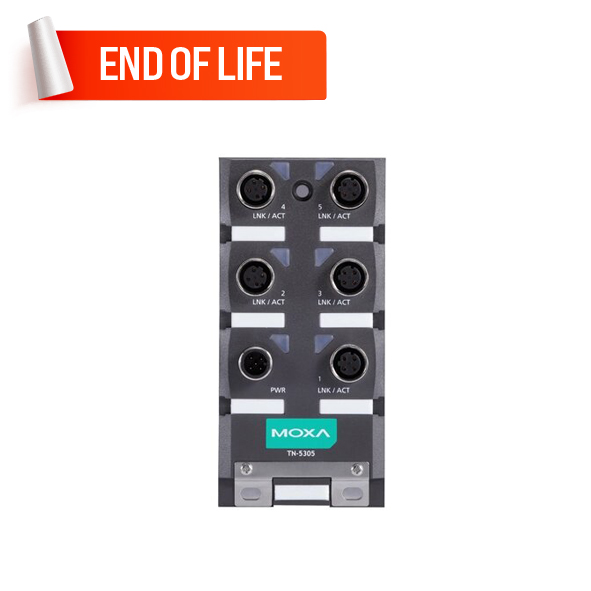

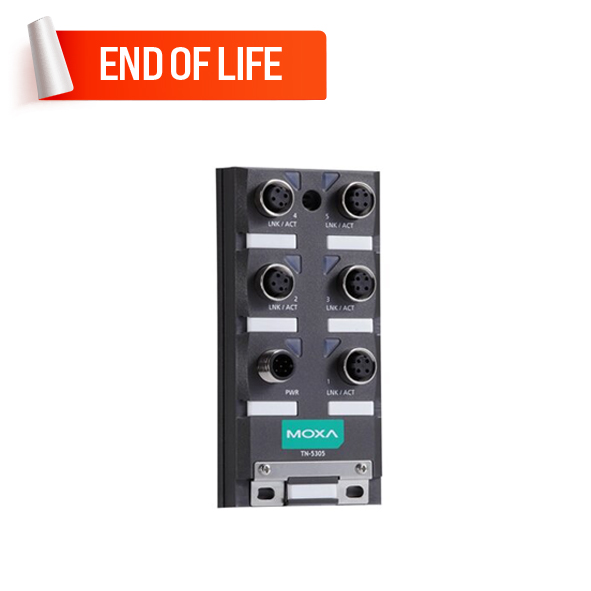

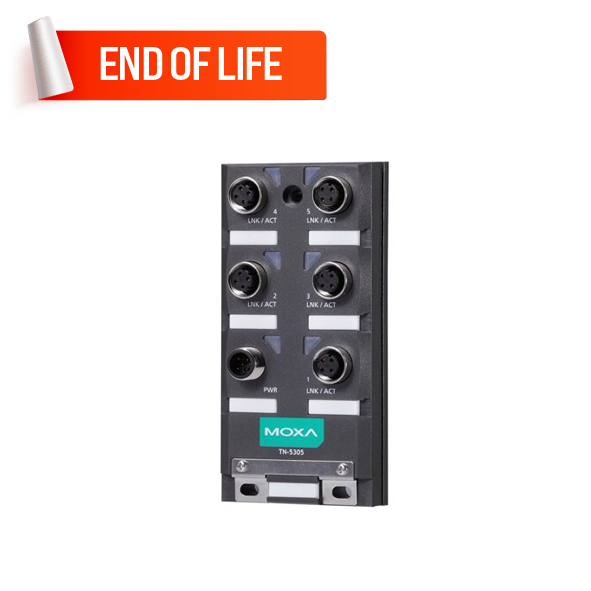

MOXA TN-5305 Unmanaged Ethernet Switches

MOXA TN-5305 Unmanaged Ethernet Switches
MOXA TN-5305 Unmanaged Ethernet Switches
MOXA TN-5305 Unmanaged Ethernet Switches
MOXA TN-5305 Unmanaged Ethernet Switches
MOXA TN-5305 Unmanaged Ethernet Switches
MOXA TN-5305 Unmanaged Ethernet Switches
MOXA TN-5305 Unmanaged Ethernet Switches

  • 5 x 10/100Mbps T(x) ports (M12 connector)
  • IEEE802.3/802.3u/802.3x support
  • DIN-rail and Wall mounting
  • Body: Plastic top cover, metal bottom plate
  • IP67-rated housing protection
  • Power input: 12 to 45 VDC, 18 to 30 VAC
  • -25 to 60°C operating temperature

  • Brand: MOXA
  • Model: TN-5305
0 reviews • Write a review
Datasheet
  • Operating Temperature (-25 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Freefall (IEC 60068-2-32)
  • IP protection (IP67)
  • Shock (IEC 60068-2-27, IEC 61373, EN 50155)
  • Vibration (IEC 60068-2-64, IEC 61373, EN 50155)
  • Railway Transportation
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MST Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MST Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4SSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4SSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-4TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , Railway Transportation Products , DIN-Rail Ethernet Switches , EN50155 Ethernet Switches , EN 50155 Switches , MOXA TN-5305 Series

The TN-5305 Series Ethernet switches are IP67-rated for demanding industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry. The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.


End of Life Product - Replacement Available

Please note that the TN-5305 Series has been phased out and replaced by the TN-5300A Series.


You can Buy the MOXA TN-5305 Unmanaged Ethernet Switches via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

switch and hub : Interface
Number of ports 5 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 5 x 10/100Mbps T(x) ports (M12 D-coded 4-pin female connector)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.1 A @ 24 VDC, 0.08 A @ 36 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 18 to 30 VAC (47 to 63 Hz), 24 to 36 VDC
Operating Voltage 18 to 30 VAC, 12 to 45 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 3,451,678 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
Housing Plastic top cover, metal bottom plate
Installation DIN-rail mounting (with optional kit), Wall mounting
Operating Temperature -25 to 60°C (-13 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Freefall: IEC 60068-2-32; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, EN 50155, IEC 60068-2-14, EN 50155, IEC 60068-2-2, EN 50155, IEC 60068-2-30, EN 50155; International Approval: RCM; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 508; Salt Spray Test: IEC 60068-2-11, EN 50155; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP67; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 270 g (0.56 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
