Description
The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.
The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

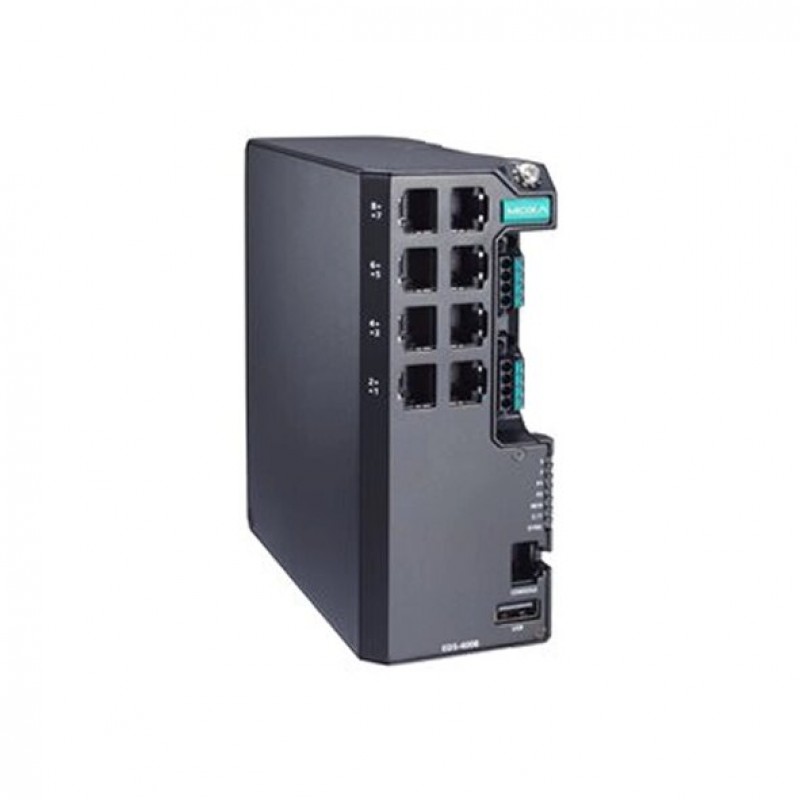

Inquire about the MOXA EDS-4008-HV Managed Ethernet Switch, designed
for industrial automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Features and capabilities | |
| Backup | : ABC-02 and ABC-03 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110/220 VDC/VAC |
| Operating Voltage | 88 to 300 VDC, 85 to 264 VAC |
| Power Consumption | 8.13 W |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 513,575 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 55 x 140 x 120 mm (2.2 x 5.51 x 4.72 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 857 g (1.89 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
| Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
