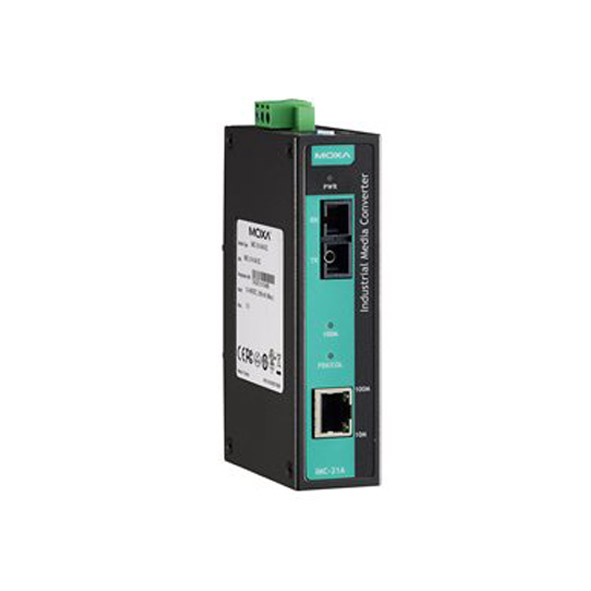

Name: MOXA IMC-21A-S-SC Ethernet to Fiber Converter
Brand: MOXA
Availability: OutOfStock

MOXA IMC-21A-S-SC Ethernet to Fiber Converter

1 x 10/100BaseT(X) Ports (RJ45 connector)
1 x 100BaseFX Ports (single-mode SC connector)
40 KM Typical data transmission distance on fiber
IP30-rated Metal body design
12 to 48 VDC input power range
DIN-rail mounting
-10 to 60°C operating temperature

Brand: MOXA
Model: IMC-21A-S-SC

0 reviews • Write a review

Datasheet

Operating Temperature (-10 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)
IP protection (IP30)

IP Surveillance

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Industrial Data Communications , Industrial Media Converters , Industrial Converters , IP Surveillance Products , Converters , MOXA IMC-21A Series

The IMC-21A industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN rail or in distribution boxes.

You can also find the IMC-21A-M-ST-T, IMC-21A-M-SC-T, and IMC-21A-S-SC-T models in the Industrial Media Converters.

You can Buy the MOXA IMC-21A-S-SC Ethernet to Fiber Converter via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
1000Mb Fiber optic multi mode (Gigabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 SC Port
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
M12 port	No
Alert Output	No
Magnetic Isolation Protection	1.5 kV (built-in)
eth to fiber : Standards and protocols
Protocols and work standards	-
eth to fiber : General
Maximum cable length for data transfer	40Km with single mode fiber optic cable
MTBF	353,000 hour
eth to fiber : Power Requirements
Input Voltage	12 to 48 VDC
Input Current	12 to 48 VDC, 265mA (Max.)
Overload Current Protection	Supported
Type of power input	Terminal
Power Consumption	-
eth to fiber : Physical Characteristics
Standards and Certifications	Safety: UL 508, EMC: EN 55022/24, EMI: CISPR 22, FCC Part 15B Class A, EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 1 V/m, EN 61000-4-4 (EFT): Power: 1 kV; Signal: 1 kV, EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF), EN 61000-4-11, RoHS, CRoHS, WEEE, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6; MIL-HDBK-217F; IP30
Housing	Metal
Dimensions	30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
Weight	170 g (0.37 lb)
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting

Datasheet

MOXA IMC-21A-S-SC Ethernet to Fiber Converter
