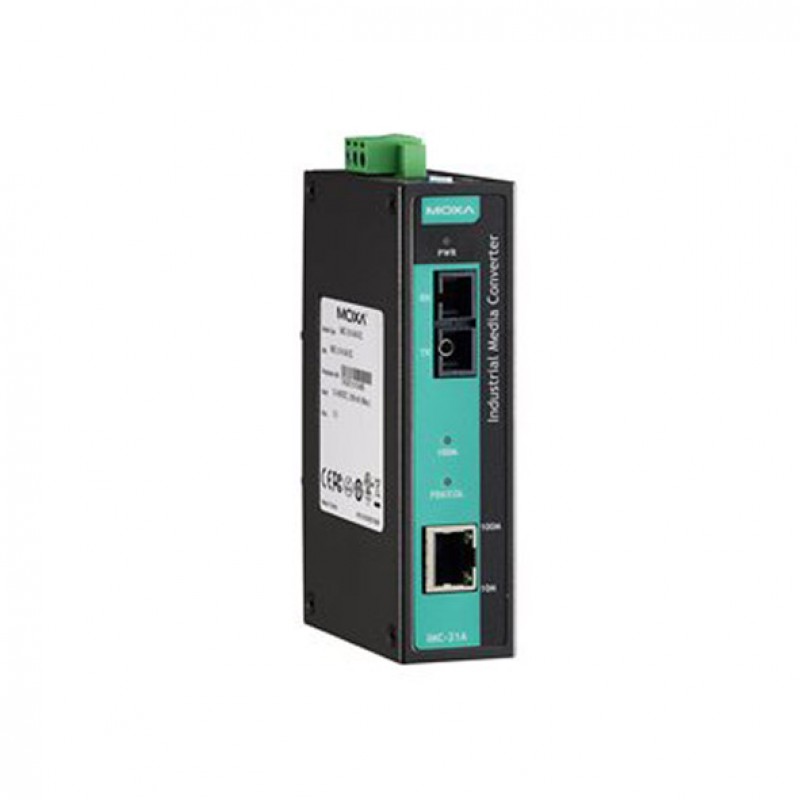

MOXA IMC-21A-M-SC Ethernet to Fiber Converter
- 1 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x 100BaseFX Ports (multi-mode SC connector)
- 5 KM Typical data transmission distance on fiber
- IP30-rated Metal body design
- 12 to 48 VDC input power range
- DIN-rail mounting
- -10 to 60°C operating temperature
.png)
Description
The IMC-21A industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN rail or in distribution boxes.
You can also find the IMC-21A-M-SC-T, IMC-21A-S-SC-T, and IMC-21A-M-ST models in the Industrial Media Converters.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA IMC-21A-M-SC Ethernet to Fiber Converter through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 SC Port |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | - |
| General | |
| Maximum cable length for data transfer | 5Km with multi mode fiber optic cable |
| MTBF | 353,000 hour |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 12 to 48 VDC, 265mA (Max.) |
| Overload Current Protection | Supported |
| Type of power input | Terminal input |
| Power Consumption | - |
| Physical Characteristics | |
| Standards and Certifications | Safety: UL 508, EMC: EN 55022/24, EMI: CISPR 22, FCC Part 15B Class A, EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 1 V/m, EN 61000-4-4 (EFT): Power: 1 kV; Signal: 1 kV, EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF), EN 61000-4-11, RoHS, CRoHS, WEEE, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6; MIL-HDBK-217F; IP30 |
| Housing | Metal |
| Dimensions | 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in) |
| Weight | 170 g (0.37 lb) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
