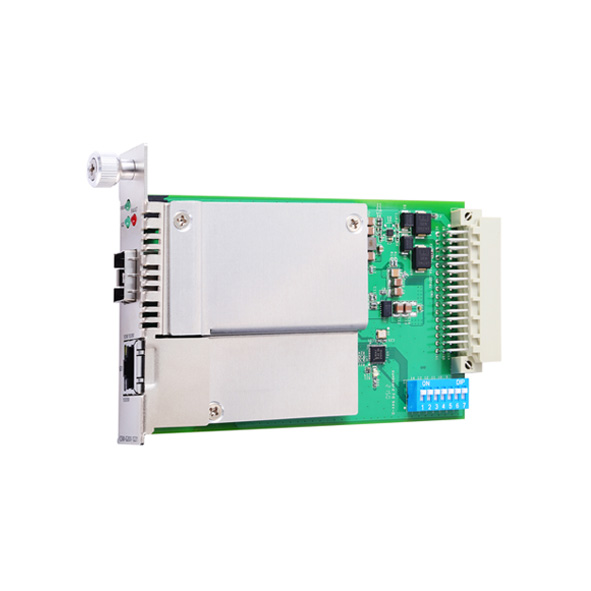

MOXA CSM-G200-1221 Slide-in Ethernet-to-Fiber Media Converter

MOXA CSM-G200-1221 Slide-in Ethernet-to-Fiber Media Converter
MOXA CSM-G200-1221 Slide-in Ethernet-to-Fiber Media Converter
MOXA CSM-G200-1221 Slide-in Ethernet-to-Fiber Media Converter
MOXA CSM-G200-1221 Slide-in Ethernet-to-Fiber Media Converter
MOXA CSM-G200-1221 Slide-in Ethernet-to-Fiber Media Converter

  • 1 x 100/1000BaseSFP Ports
  • 1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 12 VDC input power range
  • Fiber Module Type: SFP
  • 0 to 55°C operating temperature

  • Brand: MOXA
  • Model: CSM-G200-1221
0 reviews • Write a review
Datasheet
  • Operating Temperature (0 to 55°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet-to-Fiber Media Converters , Industrial Data Communications , Ethernet-to-Fiber Converters , Industrial Converters , Industrial Serial Connectivity , Industrial Media Converters , Converters , MOXA CSM-G200 Series

The CSM-G200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The module provides media conversion from 10/100/1000BaseT(X) to 100/1000BaseFX (SFP connector) and can be installed in any NRack System™ chassis.



You can also find the CSM-200-1218, CSM-200-1214, and CSM-200-1213 models in the Industrial Media Converters.



Enjoy the ease of online inquiries for the MOXA CSM-G200-1221 slide-in Ethernet-to-Fiber Media Converter. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 1 Port
10/100Mb (Megabit) POE Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
1000Mb Fiber optic multi mode (Gigabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
1000Mb Fiber optic single mode (Gigabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 1 Port
M12 port No
Alert Output No
Magnetic Isolation Protection No
eth to fiber : Standards and protocols
Protocols and work standards -
eth to fiber : General
Maximum cable length for data transfer -
MTBF 1,579,447 hrs
eth to fiber : Power Requirements
Input Voltage 12 VDC
Input Current 185 mA @ 12 VDC
Overload Current Protection Supported
Type of power input -
Power Consumption -
eth to fiber : Physical Characteristics
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF: 30 A/m; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Vibration: IEC 60068-2-6; MIL-HDBK-217F
Housing -
Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight 140 g (0.31 lb)
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Installation Can be installed in any NRack System™ chassis
