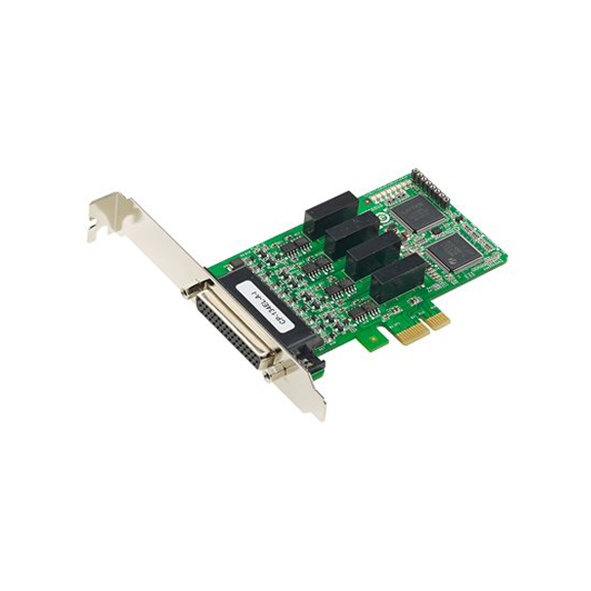

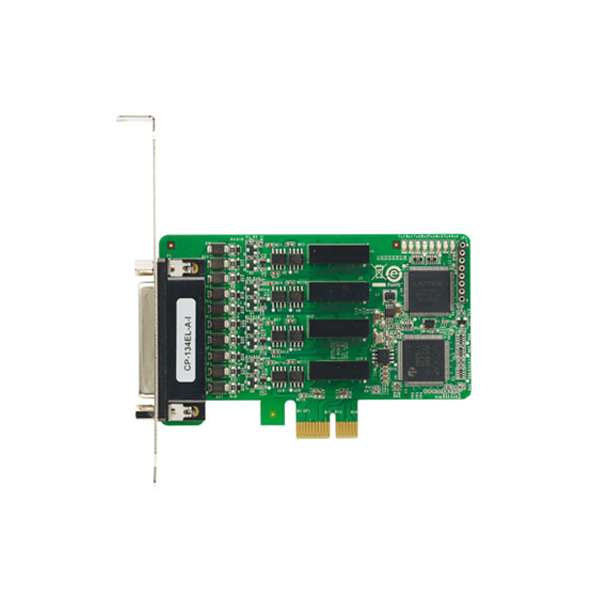

Name: MOXA CP-134EL-A-I-DB9M PCI Express Serial Board
Brand: MOXA
Availability: InStock

MOXA CP-134EL-A-I-DB9M PCI Express Serial Board

4 x RS-422/485 Serial ports (DB44 female connector)
2KV Electrical isolation and 4 KV Surge protection for serial ports
Supports maximum 921.6 kbps baud rate
128-byte FIFO and on-chip H/W, S/W flow control
Compatible Driver with Windows, Linux, and UNIX

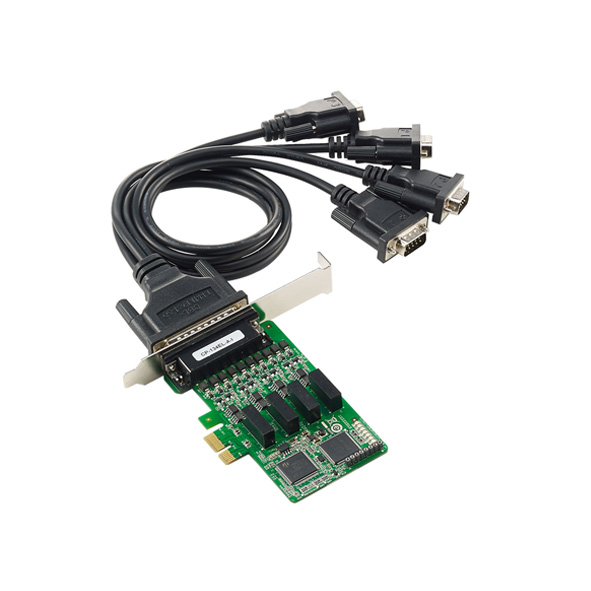

Included Cable: CBL-M44M9x4-50
0 to 55°C Operating Temperature

Brand: MOXA
Model: CP-134EL-A-I-DB9M

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing)

Factory Automation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Industrial Serial Connectivity , Multiport Serial Boards , PCIe/UPCI/PCI Serial Cards , Serial Cards , Serial Boards , PCIe/UPCI/PCI , PCIe/UPCI/PCI Boards , Industrial Converters , PCI Multiport Serial Cards , Factory Automation Products , Converters , MOXA CP-134EL-A-I Series

The CP-134EL-A-I is a smart PCI Express multiport serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The CP-134EL-A-I is compatible with all popular operating systems, and each of its eight serial ports supports data rates of up to 921.6 kbps and provides full modem control signals, ensuring compatibility with a wide range of serial peripherals. In addition, the CP-134EL-A-I works with PCI Express x1, allowing the board to be installed in any PCI Express slot.

Intelligent RS-485 for Easy Installation and Troubleshooting

Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along the network. Moxa’s new Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pulls high/low resistors. (2) One-click troubleshooting tells you what to change to make a deficient network viable.

You can also find the CP-134EL-A-I-DB25M and CP-134EL-A-I w/o Cable models in the Multiport Serial Cards.

Easy World Automation offers the easiest way to buy the MOXA CP-134EL-A-I-DB9M PCI Express Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

MULTIPORT SERIAL BOARDS : SERIAL INTERFACE
Comm. Controller	16C550C compatible
Number of Ports	4
Bus interface	PCI Express 1.0
Serial Standards	RS-422, RS-485
Connector	DB44 female
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Max. No. of Boards per PC	8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	XON/XOFF, None
Data Bits	5, 6, 7, 8
FIFO	128 bytes
Isolation	Yes : 2 KV
MULTIPORT SERIAL BOARDS : SERIAL SIGNALS
RS-232	-
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES
Windows Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64)/2022, Windows Embedded CE 5.0/ 6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers	Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS
Input Current	3,414 mA @ 3.3 VDC
Input Voltage	-
MULTIPORT SERIAL BOARDS : GENERAL
MTBF	433,077 hrs
LED Indicators	Built-in Tx, Rx LEDs for each port
MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS
Dimensions	67.21 x 103 mm (2.65 x 4.06 in)
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 85°C (-4 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
