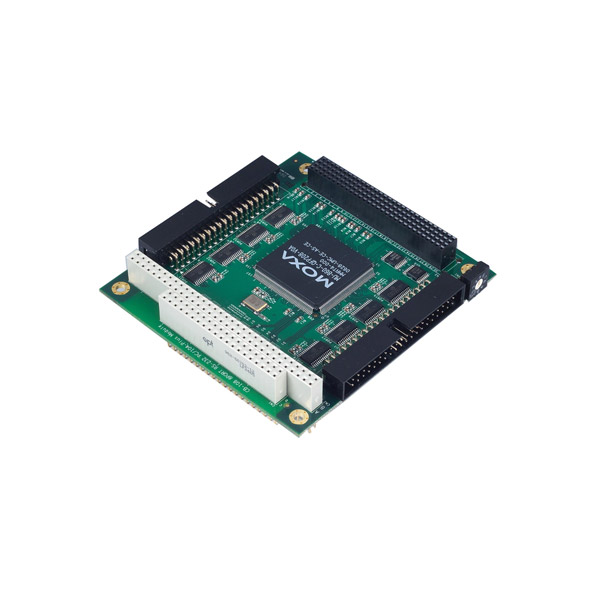

MOXA CB-108-T Serial Module Board

MOXA CB-108-T Serial Module Board
MOXA CB-108-T Serial Module Board
MOXA CB-108-T Serial Module Board
MOXA CB-108-T Serial Module Board
MOXA CB-108-T Serial Module Board

  • 8 x RS-232 Serial ports (40-pin box header connector)
  • Supports maximum 921.6 kbps baud rate
  • Compatible Drivers with Windows
  • 5 VDC input power range
  • -40 to 85°C operating temperature

  • Brand: MOXA
  • Model: CB-108-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Industrial Serial Connectivity , Multiport Serial Boards , Industrial Converters , PCI Multiport Serial Cards , Serial Boards , PCI boards , Multiport Serial Cards , Converters , Modules , PC/104 Serial Boards , PC/104 Modules , MOXA CB-108 Series

The CB-108 PC/104-Plus modules come with 8 RS-232 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.


You can also find the CB-108 model in the Multiport Serial Cards.


Easy World Automation offers the easiest way to buy the MOXA CB-108-T Serial Module Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

MULTIPORT SERIAL BOARDS : SERIAL INTERFACE
Comm. Controller 16C550C or compatible x 4
Number of Ports 8 Ports
Bus interface PC/104 plus bus
Serial Standards RS-232
Connector 40-pin box header
Baudrate 50 bps to 921.6 kbps
Max. No. of Boards per PC 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, None
Data Bits 5, 6, 7, 8
FIFO 128 bytes
Isolation No
MULTIPORT SERIAL BOARDS : SERIAL SIGNALS
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 -
RS-485-4w -
RS-485-2w -
MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES
Windows Drivers Windows CE 5.0/6.0, and Windows XP Embedded operating systems
Linux Drivers -
UNIX Drivers -
MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS
Input Current 153 mA @ 5 VDC
Input Voltage 5 VDC
MULTIPORT SERIAL BOARDS : GENERAL
MTBF 403,631 hrs
LED Indicators Built-in Tx, Rx LEDs for each port
MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS
Dimensions 90 x 96 mm (3.54 x 3.78 in)
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-3; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB
