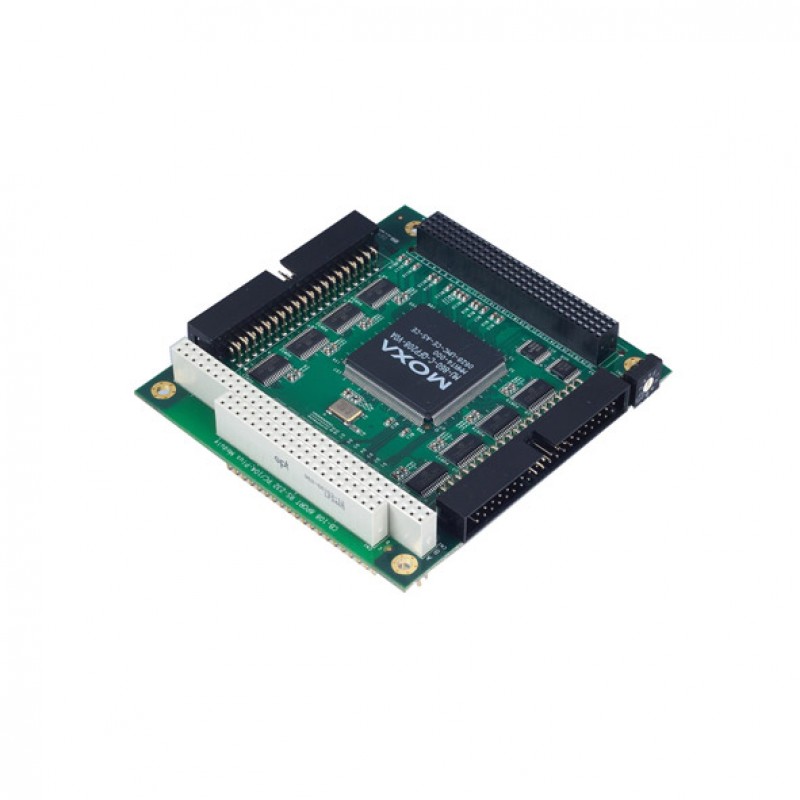

MOXA CB-108-T Serial Module Board
- 8 x RS-232 Serial ports
- 921.6 kbps maximum baudrate for fast data transmission
- On-chip hardware and software flow control
- Onboard Tx and Rx LED indicators for each port
- Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
- Easy maintenance with built-in LEDs and management software
- With PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface
- -40 to 85°C Operating Temperature
Description
The CB-108 PC/104-Plus modules come with 8 RS-232 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
You can also find the CB-108 model in the PCI Multiport Serial Cards.
Easy
World Automation offers the easiest way to buy the MOXA CB-108-T Serial Module Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman)
at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C or compatible x 4 |
| Number of Ports | 8 |
| Bus interface | PC/104 plus bus |
| Serial Standards | RS-232 |
| Connector | 40-pin box header |
| Baudrate | 50 bps to 921.6 kbps |
| Stop Bits | 1, 1.5, 2 |
| Parity | |
| Flow Control | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| POWER REQUIREMENTS | |
| Power requirement | 153 mA @ 5 VDC |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | Windows CE 5.0/6.0, and Windows XP Embedded operating systems |
| Linux Drivers | - |
| UNIX Drivers | - |
| GENERAL | |
| MTBF | 403,631 hrs |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, Environmental Testing, Safety, Vibration |
