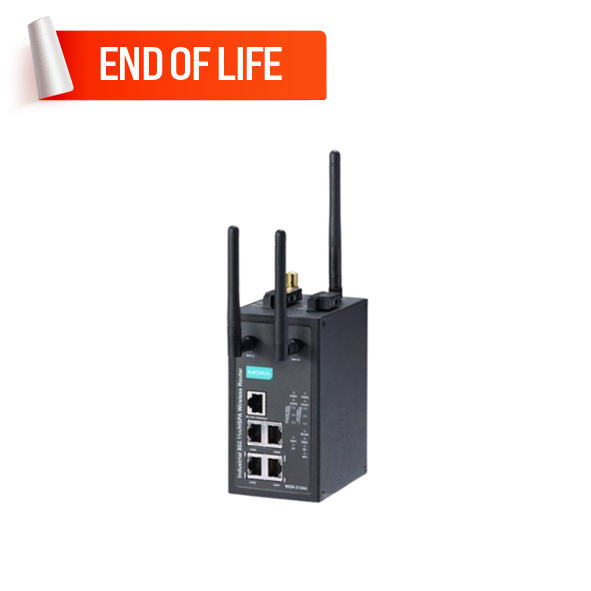

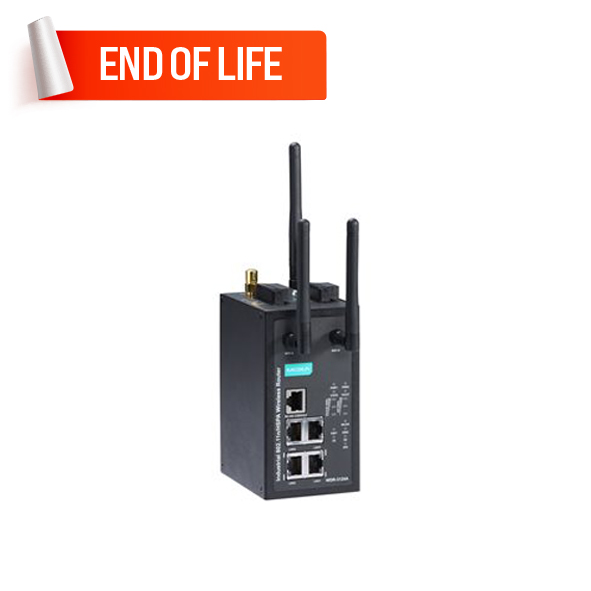

Name: MOXA WDR-3124A-US Wireless Router
Brand: MOXA
Availability: InStock

MOXA WDR-3124A-US Wireless Router

Supports GSM, GPRS, EDGE, UMTS, HSPA Standards
4 x 10/100/1000 Mbps ports (RJ45 connector)
DIN rail mountable
IP30-rated Aluminum body design
12 to 48 VDC Redundant dual power inputs
0 to 55°C operating temperature

Brand: MOXA
Model: WDR-3124A-US

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA CCG-1510-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-TW-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-US-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1520-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA OnCell 3120-LTE-1-AU Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA OnCell 3120-LTE-1-EU Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA OnCell 3120-LTE-1-EU-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Cellular Gateways/ Routers/ Modems , Cellular Routers , Wireless Routers , Industrial Cellular Routers and Gateways , Industrial Cellular Routers , Industrial Data Communications , Industrial Cellular Solutions , Routers , MOXA WDR-3124A Series

The WDR-3124A industrial wireless router combines 802.11n and cellular technologies to provide flexible wireless network connectivity. The WDR3124A comes with a built-in antenna and power isolation suitable for any harsh industrial environment. With DIN-rail mounting, wide operating temperature range models, and IP30 housing, the WDR-3124A is a convenient yet reliable solution for any industrial wireless application.

End of Life Product - No Replacement

Please note that the WDR-3124A-US Series has been phased. You can explore the OnCell G4302-LTE4 Series in the Industrial Cellular Routers and Gateways.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA WDR-3124A-US Wireless Router through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot	Yes : 2 slots (3 V)
Ethernet Ports	Yes : 4 x 10/100/1000 Mbps ports (RJ45 connector)
USB	No
Digital Input and Output	Yes : 2 electrically isolated inputs (+13 to +30 V for state “1” (On), +3 to -30 V for state “0” (Off))
Serial port	No
Alert Output	Yes: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Band Options	UMTS/HSPA 800 MHz / 850 MHz / 900 MHz / 1900 MHz / 2100 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
Cellular Standards	GSM, GPRS, EDGE, UMTS, HSPA
Cellular Antenna Connectors	1 x SMA female
WLAN Standards	802.11a/b/g/n, 802.11i Wireless Security
WLAN Antenna Connector	2 x RP-SMA female
GPS Antenna Connector	1 x SMA female
3g modem : Radio specifications
Radio Connection type	GuaranLink
Maximum data transfer speed of 2G	EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6 kbps
Maximum data transfer speed of 3G	14.4 Mbps download speed, 5.76 Mbps upload speed
Maximum data transfer speed of 4G	-
WiFi Radio Frequency	No
3g modem : Software Specifications
Routing Redundancy	No
VPN	IPsec VPN
Firewall	Filter: MAC, IP protocol, port-based
Time Management	SNTP
Management	ARP, DDNS, DHCP Client, DNS, HTTP, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Wireless Search Utility, Serial Console, Telnet Console, Remote SMS Control, OnCell Central Manager, GuaranLink
3g modem : General
LED Indicators	PWR1, PWR2, STATUS, FAULT, CELLULAR SIGNAL, WIFI SIGNAL, WLAN, SIM1, SIM2, 2G, 3G, GPS
MTBF	382,851 hrs
Operating mode	Router, 3G Modem
3g modem : Standards and protocols
Protocols	IPsec
3g modem : Features and capabilities
Send and receive SMS	Yes
3g modem : Security
Security and Encryption	Security: HTTPS, IPsec, SSH, Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5
Authentication	MD5 and SHA (SHA-256), PSK/X.509/RSA
3g modem : Power Requirements
Power Connector	Terminal block
Power Consumption (Output Adapter)	-
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
POE Support	No
Input Current	0.7 A @ 12 VDC, 0.2 A @ 48 VDC
Reverse Polarity Protection	Supported
3g modem : Buttons
Power button	No
Reset	Yes
3g modem : Physical Characteristics
Installation	DIN rail mountable housing
Dimensions	66.3 x 124 x 90 mm (2.61 x 4.88 x 3.54 in)
Housing	Aluminum
Weight	1,280 g (2.82 lb)
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Type of Use	Industrial environment
Standards and Certifications	Safety: EN 60950-1, UL 60950-1; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, Radio Frequency: EN 301 489-1, EN 301 489-7, EN 301 511, EN 301 908, EN 300 328, EN 301 893, FCC ID SLE-WAPN005; IP30; Telcordia SR332

Datasheet

MOXA WDR-3124A-US Wireless Router
