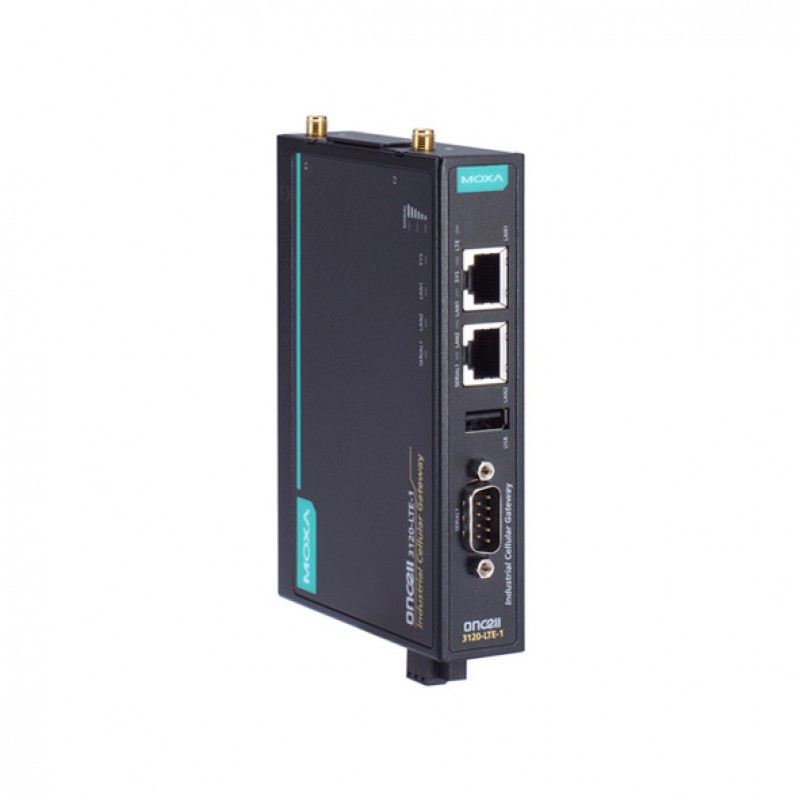

MOXA OnCell 3120-LTE-1-EU Industrial Cellular Gateway
- Low power consumption (40 mW on standby)
- GuaranLink for reliable cellular connectivity
- Dual cellular operator backup with dual-SIM
- Rugged hardware design well suited for hazardous locations (ATEX Zone 2/ IECEx)
- VPN secure connection capability with IPsec, GRE, and OpenVPN protocols
Description
The OnCell 3120-LTE-1 Series is a set of reliable, secure, low power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage. These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios. With its efficient power saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules. To enhance industrial reliability, the OnCell 3120- LTE-1 features GuaranLink to ensure robust cellular connectivity.
Remote Access Gateway with VPN and Network Security
• Managed by centralized IP management software, OnCell Central Manager
• Secure and reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality
• Cybersecurity features based on IEC 62443-4-2
Industrial-grade Reliability
• Rugged hardware design well suited for hazardous locations (ATEX, C1D2, IECEx)
• GuaranLink for reliable cellular connectivity
• Low power consumption: Less than 40 mW in standby mode
You can also find the OnCell 3120-LTE-1-EU-T, OnCell3120-LTE-1-AU, and OnCell G3470A-LTE-T models in the Industrial Cellular Gateways.
Enjoy the ease of online
inquiries for the MOXA OnCell 3120-LTE-1-EU Industrial Cellular Gateway. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Memory card slot for storage | |
| MicroUSB | |
| SIM card slot | : 2 SIM card slot |
| WAN | |
| LAN | : 2 RJ45 10/100Mbps Ports |
| USB | : 1 USB 2.0 Type A |
| FXO / FXS | |
| DSL | |
| Digital Input and Output | |
| Serial port | : 1 RS-232/422/485 port with DB9 male connector |
| Alert Output | - |
| Radio specifications | |
| Standards and Wireless Standards | |
| 2G , 3G , 4G Standards | GSM, UMTS, HSPA, LTE |
| WiFi Antenna | |
| 4G / 3G / 2G Antenna | 2 SMA female |
| WiFi Gain Antenna | |
| 4G / 3G / 2G Gain Antenna | - |
| Maximum WiFi data transfer speed | |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | 7.2 Mbps DL, 5.76 Mbps UL |
| Maximum data transfer speed of 4G | 10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL |
| WiFi Radio Frequency | |
| 2G network frequency | 900 MHz / 1800 MHz |
| 3G network frequency | 2100 MHz / 900 MHz |
| 4G network frequency | LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28 (700 MHz) |
| Number of radio channels | - |
| Maximum direct range | - |
| Maximum WiFi Output Power | |
| Radio Channel Bandwidth | |
| Software Specifications | |
| VPN | VPN secure connection capability with IPsec, GRE, and OpenVPN protocols |
| Firewall | Filter: MAC, IP protocol, port-based, Access IP list |
| WPS | |
| Cloud computing feature | |
| Serial performance | - |
| General | |
| Operating mode | LTE gateway |
| Management | OnCell Central Manager, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility |
| Standards and protocols | |
| Protocols | DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Consol, NAT, Port forwarding |
| Features and capabilities | |
| 3G phone calls | - |
| Send and receive SMS | |
| Security | |
| Security and Encryption | DES, 3DES, AES, MD5, SHA-1, DH2, DH5, Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC |
| Authentication | PSK/X.509/RSA |
| Serial security | - |
| SSID | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | 5 W (typ.) |
| POE Support | |
| Battery | |
| Type of power input | Terminal |
| Buttons | |
| Power button | |
| 3G / WAN button | |
| WPS button | |
| Reset | |
| LED Indicators | |
| Phone | |
| SMS | |
| WLAN | |
| 4G / 3G / 2G | |
| WAN | |
| LAN | |
| Power | |
| Internet | |
| Wireless Signal Strength | |
| WPS | |
| Physical Characteristics | |
| Dimensions | 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in) |
| Weight | 550 g (1.22 lb) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | EMC, EMI, Freefall, Hazardous Locations, Radio Frequency, EN 301489-1/17, EN 301511, EN 301908-1 AS/CA S042, EN 62311(MPE SAR), Safety, Shock, Vibration |
