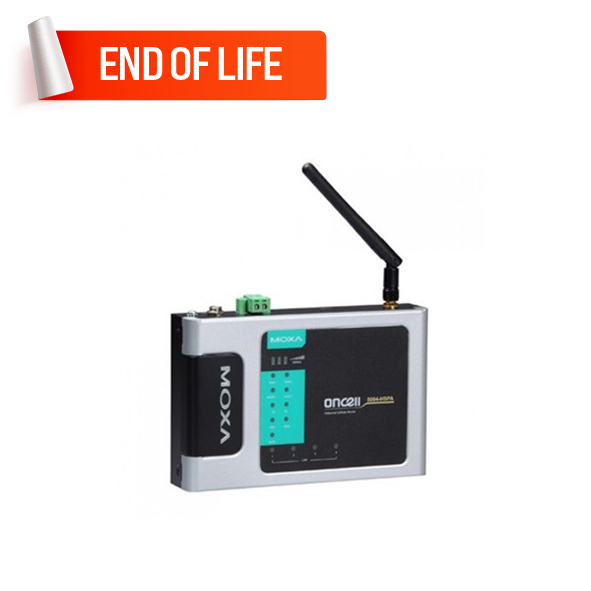

Name: MOXA OnCell 5004-HSPA Industrial Cellular Router
Brand: MOXA
Availability: OutOfStock

MOXA OnCell 5004-HSPA Industrial Cellular Router

Supports GSM/GPRS/EDGE/UMTS/HSPA Standards
5 x 10/100 Mbps ports (RJ45 connector)
IP30-rated Aluminum body design
12 to 48 VDC Redundant dual power inputs
DIN rail and wall-mountable
-30 to 55°C operating temperature

Brand: MOXA
Model: OnCell 5004-HSPA

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-30 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA CCG-1510-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-TW-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-US-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1520-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Cellular Gateways/ Routers/ Modems , Cellular Routers , Industrial Cellular Routers and Gateways , Industrial Cellular Routers , Industrial Data Communications , Industrial Cellular Solutions , Routers , Road Transportation Products , MOXA OnCell 5104-HSPA Series

The OnCell 5004/5104-HSPA series are high-performance industrial-grade cellular routers that allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. Both products provide the functionality of a cellular router, firewall, and switch in one device, and to ensure zero data loss and on-demand cellular communication, the OnCell 5004/5104-HSPA is integrated with the GuaranLink function. The difference between the OnCell 5004- HSPA and OnCell 5104-HSPA is that the OnCell 5104-HSPA comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5004-HSPA can be placed on a desktop or wall-mounted, whereas the OnCell 5104-HSPA has an IA design and can be attached to a DIN rail. Both products use 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 kV magnetic isolation protection to keep your system safe from unexpected electrical discharges.

End of Life Product - Replacement Available

Please note that the OnCell 5004/5104-HSPA Series has been phased out and replaced by the OnCell G4302-LTE4 Series.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA OnCell 5004-HSPA Industrial Cellular Router through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot	Yes : 2 slots (3 V)
Ethernet Ports	Yes : 5 x 10/100 Mbps ports (RJ45 connector)
USB	No
Digital Input and Output	Yes : 2 electrically isolated inputs (+13 to +30 V for state “1” (On), +3 to -30 V for state “0” (Off))
Serial port	No
Alert Output	Yes : 1 relay output with current carrying capacity of 1 A @ 24 VDC
Band Options	Five-band UMTS/HSPA 800/850/AWS/1900/2100 MHz, Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
Cellular Standards	GSM/GPRS/EDGE/UMTS/HSPA
Cellular Antenna Connectors	Rubber SMA
WLAN Standards	No
WLAN Antenna Connector	No
GPS Antenna Connector	No
3g modem : Radio specifications
Radio Connection type	GuaranLink
Maximum data transfer speed of 2G	EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6 kbps
Maximum data transfer speed of 3G	14.4 Mbps download speed, 5.76 Mbps upload speed
Maximum data transfer speed of 4G	-
WiFi Radio Frequency	No
3g modem : Software Specifications
Routing Redundancy	No
VPN	IPsec VPN
Firewall	NAT, port forwarding, WAN IP filtering, static route
Time Management	No
Management	Utilities: OnCell Search Utility; Configuration and Management Options: SNMP v1/v2c/v3, Web/ Telnet/Serial Console, SSH, Remote SMS Control, Auto IP Report; Private IP Solution: OnCell Central Manager
3g modem : General
LED Indicators	-
MTBF	441,000 hrs
Operating mode	Router, 3G Modem
3g modem : Standards and protocols
Protocols	ARP, DDNS, DHCP/BOOTP, DNS Relay, HTTP, HTTPS, ICMP, IPSec, PPP, PPPoE, SMTP, SNTP, SSL, TCP/IP, Telnet, UDP
3g modem : Features and capabilities
Send and receive SMS	Yes
3g modem : Security
Security and Encryption	HTTPS/SSL, IPsec, SSH
Authentication	Local user-name and password
3g modem : Power Requirements
Power Connector	1 terminal block, 1 power jack
Power Consumption (Output Adapter)	12 to 48 VDC, 400 mA (idle), 900 mA (max.)
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
POE Support	No
Input Current	-
Reverse Polarity Protection	-
3g modem : Buttons
Power button	No
Reset	No
3g modem : Physical Characteristics
Installation	DIN rail and wall mouniting
Dimensions	158 x 103 x 34 mm (6.22 x 4.06 x 1.34 in)
Housing	Aluminum
Weight	505±5 g
Operating Temperature	-30 to 55°C (-22 to 131°F)
Storage Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Type of Use	Industrial environment
Standards and Certifications	Safety: UL 60950-1; EMC: FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 55024; Radio: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908; IP30
