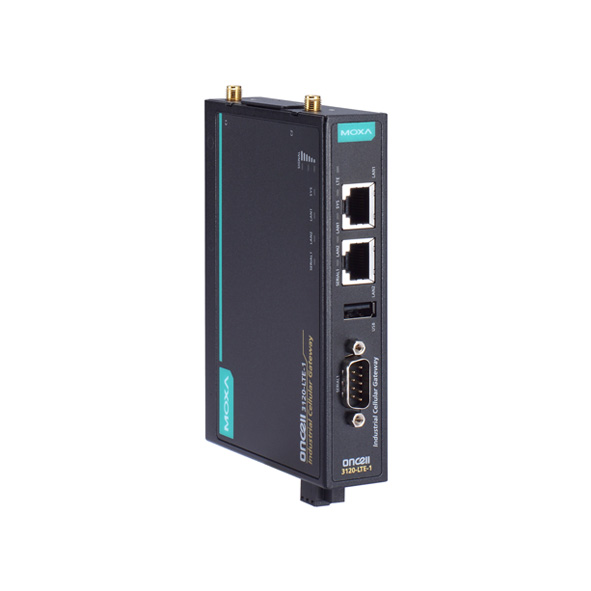

Name: MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway
Brand: MOXA
Availability: InStock

MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway

Supports AU Frequency Bands
Supports LTE Cat. 1, HSPA, UMTS, EDGE, GPRS, GSM Standards
2 x 10/100BaseT(X) Ports (RJ45 connector)
1 x RS-232/422/485 Serial port (DB9-M connector)
9 to 36 VDC input power range
IP30-rated metal body design
DIN-rail and Wall mounting
-30 to 70° C Operating Temperature

Brand: MOXA
Model: OnCell 3120-LTE-1-AU-T

0 reviews • Write a review

Datasheet

Operating Temperature (-30 to 70°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Freefall (IEC 60068-2-32)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA CCG-1510-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-TW-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-US-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1520-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Cellular Gateways/ Routers/ Modems , Cellular Gateways , Industrial Cellular Routers and Gateways , Industrial Cellular Gateways , Industrial Data Communications , Industrial Cellular , Industrial Cellular Solutions , Oil & Gas Products , Gateways , MOXA OnCell 3120-LTE-1 Series

The OnCell 3120-LTE-1 Series is a set of reliable, secure, low-power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage. These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios. With its efficient power-saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules. To enhance industrial reliability, the OnCell 3120- LTE-1 features GuaranLink to ensure robust cellular connectivity.

Remote Access Gateway with VPN and Network Security

• Managed by centralized IP management software, OnCell Central Manager

• Secure and reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality

• Cybersecurity features based on IEC 62443-4-2

Industrial-grade Reliability

• Rugged hardware design well suited for hazardous locations (ATEX, C1D2, IECEx)

• GuaranLink for reliable cellular connectivity

• Low power consumption: Less than 40 mW in standby mode

You can also find the OnCell 3120-LTE-1-EU-T, OnCell3120-LTE-1-AU, and OnCell 3120-LTE-1-EU models in the Industrial Cellular Gateways.

You can explore our wide range of products and enquire about the MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

3g modem : Interface
SIM card slot	Yes : 2 x SIM card slots (Nano SIM)
Ethernet Ports	Yes : 2 x 10/100BaseT(X) Ports (RJ45 connector)
USB	Yes : 1 x USB 2.0 Type A
Digital Input and Output	No
Serial port	Yes : 1 x RS-232/422/485 port (DB9 male connector)
Alert Output	No
Band Options	LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 (1800 MHz) / LTE Band 18 (850 MHz) / LTE Band 19 (850 MHz) /LTE Band 26 (850 MHz) / LTE Band 28 (700 MHz)
Cellular Standards	LTE Cat. 1, HSPA, UMTS, EDGE, GPRS, GSM
Cellular Antenna Connectors	2 x SMA female
WLAN Standards	No
WLAN Antenna Connector	No
GPS Antenna Connector	No
3g modem : Radio specifications
Radio Connection type	GuaranLink
Maximum data transfer speed of 2G	-
Maximum data transfer speed of 3G	7.2 Mbps DL, 5.76 Mbps UL
Maximum data transfer speed of 4G	10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL
WiFi Radio Frequency	No
3g modem : Software Specifications
Routing Redundancy	No
VPN	IPsec VPN, OpenVPN (client and server)
Firewall	Filter: MAC, IP protocol, port-based, Access IP list
Time Management	SNTP Client
Management	GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS, Control, Power Saving, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility
3g modem : General
LED Indicators	-
MTBF	585,775 hrs
Operating mode	LTE gateway
3g modem : Standards and protocols
Protocols	-
3g modem : Features and capabilities
Send and receive SMS	Yes
3g modem : Security
Security and Encryption	Security: HTTPS, Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5
Authentication	PSK/X.509/RSA
3g modem : Power Requirements
Power Connector	Terminal block
Power Consumption (Output Adapter)	5 W (typ.)
Input Voltage	9 to 36 VDC
POE Support	No
Input Current	0.8 A (max.)
Reverse Polarity Protection	Supported
3g modem : Buttons
Power button	Yes
Reset	Yes
3g modem : Physical Characteristics
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Dimensions	128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)
Housing	Metal
Weight	550 g (1.22 lb)
Operating Temperature	-30 to 70°C (-22 to 158°F)1
Storage Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Type of Use	Industrial environment
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz, IEC 61000-4-8: 30 A/m; Freefall: IEC 60068-2-32; Hazardous Locations: ATEX, IECEx, Class I Division 2; Radio Frequency: PTCRB, FCC ID SLE, LE910CXNF; Radio: RCM, KC, JATE, NCC, TELEC; Carrier Approvals: Verizon, AT&T; Cellular Standards: EN 301511, EN 301908-1, EN 62311(MPE SAR), AS/CA S042, EN 301489-1/-52; Safety: IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product :RoHS, CRoHS, WEEE; IP30; Telcordia SR332

Datasheet

MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway
