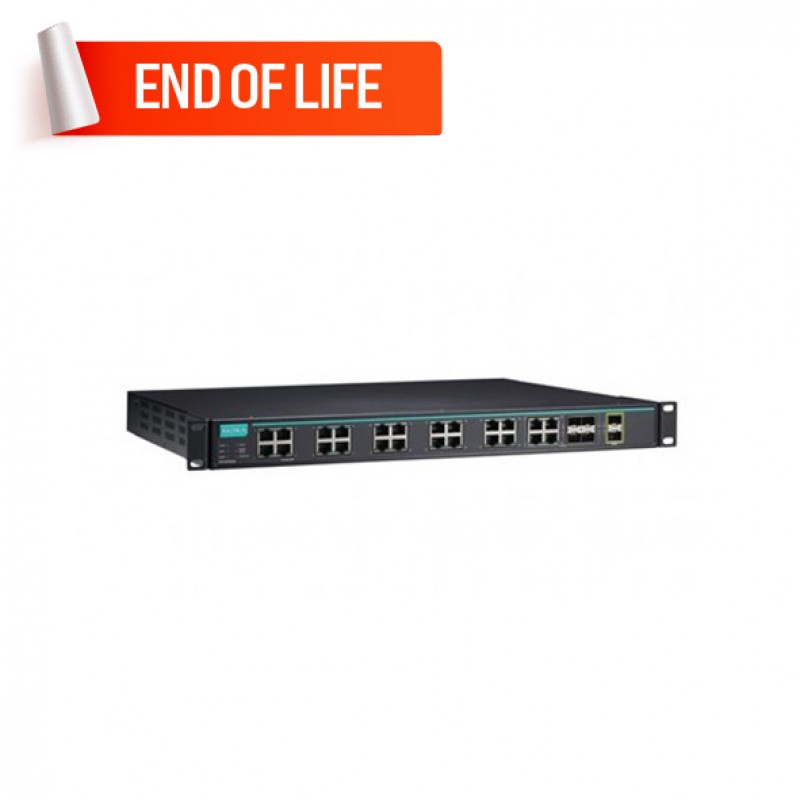

MOXA ICS-G7526A-4GTXSFP-2XG-HV-HV Rackmount Ethernet Switches
- Layer 2 switching functionality
- 20 x 10/100/1000Mbps T(x) ports
- 4 Gigabit Combo ports, 2 x 10Gb SFP+ slots
- Rackmount installation design
- 100 to 240 VAC Redundant dual inputs
- IP30-rated Metal body design
- -40 to 75°C operating temperature
.png)
Description
Process and transportation automation applications combine data, voice, and video, requiring high performance and reliability. The ICS-G7526A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports, making them ideal for large-scale industrial networks.
The ICS-G7526A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
You can also find the ICS-G7526A-20GSFP-2XG-HV-HV-T and ICS-G7526A-8GSFP-2XG-HV-HV-T models in the Rackmount Ethernet Switches.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA ICS-G7526A-4GTXSFP-2XG-HV-HV Rackmount Ethernet Switches through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 26 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 20 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 2 x 10Gb SFP+ slots, 1 x USB Port (Type A connector), 1 x Console Port (Type B connector), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.83/0.47 A @ 110/220 VAC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110 to 220 VAC |
| Operating Voltage | 85 to 264 VAC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 419,734 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in) |
| Housing | Metal |
| Installation | Rack mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 60950-1, UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 5300g(11.69lb |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET |
| Protocols and management standards | ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control, 802.1Q, GMRP, GVRP, IGMP v1/v2/v3 |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
