Description

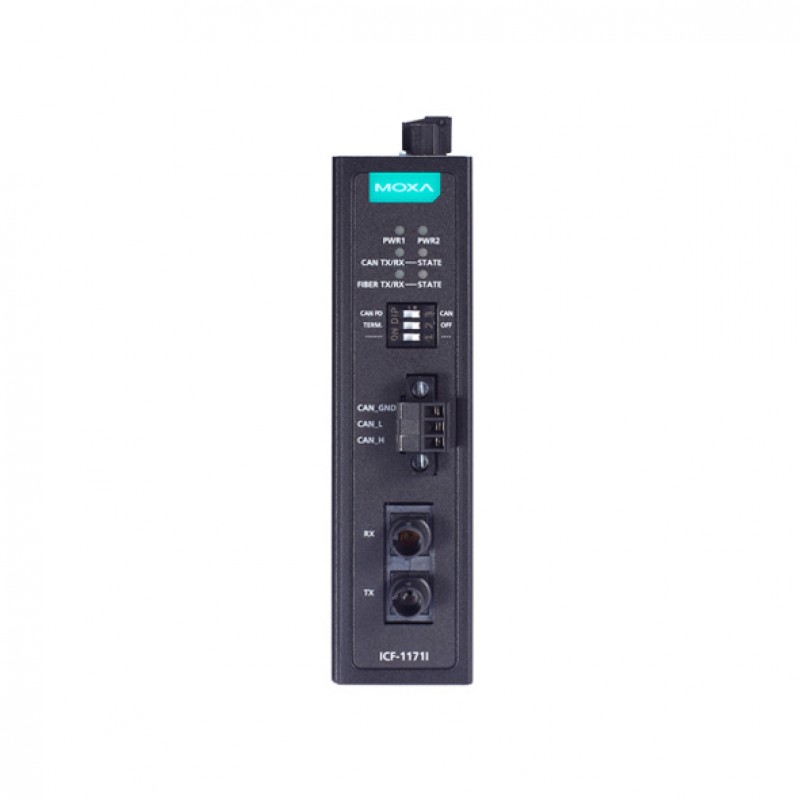

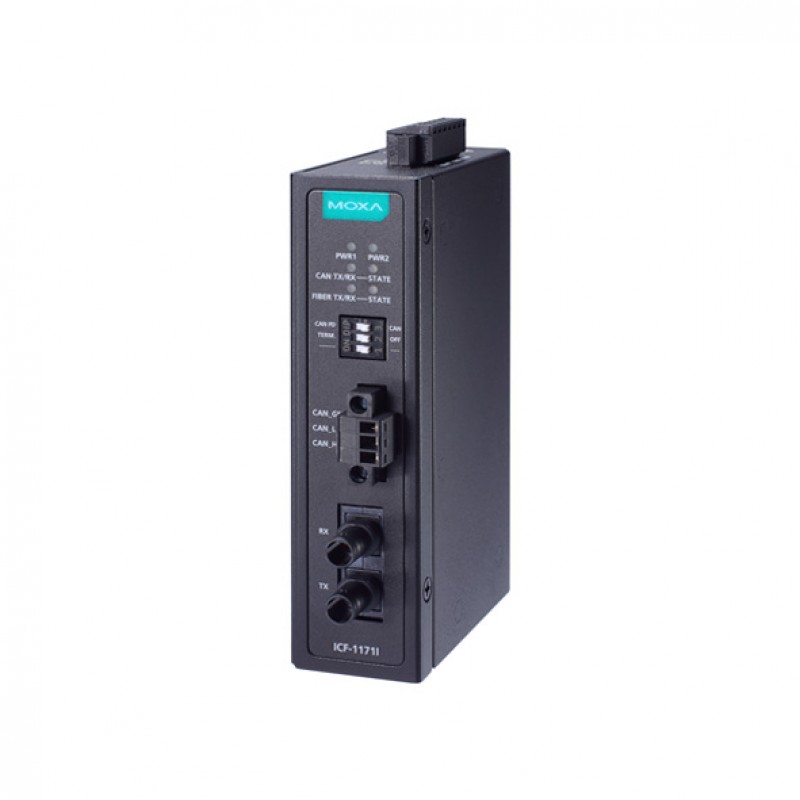

The ICF-1171I Series CAN-to-fiber converters are used in
pairs to connect two CAN 2.0 or two CAN FD devices or networks via single-mode
or multi-mode optical fiber. The ICF-1171I provides 2-kV isolation protection
for the CAN interface and dual power inputs to ensure that your CANbus system
will work uninterrupted.
Extend the CAN Bus Transmission Distance
The total transmission distance of a CAN 2.0 or CAN FD
system can be extended by 2 km (multi-mode fiber) or by 40 km (single-mode
fiber) using ICF-1171I converters, regardless of the CAN baud rate.
Easily Fulfil Various Communication Scenarios
Two CAN 2.0 networks or CAN FD networks can communicate with
each other using different baud rates. The ICF-1171I converters can
automatically detect the baud rate of the connected CAN 2.0 device and apply the baud rate to itself. Therefore, users do not need to know the baud rate of the
connected CAN 2.0 device. This is an extremely convenient feature. Baudrates
can also be set to a predefined value via rotary switches.
Easily Troubleshoot Communication Issues
It is easy to check if an issue exists on the CAN bus or the
Fiber link. The ICF-1171I converters are provided with LEDs that indicate the
fiber link state, fiber communication status, CAN bus state, and CAN bus
communication status.
You can also find the ICF-1171I-S-ST-T model in the Protocol Converters.
You can explore our wide range of products and enquire about
the MOXA ICF-1171I-S-ST CANbus to Fiber Converter for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
CAN Communication | |
---|---|
CAN Interface | CAN_L, CAN_H, CAN Signal GND |
Protocols | CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting) |
Connector Type | Single-mode ST connector |
Termination Resistor | N/A, 120 ohms (by DIP) |
Isolation Protection | 2 kV (built-in) |
Transmission Distance | typical distance 40 km |
Power Requirements | |
Input Voltage | 12 to 48 VDC |
Input Current | 188.5 mA (max.) |
General | |
MTBF | 2,412,885 hrs |
Physical Characteristics | |
Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
Housing | Metal |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Weight | 294 g (0.65 lb) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Safety | UL 62368-1, EN 62368-1 |
EMC | EN 55032/35 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF |
