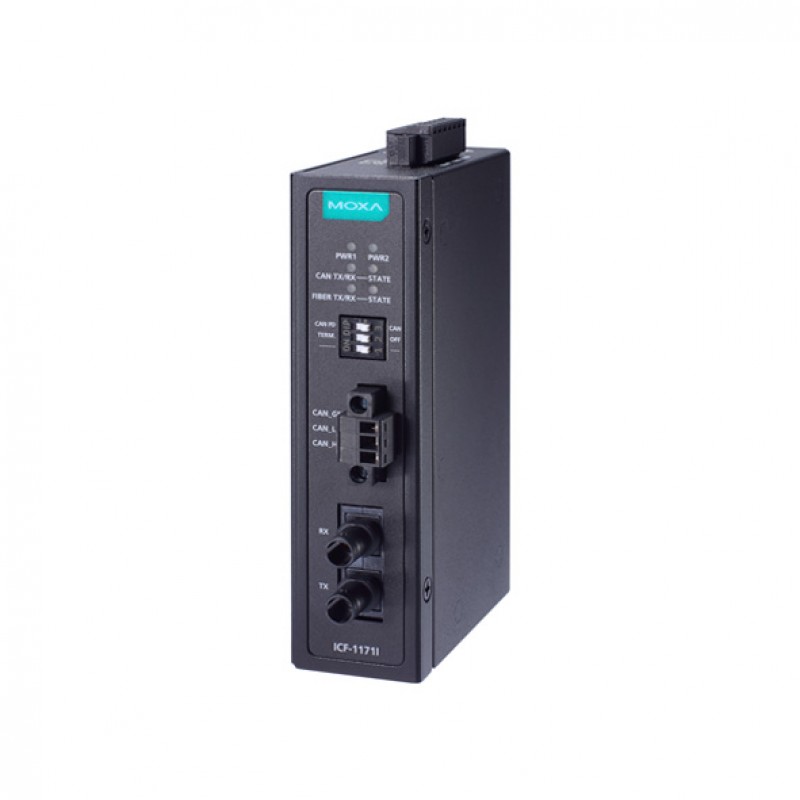

MOXA ICF-1171I-M-ST-T CANbus to Fiber Converter
- 1 x CAN Port with 2 KV isolation protection
- 1 x 100BaseFX (Multi-mode ST connector)
- 2 km Typical data transmission distance on fiber
- 12 to 48 VDC dual power inputs
- IP30-rated Metal body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature
.png)
Description
The ICF-1171I Series CAN-to-fiber converters are used in
pairs to connect two CAN 2.0 or two CAN FD devices or networks via single-mode
or multi-mode optical fiber. The ICF-1171I provides 2-kV isolation protection
for the CAN interface and dual power inputs to ensure that your CANbus system
will work uninterrupted.
Extend the CAN Bus Transmission Distance
The total transmission distance of a CAN 2.0 or CAN FD
system can be extended by 2 km (multi-mode fiber) or by 40 km (single-mode
fiber) using ICF-1171I converters, regardless of the CAN baud rate.
Easily Fulfil Various Communication Scenarios
Two CAN 2.0 networks or CAN FD networks can communicate with
each other using different baud rates. The ICF-1171I converters can
automatically detect the baud rate of the connected CAN 2.0 device and apply the baud rate to itself. Therefore, users do not need to know the baud rate of the
connected CAN 2.0 device. This is an extremely convenient feature. Baudrates
can also be set to a predefined value via rotary switches.
Easily Troubleshoot Communication Issues
It is easy to check if an issue exists on the CAN bus or the
Fiber link. The ICF-1171I converters are provided with LEDs that indicate the
fiber link state, fiber communication status, CAN bus state, and CAN bus
communication status.
You can also find the ICF-1171I-M-ST, ICF-1171I-S-ST, and ICF-1171I-S-ST-T models in the Protocol Converters.
Enjoy the ease of online inquiries for the MOXA ICF-1171I-M-ST-T CANbus to Fiber Converter. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 ST Port |
| Serial port | |
| USB | |
| Other ports | : 1 x CAN Port (CAN_L, CAN_H, CAN Signal GND) |
| Isolation | : 2 kV (built-in) |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | Rate up to 1 Mbps |
| Maximum data transmission distance | 2KM on the fiber |
| Minimum output power converter | -20dBm |
| Sensitivity to receiving information | -32dBm |
| Wavelength | 1310 |
| Require cable diameter | 62.5/125 μm |
| Flow Control | - |
| Protocols | CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting) |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | - |
| Reverse Polarity Protection | - |
| Input Voltage | 12 to 48 VDC |
| Input Current | 188.5 mA (max.) |
| Connector | Terminal block |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 2,412,885 hrs |
| Physical Characteristics | |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; International Approval: KC; Safety: UL 62368-1, EN 62368-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 294 g (0.65 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
