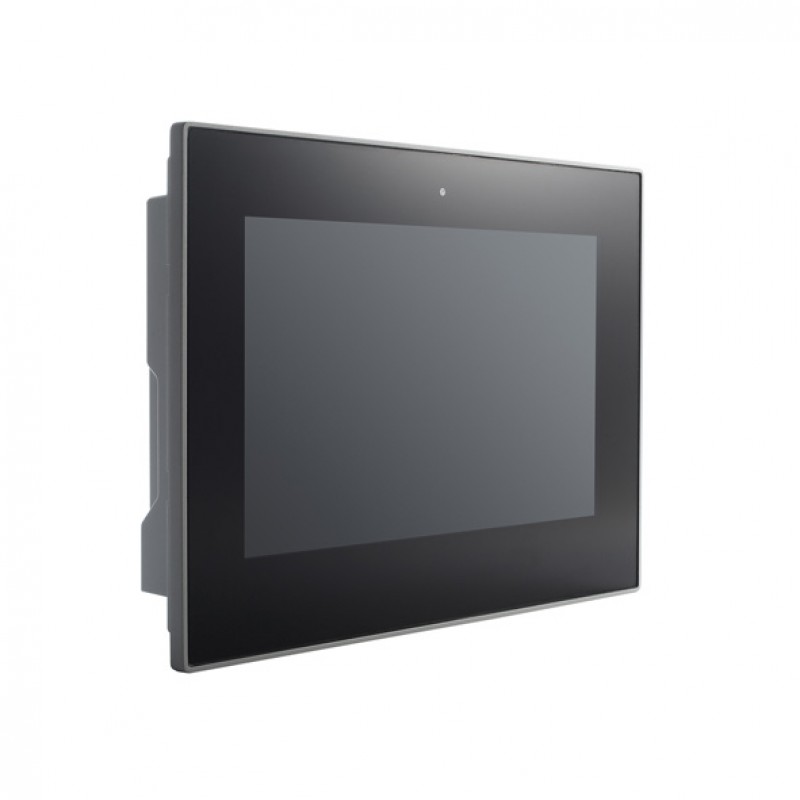

MOXA EXPC-F2120W-TL3-AC Panel Computer
- 12.1" (16:10) 1,200 nits Panel
- 100 to 240 VAC power input
- -40 to 70°C operating temperature
- CPU: 'Intel® Core™ i3- 1115G4E
- 12.1 inch 16:10 display
- High-performance Tiger Lake Intel® Core™ i7/ Core™ i3 or Intel® Celeron® processor
- Built-in light sensor for auto brightness control
- 1200-nit sunlight-readable anti-glare display
.png)
.png)
Description
The EXPC-F2120W Series consists of 12.1-inch panel computers
with an 11th Gen Intel Core™ i processor that delivers a reliable, durable, and
versatile platform for use in industrial, hazardous, and mission-critical
environments. The EXPC-F2120W panel computers come with a rich set of
communication interfaces to satisfy all your industrial application scenarios.
The panel computers are also provided with DisplayPort and VGA video outputs
for extending the display.
The EXPC-F2120W panel computers come in a fanless design for
operations in the -40 to 70°C temperature range and a streamlined enclosure for
efficient heat dissipation, making them the most reliable industrial platforms
available for harsh, hot, outdoor environments such as oil and gas fields,
drilling platforms, and power stations, as well as smart heater solutions. The
panel computers are also specifically designed with sunlight-readable features
such as a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touch
screen, optical bonding, and anti-glare design, to provide an excellent user
experience for outdoor applications.
You can also find the EXPC-F2120W-TL1-AC and EXPC-F2120W-TL3-DC models in the Displays And Panel Computers.
You can explore our wide range of products and enquire about
the MOXA EXPC-F2120W-TL3-AC Panel Computer for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
| Display | |
|---|---|
| Panel Size | 12.1 in |
| Aspect Ratio | 16:10 |
| Response Time | 18 ms (TR, gray to gray), 12 ms (TD, gray to gray) |
| Contrast Ratio | 750:1 |
| Viewing Angles | Horizontal: 85°/85°, Vertical: 85°/85° |
| Resolution | - |
| Pixels | 1280 x 800 |
| Light Intensity | 1200 nits |
| Active Display Area | 304.128 (H) x 228.096 (V) mm |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Serial Interface | |
| Serial Standards | RS-232/422/485 ports x 3, software selectable (DB9 male) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Power Requirements | |
| Input Voltage | DC Models: 9 to 36 VDC, AC Models: 100 to 240 VAC |
| Power Consumption | 60 W (max), 100 W (with thermal heater) |
| Physical Characteristics | |
| Dimensions | 336.69 x 255.17 x 94.05 mm (13.25 x 10.05 x 3.70 in) |
| Housing | Aluminum |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -45 to 75°C (-49 to 167°F) |
| Relative humidity | - |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| Weight | 6,200 g (13.67 lb) |
| Anti-Vibration | IEC 60068-2-27 compliant (with CFexpress card, 20G) |
| Safety | UL 62368-1, EN 62368-1, IEC 62368-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Hazardous Location | EN / IEC 60079-0, EN / IEC 60079-7, EN / IEC 60079-15, Certification process underway |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.8, 2.6, 3.5, 5 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV(AC), 1 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC L-L), 1 kV (DC L-G); Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
| IP Protection | IP66 (front), IP42 (rear; with all IOs plugged in) |
| Mounting | - |
