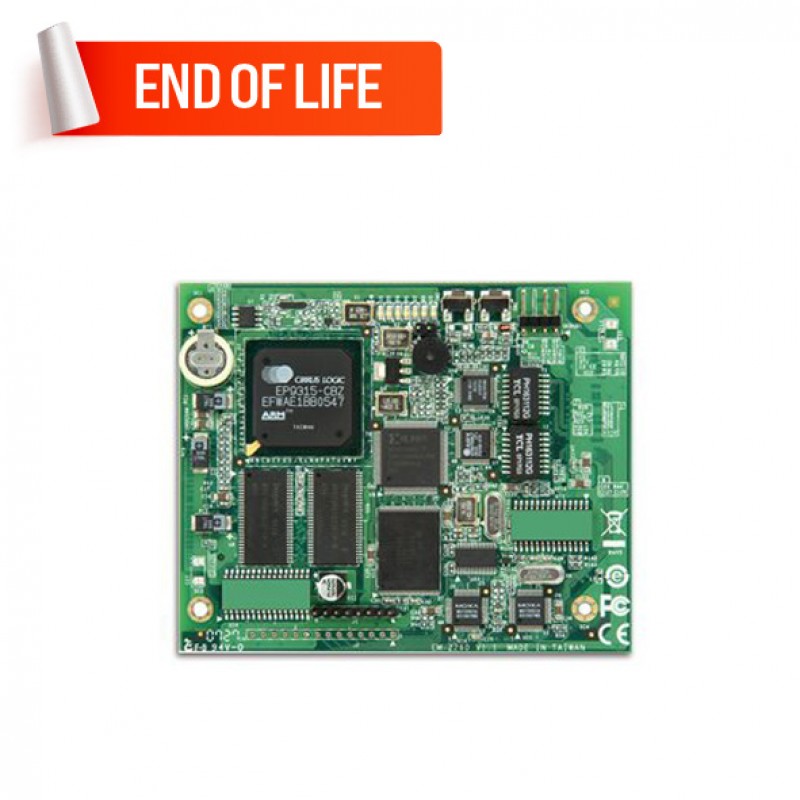

MOXA EM-2260-CE Arm-based Industrial Computer-On-Module
- CPU Cirrus EP9315 Arm9, 200 MHz
- Ready-to-run Microsoft Windows CE 6.0 platform
- Onboard 128 MB SDRAM and 32 MB NOR Flash
- 2 x 10/100 Mbps Ethernet ports
- 4 x RS-232/422/485 Serial ports
- 8 x Digital inputs and 8 x Digital outputs
- 12 VDC input power range
- -10 to 60°C operating temperature range
Description
The EM-2260 embedded module features 4 RS-232/422/485 serial
ports, dual Ethernet ports, and an Enhanced Integrated Drive Electronics (EIDE)
interface for designing an external storage connection, such as a CompactFlash
socket or USB port signals. The module has a compact design that is easily
integrated with a variety of industrial applications, including gas stations,
vending machines, and ticketing machines and offers a powerful serial
communication capability for better system integration. Programmers will find the
preinstalled, ready-to-run Windows CE 6.0 platform and full-function
development kit a great benefit when developing software and building reliable
communication bases for industrial automation applications.
The EM-2260 embedded module uses the Cirrus Logic EP9315
Arm9, 32-bit, 200 MHz RISC CPU. This powerful computing engine supports several
useful communication functions, but will not generate a lot of heat. The
built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run
your application software directly on the EM-2260. With its built-in VGA output
interface, the EM-2260 is suitable for use with SCADA systems in industrial
applications, such as manufacturing automation, production line process
monitoring, and mining automation, that require VGA and HMI features.
The EM-2260 Development Kit provides users with a handy tool for first-time evaluation to test the functionality of the embedded core module. It has several peripherals built-in, including RS-232/422/485 ports and digital input and output, making it suitable for developing a variety of industrial applications.
End of Life Product - No Replacement
Please note that the EM-2260 Series has been phased out. You can explore the UC-2100 Series, UC-3100 Series, and UC-5100 Series in the RISC Computers.
You can Buy the MOXA EM-2260-CE Arm-based Industrial Computer-On-Module via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| INTERFACE | |
|---|---|
| Ports | 2 x Auto-sensing 10/100 Mbps Ethernet ports , 4 x RS-232/422/485 Serial ports, 8 x Digital inputs and 8 x Digital outputs (3.3 V, CMOS level), 1 x 4-pin header to DB9 console port |
| Connector | RJ45, DB9 |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | Input Voltage: 12 VDC; Input Current: 480 mA @ 12 VAC; Power Consumption: 5.8 W |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 106 x 87 mm (4.17 x 3.43 in) |
| Weight | 70 g (0.16 lb) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 80°C (-4 to 176°F) |
| Ambient Relative Humidity | - |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3, CISPR 32, FCC Part 15B Class A; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard |
| MTBF | 131,832 hrs |
