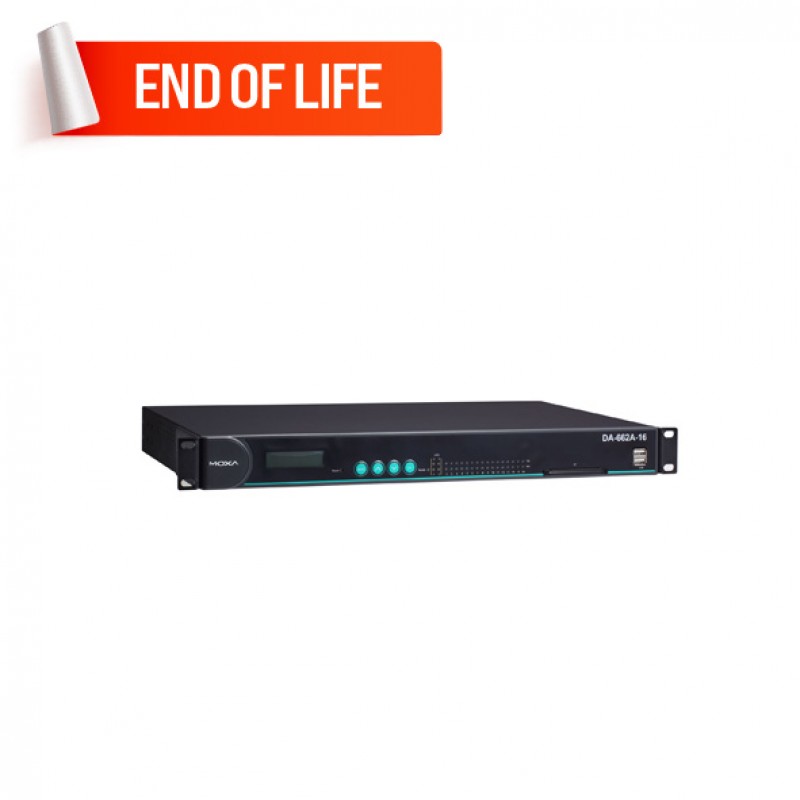

MOXA DA-662A-16-LX Rackmount Industrial Computer
- CPU MoxaMacro 500 MHz
- Ready-to-run Linux OS platform
- 4 x 10/100 Mbps Ethernet ports
- 16 x RS-232/422/485 Serial ports
- Standard 19-inch rackmount installation
- Wide-range 100 to 240 VAC power input
- -10 to 60°C operating temperature range
Description
The DA-660A Series Arm-based, ready-to-run embedded
computers are designed for industrial data-acquisition applications. The
computers have 8 to 16 RS-232/422/485 serial ports, 4 Ethernet ports, and 2 USB
2.0 ports, all based on the MoxaMacro communication processor. In addition, the
DA-662A-I-8/16-LX’s serial ports come with high-level interference protection.
The housing is a standard 1U, 19-inch wide rack-mountable rugged enclosure. The
robust, rack-mountable mechanism design provides the hardened protection needed
for industrial environment applications and makes it easy for users to install
the DA-660A computers on a standard 19-inch rackmount.
The DA-660A computers are ideal for applications that require distributed embedded technology, such as SCADA systems, plant-floor automation, and power electricity monitoring applications.
End of Life Product - No Replacement
Please note that the DA-660A Series has been phased out. You can explore the UC-2100 Series, UC-3100 Series, and UC-5100 Series in the RISC Computers.
You can explore our wide range of products and enquire about
the MOXA DA-662A-16-LX Rackmount Industrial Computer for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai,
UAE, Saudi Arabia, Oman, and the Middle East.
Specification
| Computer | |
|---|---|
| CPU | MoxaMacro 500 MHz |
| Supported OS | Linux |
| OS (pre-installed) | Linux |
| System Memory | SDRAM: 128 MB; Flash: NOR Flash, 32 MB |
| Graphics Controller | - |
| Storage Slot | USB and CF slots |
| Interface | |
| LAN | 4 x Auto-sensing 10/100 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Digital Input/Output Channels | - |
| Serial Ports | 16 x RS-232/422/485 |
| USB | 2 x USB 2.0 Ports |
| Expansion Slot | - |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | System Ready x 1 |
| LAN | - |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 100 to 240 VAC |
| Input Current | - |
| Power Consumption | 20 W |
| General | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT |
| MTBF | 177,580 hrs |
| Physical Characteristics | |
| Dimensions | 480 x 45 x 237 mm (18.9 x 1.77 x 9.33 in) |
| Housing | Rugged Enclosure |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 70°C (-4 to -158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 60950-1; EMC: EN 61000-6-2/-6-4; EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 3 V/m, IEC 61000-4-8: 1 A/m, IEC 61000-4-11; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard |
| Weight | 4.3kg |
| Mounting | 19-inch rackmount |
