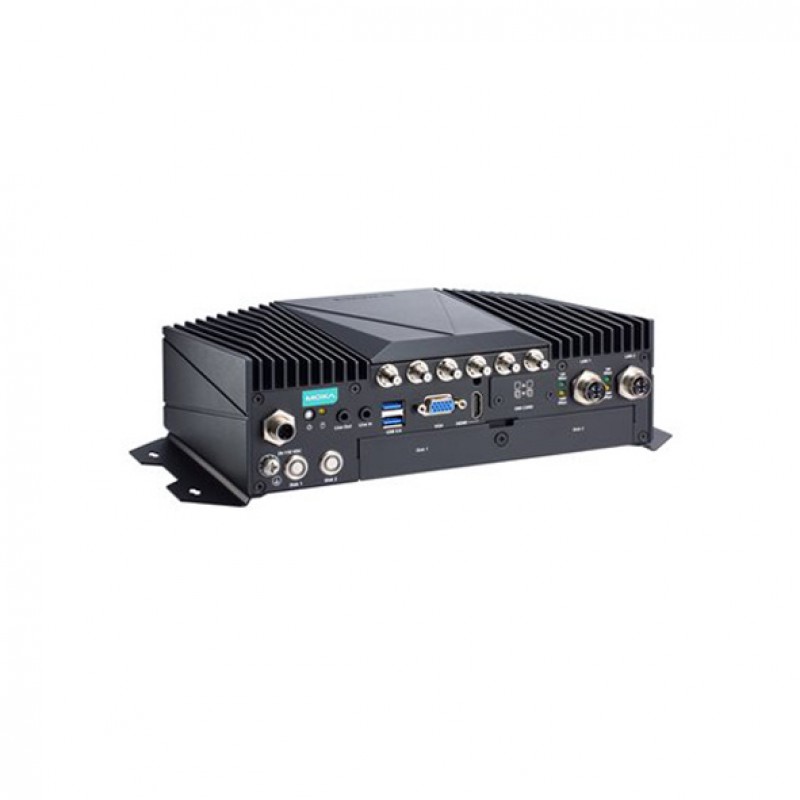

MOXA V2406C-KL5-T Wide Temperature Computer
- CPU: Intel® Core™ i5-7300U
- 2 x 10/100/1000 Mbps Ethernet ports
- 4 x RS-232/422/485 Serial ports
- 24 to 110 VDC input power range
- Wallmount installation design
- IP20-rated Aluminum body
- -40 to 70°C operating temperature range
Description
The V2406C Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 32 GB RAM, one mSATA slot, and two hot-swappable HDD/SSD for storage expansion. The computers are compliant with EN 50155:2017 and EN 50121-4 standards covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for railway onboard and wayside applications.
For connecting with onboard and wayside systems and devices, V2406C computers are equipped with a rich set of interfaces including 2 Gigabit Ethernet ports, 4 RS-232/422/485 serial ports, 6 DIs, 2 DOs, and 4 USB 3.0 ports. In addition, the V2406C computers provide 1 VGA video output and 1 HDMI output with 4K resolution support.
For reliable connectivity in train-to-ground (T2G) applications, the computers are provided with 2 mPCIe wireless expansion slots and 4 SIM-card slots. This helps establish redundant LTE/Wi-Fi connectivity, ensuring solid bidirectional communications between a fast-moving train and the wayside applications. In addition, the preinstalled QMA cable for wireless modules can help reduce assembly efforts and ensure low RF leakage.
You can also find the V2406C-KL7-T, V2406C-KL1-T, and V2406C-KL3-T models in the Wide Temperature Computers.
Enjoy the ease of online inquiries for the MOXA V2406C-KL5-T
Wide Temperature Computer. You can submit your inquiry on our website and get
the most friendly communication with our experts to choose high-quality
industrial automation products at a reasonable price from our Middle East
branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i5-7300U processor (3M Cache, 2.6 GHz) |
| Supported OS | Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Windows 10 Embedded IoT Ent 2021 LTSC 64-bit, Debian 9 (kernel 4.9) |
| OS (pre-installed) | - |
| System Memory | 32 GB max |
| Graphics Controller | Intel® HD Graphics 620 |
| Storage Slot | 2.5-inch HDD/SSD slots x 2, mSATA slots x 1 |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 6 x Digital inputs, 2 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 4 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 4 x USB 3.0 hosts, type-A connectors |
| Expansion Slot | mPCIe slots x 2 |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 24 to 110 VDC |
| Input Current | - |
| Power Consumption | 70 W (max.) |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 382,506 hrs |
| Physical Characteristics | |
| Dimensions | 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in) |
| Housing | Aluminum |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway Fire Protection: EN 45545-2; EMC: EN 55032/35; Safety: EN 62368-1, IEC 62368-1, UL 62368-1; Railway: EN 50121-4, EN 50121-3-2, EN 50155:2017; Shock: IEC 60068-2-27, IEC 61373; Vibration: IEC 60068-2-64, IEC 61373; Green Product: RoHS, CRoHS, WEEE; IP20; Telcordia (Bellcore), GB |
| Weight | 2,700 g (5.95 lb) |
| Mounting | Wall mounting (standard) |
