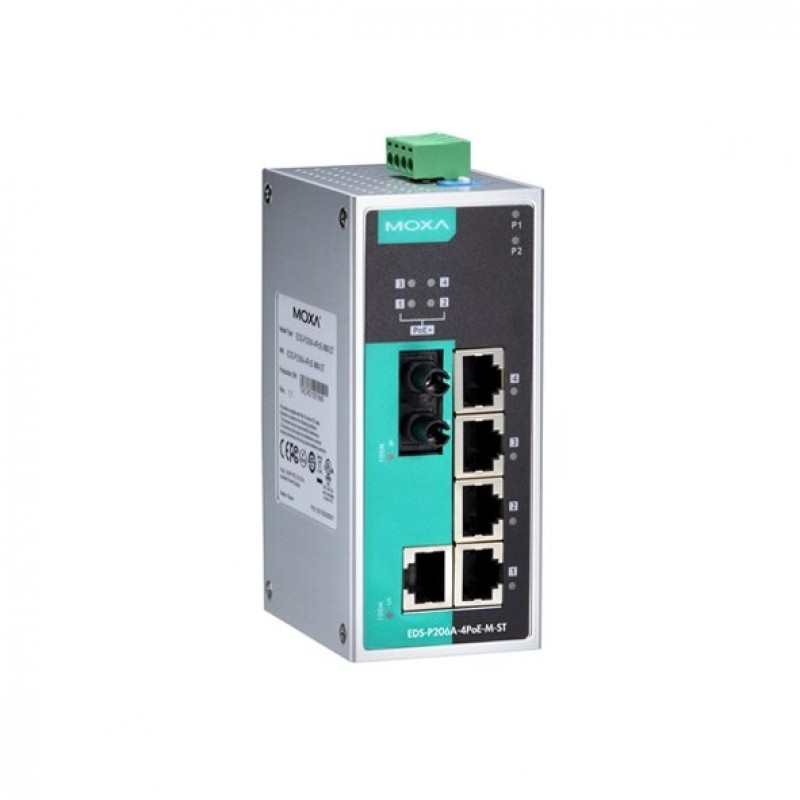

MOXA EDS-P206A-4PoE-M-ST-T Unmanaged Ethernet Switches

4 x 10/100Mbps PoE ports (RJ45 connector)
1 x 10/100Mbps ports (RJ45 connector)
1 x 100BaseFX (multi-mode ST connector)
DIN-rail and Wall mounting
IP30-rated metal housing
5 KM Data transmission typical distance on fiber
12/24/48 VDC Redundant dual power inputs
-40 to 75°C operating temperature

Brand: MOXA
Product Code: EDS-P206A-4PoE-M-ST-T

Description

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

You can also find the EDS-P206A-4PoE-MM-SC-T, EDS-P206A-4PoE-M-ST-T, and EDS-P206A-4PoE-M-SC models in the DIN-Rail Ethernet Switches.

Enjoy the ease of online inquiries for the MOXA EDS-P206A-4PoE-M-ST-T Unmanaged Ethernet Switches. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports	6 Ports
10/100Mb RJ45 (Megabit) Ports	: 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports	: 1 Port (ST connector)
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Ports	: 4 Ports (RJ45 connector)
10/100/1000Mb (Gigabit) POE Ports
Other ports
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current	5.55 A @ 24 VDC
Power Input Plugin ( Redundant )
Input Voltage	12/24/48 VDC
Operating Voltage	12 to 57 VDC
Power Consumption	Max. 13.2 W full loading without PDs’ consumption
General
Fan / Fanless	Fanless
MTBF	1,289,258 hrs
Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	UnManaged
Port Aggregation
Physical Characteristics
Dimensions	50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 55032/24; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	375 g (0.83 lb)
Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
Package Checklist
Hardware installation guide
Power adapter
Power cable
