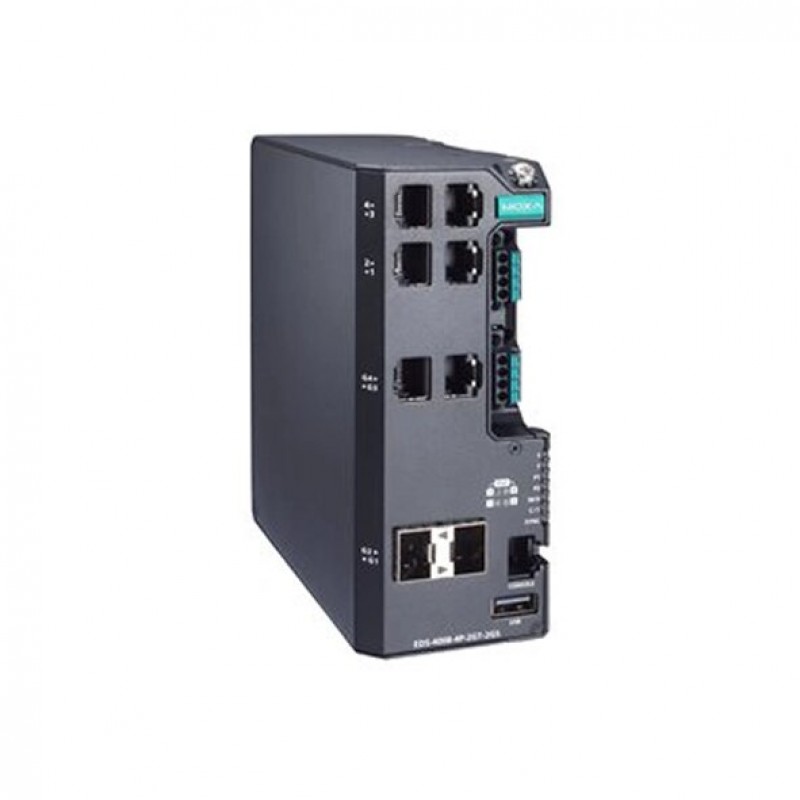

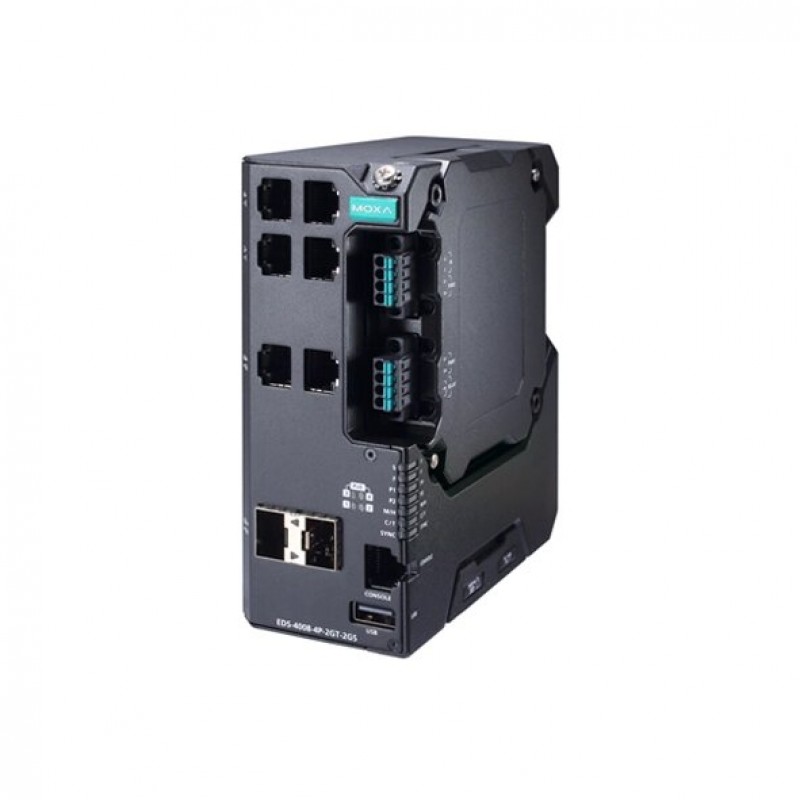

MOXA EDS-4008-4P-2GT-2GS-LVA Managed Ethernet Switch
4 x PoE Ports (10/100BaseT(X), RJ45 connector)
2 x
10/100/1000BaseT(X) Ports (RJ45 connector)
2 x
100/1000BaseSFP Slots48 VDC Redundant dual power inputs
Pre-installed PWR-101-LV-BP-I Power Module
DIN-rail and wall mounting
IP40-rated Metal body design
-10 to 60°C operating temperature
.png)
Description
The EDS-4008 Series is a range of 8-port managed Fast
Ethernet switches with the option for four 1 Gbps uplink ports or two 100M
ST/SC fiber-optic ports. This Series also offers models with four
10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet
PoE port options to connect high-bandwidth PoE devices.
The EDS-4008 Series is compliant with the IEC 62443-4-2 and
IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product
security and secure development life-cycle requirements, helping our customers
meet the compliance requirements of secure industrial network design.
You can also find the EDS-4008-LV, EDS-4008-2MSC-HV, and
EDS-4008-2MST-HV models in the DIN-Rail Ethernet Switches.
Explore our extensive range of industrial automation
products such as MOXA EDS-4008-4P-2GT-2GS-LVA Managed Ethernet Switch in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time
delivery service. Our sales experts will contact you to fulfill all your
industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 2 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 2 ports |
| 10/100Mb (Megabit) POE Ports | : 4 ports |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Features and capabilities | |
| Backup | : ABC-02 and ABC-03 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 48 VDC, 5.42 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 48 VDC |
| Operating Voltage | 44 to 57 VDC (> 52 VDC for PoE+ output recommended) |
| Power Consumption | Without PoE: 11.22 W, With PoE: Max. 240 W for total PD power consumption @ 48 VDC input |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 923,670 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 55 x 140 x 122.5 mm (2.2 x 5.51 x 4.82 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: DNV, ABS, NK, LR; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Hazardous Locations: ATEX, IECEx, Class I Division 2; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 840 g (1.85 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
| Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
