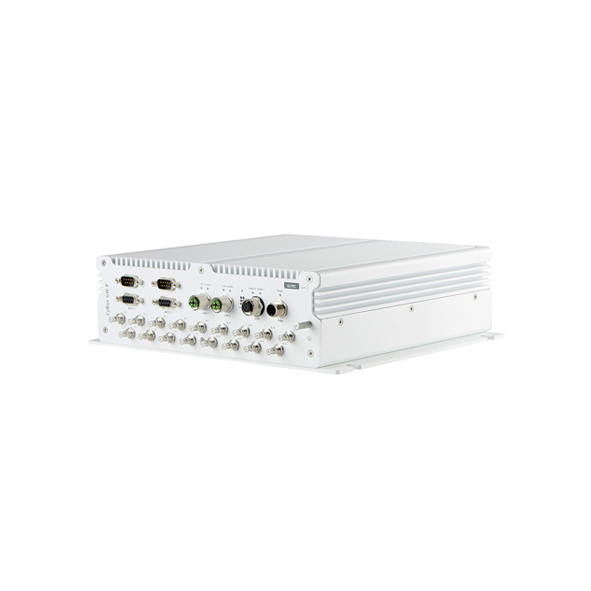

Westermo CyBox GW-P Mobile Wireless Gateway

Westermo CyBox GW-P Mobile Wireless Gateway
Westermo CyBox GW-P Mobile Wireless Gateway
Westermo CyBox GW-P Mobile Wireless Gateway
Westermo CyBox GW-P Mobile Wireless Gateway
Westermo CyBox GW-P Mobile Wireless Gateway

  • 3 x 3 MIMO with up to 1300 Mbps
  • Up to 5 x LTE and up to 2 x Wi-Fi 11ac interfaces
  • 4 x SIM card slots for each LTE interface
  • 2 x 1 Gbps Ethernet ports (M12 connectors)
  • 1 x USB/Serial Port (USB 2.0, RS232, M12 A-coded)
  • IP40-rated aluminum body and wall mounting
  • Ultra-wide-range power supply 24 to 110 VDC
  •  -40 °C to +70 °C operating temperature

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 95% RH, non-condensing)
  • IP protection (IP40)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA AWK-1121-US Wireless Client
Quickview
MOXA AWK-1121-US Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU Wireless AP/Client
Quickview
MOXA AWK-1131A-EU Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU-T Wireless AP/Client
Quickview
MOXA AWK-1131A-EU-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP Wireless AP/Client
Quickview
MOXA AWK-1131A-JP Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP-T Wireless AP/Client
Quickview
MOXA AWK-1131A-JP-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US Wireless AP/Client
Quickview
MOXA AWK-1131A-US Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US-T Wireless AP/Client
Quickview
MOXA AWK-1131A-US-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1137C-EU Wireless Client
Quickview
MOXA AWK-1137C-EU Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Wireless Communications , Industrial Wireless AP/Bridge/Client , WLAN APs/Bridges/Clients , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Routers , Railway Transportation Products , Access Point , Westermo CyBox GW-P

The CyBox GW-P is a robust wireless communication gateway for railway applications. It offers stable, secure, and broadband LTE connections for train-to-ground communication and high-speed internet. The device hosts multiple LTE interfaces for parallel LTE channel use and thus maximizes throughput, multiple Wi-Fi interfaces to connect to client devices such as mobile phones, as well as dual Gigabit Ethernet ports to attach the device to a backbone network. Country-specific LTE/Wi-Fi standards are adopted for worldwide use in every type of train.

There is mounting space for up to five radio modules within the CyBox GW-P. The radios can operate in different standards, including LTE and its predecessors. Each LTE module can be provided with up to four SIM cards for optimal net coverage and maximum provider flexibility. The Wi-Fi interfaces allow for connecting clients at high data rates on each interface. To provide the CyBox GW-P with internal storage, a mounting space for an M.2 solid state drive is supplied. It can be used for local content or data storage.

The CyBox GW-P firmware provides a convenient management interface via a web service. Besides global setup parameters, the open-source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point and router configurations as well as the management firmware, can be updated remotely. Furthermore, the built-in, fully configurable stateful firewall and multi-VPN support with hardware-accelerated encryption ensure communication security.



You can also find the CyBox GW 2-P, CyBox LTE 2-W, CyBox RT 2-A, and CyBox RT 3-W models in the Wireless Routers.


Enjoy the ease of online inquiries for the Westermo CyBox GW-P Mobile Wireless Gateway. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot Yes : Up to 4 SIM cards per LTE interface
Ethernet Ports Yes : 2 x 10/100/1000BaseT(X), M12 X-coded
USB Yes : 1 x USB 2.0 Port (M12 8-pin female A-coded connector)
Digital Input and Output No
Serial port Yes : 1 x RS232 Port (M12 8-pin female A-coded connector)
Alert Output No
Band Options 4G (LTE) Bands: B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42,, B43; 3G Bands: B1, B5, B8
Cellular Standards 4G (LTE Cat-7), 3G
Cellular Antenna Connectors 11 x or 13 x QLS connectors, with optional QLS-to-SMA adapters
WLAN Standards IEEE 802.11 a/b/g/n/ac (Wi-Fi 5)
WLAN Antenna Connector 3 x RF antennas (3 x 3 MU-MIMO technology)
GPS Antenna Connector Yes
3g modem : Radio specifications
Radio Connection type Up to 5 x LTE Cat-7 interfaces (channel-bundled WAN)
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G up to 300 Mbps download / 150 Mbps upload
WiFi Radio Frequency 2.412 GHz to 2.472 GHz, or 4.920 GHz to 5.825 GHz, selectable band
3g modem : Software Specifications
Routing Redundancy No
VPN Multi-VPN support, hardware-accelerated encryption
Firewall Stateful firewall with multi-level client isolation
Time Management No
Management No
3g modem : General
LED Indicators Power LED Status, Status LED 1, Status LED 2, Module 1-5 LED Status, LAN LED Status
MTBF approx. ~180.000 h (acc. to IEC 62380)
Operating mode Access Point, Router
3g modem : Standards and protocols
Protocols NMEA, RTCM 104 (GNSS)
3g modem : Features and capabilities
Send and receive SMS No
3g modem : Security
Security and Encryption Encryption: AES, TKIP, WPA, WPA2, WPA3
Authentication No
3g modem : Power Requirements
Power Connector M12 4-pin male A-coded
Power Consumption (Output Adapter) 36/46 W typical, 40/50 W max
Input Voltage 24 to 110 VDC, wide-range power supply (compliant to EN 50155)
POE Support No
Input Current No
Reverse Polarity Protection No
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation Wall Mounting
Dimensions 251 (284) mm x 76 mm x 246 mm (w h d) (incl. mounting points)
Housing IP40, aluminum, conductive cooling
Weight up to 4250 g
Operating Temperature depending on temperature class of Wi-Fi module, Class OT4, -40.. +70 °C (85 °C) operating or, Class OT3, -25.. +70 °C (85 °C) operating
Storage Humidity max. 95 % non-condensing operating and storage
Storage Temperature -40 to +85 °C
Type of Use Railway applications
Standards and Certifications Directive (EU) 2016/797: EN 50155 (IEC 60571), EN 45545-2 (HL 1 to HL 3), EN 61373 (Category 1, Class B); RED – 2014/53/EU: EMC, radio spectrum, health & safety; IP40; IEC 62380
