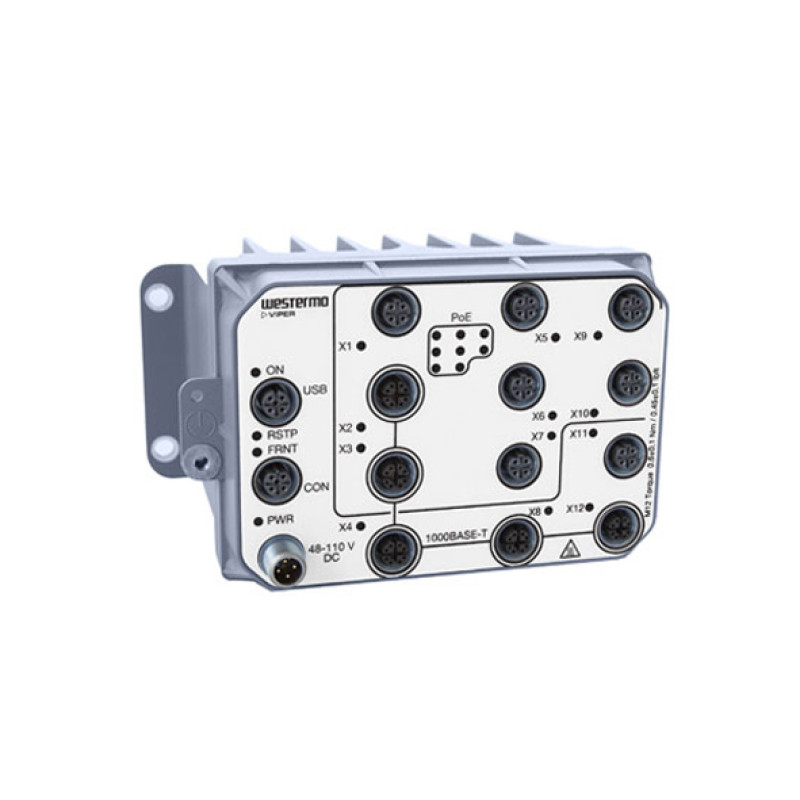

Westermo Viper-112A-T5G-P8-HV Managed Ethernet Switch
- EN 50155 Managed Gbps PoE Switch
- 5 x Gbps ports, whereof 2 PoE
- 7 x 100 Mbps ports, whereof 6 PoE
- 1 x USB
- 1 x RS-232 console port
- Brand: WESTERMO
- Product Code: Viper-112A-T5G-P8-HV
Description
The Viper-112A-T5G-P8-HV is a managed 12-port switch optimized for the needs of the railway rolling stock market. PoE ports offer effective powering of end-devices.
The Viper is designed to withstand the tough environment on-board trains, exposing the switch to constant vibration, extreme temperatures, humidity, and a demanding electrical environment.
A GORE-TEX® membrane prevents internal condensation. Threading integrated into chassis provides for additional vibration resistance. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and flashover. IP67 protection prevents the ingress of water and dust. An overall optimized design results in an extremely compact package in combination with very high MTBF for easy integration and low lifecycle cost.
Thorough type testing at independent labs certifies the compliance to a wide range of standards, not least EN 50155, where the highest class is achieved in all aspects. The state-of-the-art Westermo production facility ensures the quality of each individual unit, e.g. through temperature cycling burn-in testing.
The WeOS operating system offers an extensive suite of IP networking features for resilient and flexible networks, e.g. the FRNT ring protocol with very fast failover on 100 Mbps as well as Gbps ports. The backup device accessory matches the Viper in robustness and offers easy configuration update and backup.
Meeting the requirements of the railcar market, the Viper is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining industry.
You can place an order for the Westermo Viper-112A-T5G-P8-HV Managed Ethernet Switch, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Interface | |
---|---|
Number of ports | 14 Ports |
10/100Mb RJ45 (Megabit) Ports | |
10/100/1000Mb RJ45 (Gigabit) Ports | |
100Mb Fiber optic multi mode (Megabit) Ports | |
100Mb Fiber optic single mode (Megabit) Ports | |
1000Mb SFP Fiber optic (Gigabit) Ports | |
10/100Mb (Megabit) POE Prots | : 6 M12 Ports |
100Mb SFP Fiber optic (Megabit) Ports | |
10/100/1000Mb (Gigabit) POE Ports | : 2 M12 Ports |
M12 port | : 1 10/100Mbps ports and 3 10/100/1000Mbps ports |
Serial port | : 1 Console port with RS-232 standard |
USB | : 1 USB 2.0 port with M12 female A-code connector |
Features and capabilities | |
Backup | |
LED Indicators | |
LED Per Port | |
Power | |
Power Requirements | |
Maximum power consumption | - |
Power Consumption (Output Adapter) | 48V DC, 2.4A and 110V DC, 1A |
Power Input Plugin ( Redundant ) | - |
General | |
Fan / Fanless | |
MTBF | 392,000 hours |
Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | |
Physical Characteristics | |
Dimensions | 178 x 100 x 110mm |
Housing | - |
Installation | Railway applications, Railway vehicles |
Operating Temperature | -40 to 70 ° C |
Operation Humidity | 5% to 95% RH |
Standards and Certifications | EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-3-2/IEC 62236-3-2 Railway applications – Rolling stock – apparatus, Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio), Tested and verified for FCC part 15 EN 61373 category 1, class A and B, EN 60068-2-27 20 g, 11 ms and 100 g, 6 ms, IP67 |
Storage Humidity | 5% to 95% RH |
Storage Temperature | -55 to 85 ° C |
Weight | 1.7Kg |
Standards and protocols | |
Protocols and work standards | IEC/ISO 17025, DHCP, FRNT |
Protocols and management standards | - |
Package Checklist | |
Hardware installation guide | |
Power adapter | |
Power cable |
